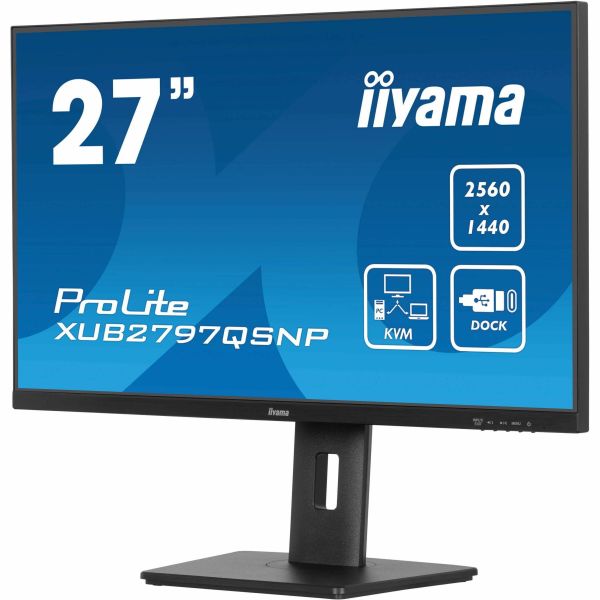

iiyama ProLite XUB2797QSNP-B1 Widescreen LED Monitor

Marketing Information

27'' WQHD IPS technology panel with RJ45 (LAN), KVM Switch and USB-C Dock with 95W power delivery

Discover the XUB2797QSNP, a 27'' WQHD IPS panel equipped with USB-C dock, KVM switch, and RJ45 for LAN connectivity. The KVM switch allows to connect multiple computers through a single console. Get rid of cable clutter with the USB-C dock that carries all data (audio and video) whilst powering your notebook. Easily extend your desktop by creating a dual-monitor set-up with the DisplayPort output. Enjoy accurate colours and wide viewing angles thanks to the IPS panel. Benefit from exceptional performance for tasks like photography and web design, thanks to the WQHD resolution and high contrast. The ergonomic stand offers a height ...adjustment of 150mm and tilt/swivel mechanisms for portrait mode, optimizing comfort while working with extensive data sheets

USB-C Dock

The dock allows you to connect your laptop with a single cable to the monitor to both make sure it is charged and connected to a wired network and signal from the laptop is sent to the monitor. A second monitor can be connected to the DisplayPort (MST) output to create a multi-monitor set-up. With additional USB-ports, your mouse, keyboard or webcam can also be connected to the monitor. All thanks to a single cable connecting your laptop to the USB C dock in the monitor.

KVM SWITCH

Having a monitor with a KVM switch allows you to share the devices connected via USB to your monitor with two different PCs. Just change the signal input in the OSD menu of the monitor and your keyboard, mouse and webcam will switch from your work laptop to your gaming PC.

IPS TECHNOLOGY

IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.

WQHD

With true WQHD 2560 x 1440p resolution your monitor is ready to display high definition images. This means you can accommodate more information on your screen, i.e. over 76% more in comparison to a 1920 x 1080 monitor.

FLICKER-FREE + BLUE LIGHT

The ultimate solution for the comfort and health of your eyes. Flicker-free monitors with the blue light reducer function substantially reduce the strain and fatigue caused by flickering and blue light emittance of regular monitors.

SPEAKERS

This LED monitor is equipped with two high quality stereo speakers.

Specifications
Manufacturer: iiyama North America, Inc
Manufacturer Part Number: XUB2797QSNP-B1
Manufacturer Website Address: http://www.iiyama.co.uk
Brand Name: iiyama
Product Line: ProLite
Product Model: XUB2797QSNP-B1
Product Name: ProLite XUB2797QSNP-B1 Widescreen LED Monitor
Product Type: LED Monitor
Technical Information
Number of Screens: 1
Screen Size Class: 27"
Viewable Screen Size: 68.6 cm (27")
Screen Mode: WQHD
Panel Technology: In-plane Switching (IPS) Technology
Response Time: 1 ms
Response Time Details: 1ms MPRT
Aspect Ratio: 16:9
Pixel Pitch: 0.23300 mm x 0.23300 mm
Horizontal Viewing Angle: 178°
Vertical Viewing Angle: 178°
Mount Type:

• Desk Mountable
• Arm-mountable

Backlight Technology: LED
HDCP Supported: Yes
Features:

• Blue Light Reduction
• Flicker-free
• Cable Lock Slot
• On-screen Display (OSD)
• sRGB
• Cable Management
• i-Style-Color
• Wide Viewing Angle
• Dual Monitor Support
• Low Blue Light
• 3-sided Bezel Less
• Display Data Channel/Command Interface (DDC/CI)
• MultiScreen

Horizontal Frequency: 30 kHz to 151 kHz
Stand Adjustments:

• Height
• Pivot
• Swivel
• Tilt

Active Display Area (H x V): 596.70 mm x 335.70 mm
Video
Maximum Resolution: 2560 x 1440
Standard Refresh Rate: 100 Hz
Colour Supported: 16.7 Million Colours
Native Contrast Ratio: 1,300:1
Dynamic Contrast Ratio: 80,000,000:1
Brightness: 300 cd/m²
Tearing Prevention Technology: Adaptive Sync
Color Gamut:

• 99% sRGB
• 72% NTSC

Audio
Number of Speakers: 2
Speakers: Yes
Interfaces/Ports
Network (RJ-45): Yes
HDMI: Yes
HDMI Version: 2.0
USB: Yes
DisplayPort: Yes
USB Type-C: Yes
Number of HDMI Inputs: 1
Total Number of HDMI Ports: 1
Number of USB Ports: 6
Number of DisplayPorts: 2
Total Number of USB Type-C Ports: 3
Number of USB 3.2 (Gen 1) Ports: 3
Built-in Devices
Built-in Devices:

• USB Hub
• KVM Switch

Power Description
Operating Power Consumption: 26 W
Standby Power Consumption: 500 mW
Off-Mode Power Consumption: 300 mW
Frequency:

• 50 Hz
• 60 Hz

Physical Characteristics
VESA Mount Compatible: Yes
VESA Mount Standard: 100 x 100
Color Family: Black
Colour: Matte Black
Height: 364 mm
Width: 613.5 mm
Depth: 47.5 mm
Height with Stand: 550.50 mm
Width with Stand: 613.50 mm
Depth with Stand: 209.50 mm
Weight (Approximate): 6.10 kg
Miscellaneous
Package Contents:

• ProLite XUB2797QSNP-B1 Widescreen LED Monitor
• Power Cable
• USB-C Cable
• HDMI Cable
• Displayport Cable
• Quick Start Guide
• Safety Guide

Energy Star: Yes
TCO Certified: Yes
Environmental Certification: Electronic Product Environmental Assessment Tool Silver (EPEAT Silver)
Energy Efficiency Compliance: Energy-related Products Directive (ErP)
Environmental Compliance:

• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
• Restriction of Hazardous Substances (RoHS)
• Waste Electrical and Electronic Equipment Directive (WEEE)

Warranty
Limited Warranty: 3 Year
