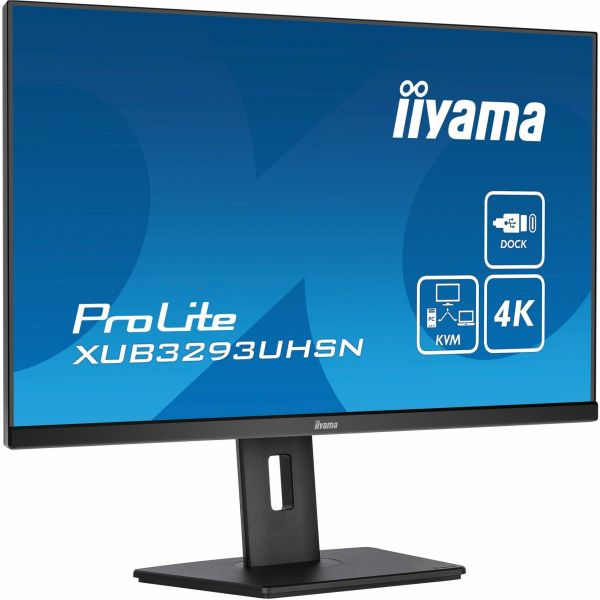

iiyama PROLITE XUB3293UHSN-B5 32'' IPS panel with KVM switch, USB-C dock and RJ45 (LAN)

Marketing Information

32'' IPS panel with KVM switch, USB-C dock and RJ45 (LAN)

Equipped with the KVM switch, the XUB3293UHSN allows you to connect multiple computers that can be operated over one console (monitor, keyboard, mouse). The USB-C dock provides a clean and practical workspace by using a single cable to both send the signal from your notebook to your monitor and power and charge the notebook from the monitor. Additionally, if your monitor is connected to the Internet with a LAN cable, your notebook will automatically be connected to the network as well. IPS panel guarantees wide viewing angles and natural, highly accurate colours.

KVM SWITCH

Having a monitor with a KVM switch allows you to share the devices connected v...ia USB to your monitor with two different PCs. Just change the signal input in the OSD menu of the monitor and your keyboard, mouse and webcam will switch from your work laptop to your gaming PC.

USB-C DOCK

The dock allows you to connect your laptop with a single cable to the monitor to both make sure it is charged and connected to a wired network and signal from the laptop is sent to the monitor. With additional USB-ports, your mouse, keyboard or webcam can also be connected to the monitor. All thanks to a single cable connecting your laptop* to the USB C dock in the monitor.

IPS TECHNOLOGY

IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.

FLICKER-FREE + BLUE LIGHT

The ultimate solution for the comfort and health of your eyes. Flicker-free monitors with the blue light reducer function substantially reduce the strain and fatigue caused by flickering and blue light emittance of regular monitors.

SPEAKERS AND HEADPHONES

Playing with friends? Use the integrated high-quality speakers. Don't want to disturb anybody? Plug your headset into the headphone socket and turn the volume up.

Specifications
Manufacturer: iiyama North America, Inc
Manufacturer Part Number: XUB3293UHSNB5
Manufacturer Website Address: http://www.iiyama.co.uk
Brand Name: iiyama
Product Line: ProLite
Product Model: XUB3293UHSN-B5
Product Name: PROLITE XUB3293UHSN-B5 32'' IPS panel with KVM switch, USB-C dock and RJ45 (LAN)
Product Type: LED Monitor
Technical Information
Number of Screens: 1
Screen Size Class: 32"
Viewable Screen Size: 80 cm (31.5")
Screen Mode: 4K UHD
Panel Technology: In-plane Switching (IPS) Technology
Response Time: 4 ms
Response Time Details: 4 ms GTG
Aspect Ratio: 16:9
Pixel Pitch: 0.18200 mm x 0.18200 mm
Horizontal Viewing Angle: 178°
Vertical Viewing Angle: 178°
Backlight Technology: LED
HDCP Supported: Yes
Features:

• Dual Monitor Support
• Wide Viewing Angle
• Flicker-free
• Low Blue Light
• On-screen Display (OSD)
• ComfortView
• Blue Light Reduction
• Ultra Slim
• Narrow Bezel
• sRGB
• i-Style-Color
• Cable Lock Slot
• Variable Picture Mode
• Eco Mode
• Super Sharpness
• Cable Management

Horizontal Frequency: 30 kHz to 135 kHz
Stand Adjustments:

• Height
• Swivel
• Tilt

Camera Resolution: 8.3 Megapixel
Video
Maximum Resolution: 3840 x 2160
Standard Refresh Rate: 60 Hz
Colour Supported: 1.07 Billion Colors
Native Contrast Ratio: 1,000:1
Dynamic Contrast Ratio: 80,000,000:1
Brightness: 350 cd/m²
Color Gamut:

• 99% sRGB
• 93% NTSC

Audio
Number of Speakers: 2
Speakers: Yes
Interfaces/Ports
Network (RJ-45): Yes
HDMI: Yes
USB: Yes
DisplayPort: Yes
USB Type-C: Yes
Number of HDMI Inputs: 1
Number of USB Ports: 3
Number of USB 3.0 Ports: 2
Number of DisplayPorts: 2
Total Number of USB Type-C Ports: 1
Built-in Devices
Built-in Devices:

• KVM Switch
• USB Hub

Webcam: Yes
Power Description
Frequency:

• 50 Hz
• 60 Hz

Physical Characteristics
VESA Mount Compatible: Yes
VESA Mount Standard: 100 x 100
Color Family: Black
Height with Stand: 602 mm
Width with Stand: 714 mm
Depth with Stand: 239.50 mm
Weight (Approximate): 9.90 kg
Miscellaneous
Package Contents:

• PROLITE XUB3293UHSN-B5 32'' IPS panel with KVM switch, USB-C dock and RJ45 (LAN)
• Power Cable
• USB Cable
• HDMI Cable
• DP Cable
• USB-C Cable
• Quick Start Guide
• Safety Guide

Energy Efficiency Compliance: Energy-related Products Directive (ErP)
Environmental Compliance:

• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
• Restriction of Hazardous Substances (RoHS)
• Waste Electrical and Electronic Equipment Directive (WEEE)

Warranty
Limited Warranty: 3 Year
