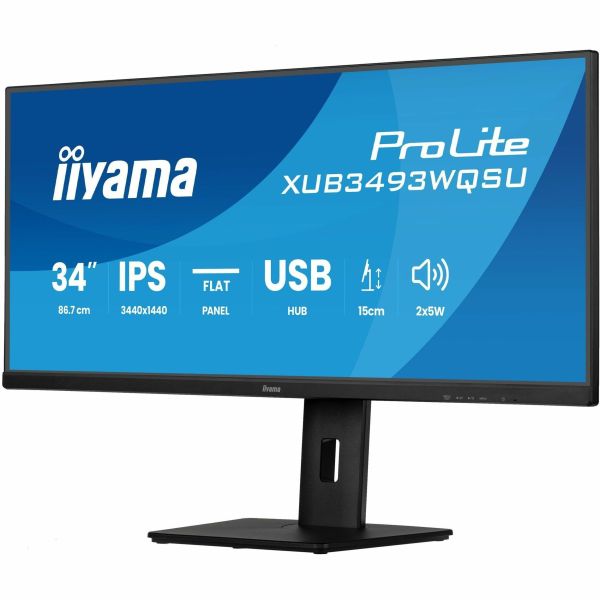

iiyama ProLite XUB3493WQSU-B6 Widescreen LED Monitor

Marketing Information

34" IPS ultra-wide flat screen with PiP, PBP and height adjustable stand

With a 21:9 UWQHD resolution, the ProLite XUB3493WQSU provides an extended desktop space ideal for working with multiple applications side by side. The IPS panel ensures accurate colour reproduction and wide viewing angles, suitable for both detailed work and media consumption. Equipped with Picture-in-Picture (PiP) and Picture-by-Picture (PbP) functionalities, the monitor allows you to display content from two different sources simultaneously. This is especially useful for professionals who need to monitor multiple systems or compare data across devices without the need for a second screen.

The 150 mm height-adjustable stand helps you maintain an er...gonomic posture, while flicker-free technology and a blue light reducer contribute to reduced eye fatigue. The XUB3493WQSU offers a practical and flexible solution for users who value efficiency, clarity, and comfort.

IPS Technology

IPS technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.

ULTRA WIDE - UWQHD

UWQHD (Ultra Wide QHD) resolution offers an ultra wide (21:9) viewable area.

PIP

PIP (Picture in Picture) function allows you to watch images coming from two different sources at the same time.

ACR

Contrast Ratio is a measurement of the difference between the darkest black and the brightest white your monitor can display. Advanced Contrast Ratio is a feature that automatically adjusts contrast and brightness of the screen to assure perfect picture quality while watching films and playing games.

Specifications
Manufacturer: iiyama North America, Inc
Manufacturer Part Number: XUB3493WQSU-B6
Manufacturer Website Address: http://www.iiyama.co.uk
Brand Name: iiyama
Product Line: ProLite
Product Model: XUB3493WQSU-B6
Product Name: ProLite XUB3493WQSU-B6 Widescreen LED Monitor
Product Type: LED Monitor
Technical Information
Number of Screens: 1
Screen Size Class: 34"
Viewable Screen Size: 86.4 cm (34")
Screen Mode: UW-QHD
Panel Technology: In-plane Switching (IPS) Technology
Response Time: 1 ms
Response Time Details: 1 ms MPRT
Aspect Ratio: 21:9
Pixel Pitch: 0.23300 mm x 0.23300 mm
Horizontal Viewing Angle: 178°
Vertical Viewing Angle: 178°
Mount Type: Desk Mountable
Backlight Technology: LED
HDCP Supported: Yes
Features:

• Blue Light Reduction
• sRGB
• Flicker-free
• High Dynamic Range (HDR)
• On-screen Display (OSD)
• X-Res Technology
• Color Temperature Selection
• i-Style-Color
• Cable Lock Slot
• Picture by Picture
• Picture in Picture
• Cable Management
• Wide Viewing Angle
• Ergonomic Design
• Eco Mode

Adjustable Stand: Yes
Stand Adjustments:

• Swivel
• Height
• Tilt

Active Display Area (H x V): 799.80 mm x 334.80 mm
Video
Maximum Resolution: 3440 x 1440
Standard Refresh Rate: 120 Hz
Colour Supported: 16.7 Million Colours (8-bit)
Native Contrast Ratio: 1,000:1
Dynamic Contrast Ratio: 80,000,000:1
Brightness: 400 cd/m²
Tearing Prevention Technology: Adaptive Sync/FreeSync
Color Gamut:

• 100% sRGB
• 74% NTSC

Audio
Number of Speakers: 2
Speakers: Yes
Interfaces/Ports
HDMI: Yes
HDMI Version: 2.0
USB: Yes
DisplayPort: Yes
USB Type-C: Yes
Total Number of HDMI Ports: 2
Number of USB Ports: 4
Number of DisplayPorts: 1
Total Number of USB Type-C Ports: 2
Number of HDMI 2.0 Ports: 2
Built-in Devices
Built-in Devices: USB Hub
Power Description
Standby Power Consumption: 500 mW
Off-Mode Power Consumption: 300 mW
Energy Efficiency Class (SDR) (from 1st March 2021): F
Energy Efficiency Class (HDR) (from 1st March 2021): G
ON Mode Energy Consumption per 1000Hour (SDR) (from 1st March 2021): 31 kW
ON Mode Energy Consumption per 1000Hour (HDR) (from 1st March 2021): 40 kW
Frequency:

• 50 Hz
• 60 Hz

Maximum Power Consumption: 44 W
Physical Characteristics
VESA Mount Compatible: Yes
VESA Mount Standard: 100 x 100
Color Family: Black
Product Color: Matte Black
Height: 367 mm
Width: 817 mm
Depth: 58.5 mm
Height with Stand: 572.50 mm
Width with Stand: 817 mm
Depth with Stand: 245.50 mm
Compressed Height with Stand: 428.50 mm
Extended Height with Stand: 572.50 mm
Weight (Approximate): 9.60 kg
Miscellaneous
Energy Efficiency Compliance: Energy-related Products Directive (ErP)
Environmental Compliance:

• Restriction of Hazardous Substances (RoHS)
• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
• Waste Electrical and Electronic Equipment Directive (WEEE)
