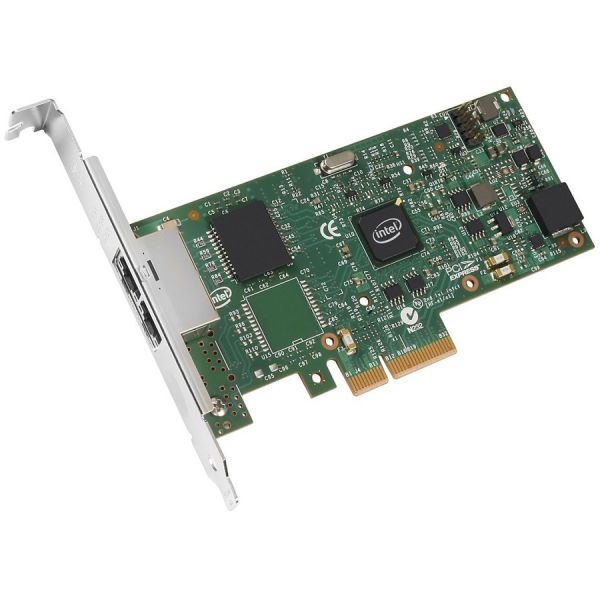

Intel Ethernet Server Adapter I350-T2

Marketing Information

Designed with the bridgeless Intel® Ethernet Controller I350, this 1GbE adapter delivers performance through industry leading enhancements for both virtualized and iSCSI networking environments.

A suite of hardware assists improves overall system performance by lowering the I/O overhead in virtualized environments. iSCSI simplifies SAN connectivity by eliminating the need for SAN- specific adapters or switches.

This adapter also includes power management technologies such as Energy Efficient Ethernet (EEE) and DMA Coalescing (DMAC). With advanced Power Management Technologies, customers can configure power options on the adapter and more effectively manage their power consumption.

The Intel® Ethernet I350 Serve...r Adapters includes these featured technologies:

Flexible I/O Virtualization

The Intel® Ethernet I350 adapters include Intel® Virtualization Technology for connectivity (Intel VT-c) to deliver I/O virtualization and Quality of Service (QoS) features designed directly into the I350 controller on the adapter. I/O virtualization advances network connectivity models used in today's servers to more efficient models by providing Flexible Port Partitioning (FPP), multiple Rx/Tx queues, and on-controller QoS functionality that can be used in both virtual and non-virtual server deployments.

By taking advantage of the PCI-SIG SR-IOV specification, Intel® Ethernet products enable Flexible Port Partitioning (FPP). With FPP, virtual controllers can be used by the Linux host directly and/or assigned to virtual machines. With this port partitioning, administrators can create up to eight dedicated networks on a single Ethernet port for use in baremetal and virtualized server deployments.

In a bare-metal Linux server, host processes can be assigned to dedicated network resources to provide traffic isolation and balanced bandwidth allocation.

In a virtualized environment, a VM can be assigned to a virtual controller to reduce the CPU overhead seen when using a software-based network bridge, by offloading network traffic management to the Ethernet controller silicon.

Scalable iSCSI Performance

iSCSI uses Ethernet to carry storage traffic, extending the familiarity and simplicity of Ethernet to storage networking, without the need for SAN-specific adapters or switches. Intel® Ethernet adapters, with built-in iSCSI initiators for Microsoft Windows, Linux, and VMware ESXi platforms, provide a simple, dependable, cost-effective way to connect to LANs and iSCSI SANs.

Intel® Ethernet adapters include hardware-based iSCSI acceleration features that do not require offloading to a proprietary TCP/IP stack. iSCSI acceleration uses large send offload, Receive Side Coalescing and transmit send offloads to help reduce latency and lower CPU utilization. To improve efficiency, MSI-X, Receive-side Scaling and Intel® Ethernet Flow Director, scale I/O processing across multiple CPU cores. Direct memory access (DMA), direct cache access (DCA) and header splitting improve network data processing efficiency, and data center bridging (DCB) supports multiple traffic classes that can be prioritized for iSCSI traffic.

These built-in initiators are broadly tested using multiple generations of operating systems, storage systems, and OS tools to help ensure reliability and ease of use. Standardizing on Intel Ethernet for iSCSI allows administrators to use a single initiator, TCP/IP stack, and a common set of management tools and IT policies.

Specifications
Manufacturer: Intel Corporation
Manufacturer Part Number: I350T2V2BLK
Manufacturer Website Address: http://www.intel.co.uk
Brand Name: Intel
Product Series: I350
Product Model: I350-T2
Product Name: Ethernet Server Adapter I350-T2
Package Type: Bulk
Product Type: Gigabit Ethernet Card
Technical Information
Chipset Manufacturer: Intel
Chipset Model: I350
Interfaces/Ports
Host Interface: PCI Express 2.1 x4
Total Number of Ports: 2
Network (RJ-45): Yes
USB: No
Serial Port: No
Ethernet AUI: No
XJACK: No
PoE (RJ-45) Port: No
Number of Network (RJ-45) Ports: 2
Media & Performance
Media Type Supported: Twisted Pair
Twisted Pair Cable Standard: Category 5e
Network & Communication
Network Technology: 10/100/1000Base-T
InfiniBand: No
Physical Characteristics
Card Height:

• Low-profile
• Full-height

Form Factor: Plug-in Card
Bracket Height: Full Height
Width: 68.8 mm
Depth: 135.4 mm
Miscellaneous
Application/Usage:

• Network
• Data Center

Device Supported: Server
Platform Supported: PC
