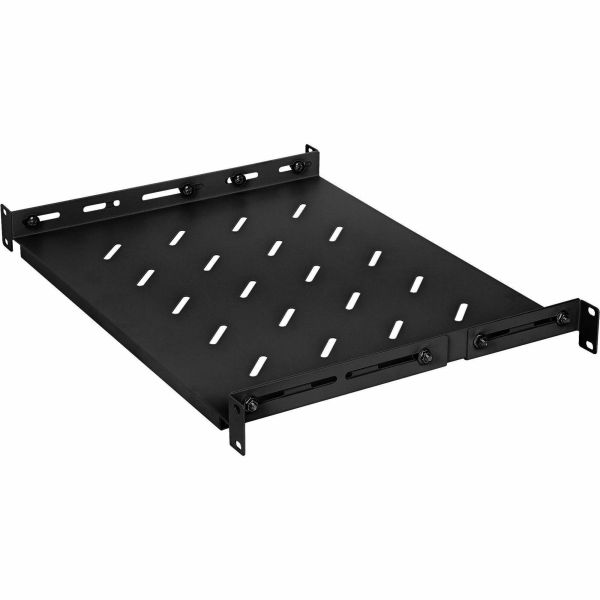

Intellinet 19" Shelf with Variable Rails for Fixed Mounting

Marketing Information

Rack mount shelf with depth-adjustable rails for universal flexibility in 19" network cabinets

A shelf with 4-point fixed rack mounting is superior to cantilever and sliding shelves in terms of stability and load capacity, but it's usually limited to a particular installation depth. This rack mount shelf from Intellinet Network Solutions overcomes that weakness with variable rails you can adjust to depths between 350 and 550 mm (13.8 to 21.7 in.). As a flexible network accessory, it universally fits Intellinet and other third-party cabinets that are 600 mm (23.6 in.) deep.

Features:

• Fixed shelf with extending rail depth of 350 to ...550 mm for flexible installations in cabinets with 600 mm depth
• Shelf storage area depth 350 mm
• Universal fit for most cabinet and open frame rack brands
• Maximum load capacity of 20 kg
• 1U installation height
• Sturdy steel sheet with antistatic powder coating
• Perforated for increased airflow to keep your equipment cool and prevent overheating
• Mounting material included
• Lifetime warranty

Specifications
Manufacturer: IC INTRACOM
Manufacturer Part Number: 714082
Manufacturer Website Address: http://www.icintracom.com
Brand Name: Intellinet
Product Name: 19" Shelf with Variable Rails for Fixed Mounting
Product Type: Rack Shelf
Technical Information
Application/Usage: Rack
Features:

• Adjustable Depth
• Powder Coated
• Perforated

Physical Characteristics
Form Factor: Rack-mountable
Color Family: Black
Product Color: Black
Product Material: Sheet Steel
Maximum Weight Capacity: 20 kg
Height: 44.5 mm
Width: 482.6 mm
Length: 550 mm
Weight (Approximate): 1.70 kg
Rack Height: 1U
Miscellaneous
Package Contents:

• 19" Shelf with Variable Rails for Fixed Mounting
• Installation material

Warranty
Limited Warranty: Lifetime
