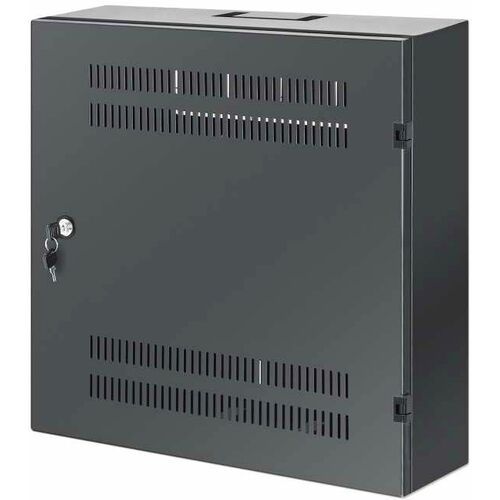

Intellinet Low-Profile 19" Wall Mount Cabinet with 4U Horizontal and 2U Vertical Rails

Marketing Information

Slim, space-saving wall-mount network enclosure rack for AV multimedia equipment and more

The Low-Profile 19" Wall Mount Cabinet with 4U Horizontal and 2U Vertical Rails from Intellinet Network Solutions is a slim rack enclosure for residential and SOHO environments. It organizes and secures network equipment from multimedia, surveillance, audio/video and home automation while saving valuable space with its hybrid of two mounting options.

Thanks to its compact depth, it only extends 170 mm (6.7 in.) from the wall, but its vertical mounting option means you can install even bulky equipment like network switches with a depth up to 280 mm (11 in.). The sturdy IP20-rated steel housing with antistatic powder coating can b...e locked with a secure three- point door lock to prevent damage, tampering or theft. It carries a load capacity up to 60 kg (132 lbs.), and ventilation slots ensure maximum airflow to keep your equipment cool. Your structured cabling can enter through pre-punched holes on the top, rear or bottom. Its fully assembled shipping condition saves you the trouble of putting it together.
Specifications
Manufacturer: IC INTRACOM
Manufacturer Part Number: 713689
Manufacturer Website Address: http://www.icintracom.com
Brand Name: Intellinet
Product Model: 713689
Product Name: Low-Profile 19" Wall Mount Cabinet with 4U Horizontal and 2U Vertical Rails
Product Type: Rack Cabinet
Technical Information
Rack Type: Enclosed Cabinet
Application/Usage: A/V Equipment
Features:

• Lockable
• Lockable Door
• Damage Resistant
• Tamper Resistant
• Anti-theft
• Vented

Physical Characteristics
Form Factor: Wall Mountable
Product Color: Black
Product Material: Steel
Static/Stationary Weight Capacity: 60 kg
Height: 540 mm
Width: 549.9 mm
Depth: 169.9 mm
Weight (Approximate): 8.50 kg
Rack Height: 4U
Rack Width: 482.60 mm
Rack Depth: 279.40 mm
Miscellaneous
Assembly Required: No
