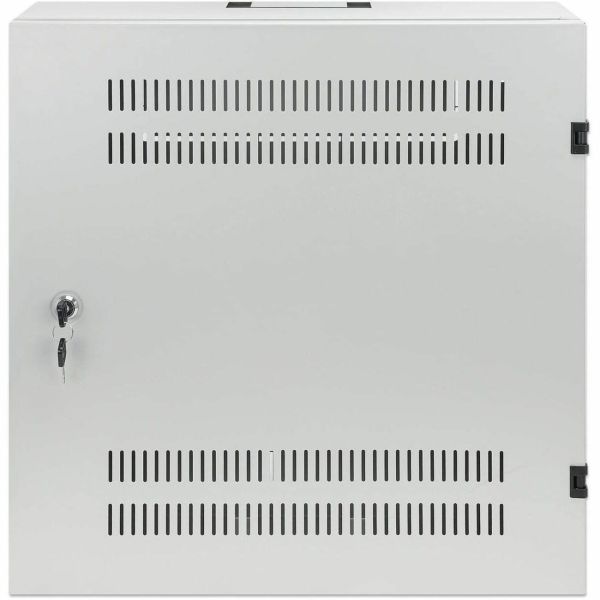

Intellinet Low-Profile 19" Wall Mount Cabinet with 4U Horizontal and 2U Vertical Rails

Marketing Information

Slim, space-saving wall-mount network enclosure rack for AV multimedia equipment and more

The Low-Profile 19" Wall Mount Cabinet with 4U Horizontal and 2U Vertical Rails from Intellinet Network Solutions is a slim rack enclosure for residential and SOHO environments. It organizes and secures network equipment from multimedia, surveillance, audio/video and home automation while saving valuable space with its hybrid of two mounting options.

Thanks to its compact depth, it only extends 170 mm (6.7 in.) from the wall, but its vertical mounting option means you can install even bulky equipment like network switches with a depth up to 280 mm (11 in.). The sturdy IP20-rated steel housing with antistatic powder coating can be lo...cked with a secure three-point door lock to prevent damage, tampering or theft. It carries a load capacity up to 60 kg (132 lbs.), and ventilation slots ensure maximum airflow to keep your equipment cool. Your structured cabling can enter through pre-punched holes on the top, rear or bottom. Its fully assembled shipping condition saves you the trouble of putting it together.

• Slim, space-saving design for organized, secure housing of network, multimedia, surveillance, audio/video and smart home equipment
• Horizontal 4U 19" rackmount option for PDUs, patch panels and other equipment with a depth up to 170 mm (6.7 in.)
• Vertical 2U 19" rackmount option for network switches and other equipment with a depth up to 280 mm (11 in.)
• Maximum load capacity of 60 kg (132 lbs.)
• Extends only 170 mm (6.7 in.) from the wall
• Sturdy, secure steel housing with antistatic powder coating
• Three-point door lock with two included keys
• Ventilation slots for maximum airflow to keep your equipment cool and prevent overheating
• IP20-rated protection
• Pre-punched cable entry openings on top, rear and bottom
• Ships fully assembled for quick installation
• Three-year warranty

Specifications
Manufacturer: IC INTRACOM
Manufacturer Part Number: 713641
Manufacturer Website Address: http://www.icintracom.com
Brand Name: Intellinet
Product Name: Low-Profile 19" Wall Mount Cabinet with 4U Horizontal and 2U Vertical Rails
Product Type: Wall Mount
Product Information
Device Supported:

• Network Switch
• Power Strip
• Patch Panel
• Video Surveillance System
• PDU
• Network Equipment

Maximum Load Capacity: 60 kg
Features:

• Lockable
• Ventilation
• Removable Door
• Key Lock
• Robust
• Space Saving Design

Orientation: Horizontal
Mount Profile: Low Profile/Fixed
Ingress Protection (IP) Rating: IP20
Rack Height: 4U
Rack Width: 55 cm (21.65")
Mount Function: Wall Mount
Mount Surface: Wall
Durability:

• Heat Resistant
• Damage Resistant
• Tamper Resistant

Physical Characteristics
Color Family: Grey
Product Color: Grey
Product Material:

• Sheet Metal
• Steel
• Powder Coated Steel

Form Factor: Wall Mountable
Height: 54 cm (21.26")
Width: 55 cm (21.65")
Depth: 17 cm (6.69")
Diameter: 1.50 cm (0.59")
Weight (Approximate): 8.50 kg
Miscellaneous
Application/Usage: Residential
Assembly Required: No
Country of Origin: China
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 3 Year
