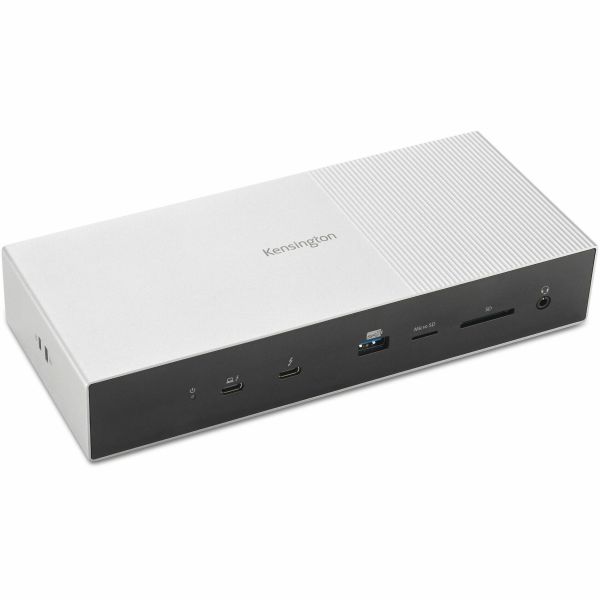

Kensington SD5000T5 EQ Thunderbolt 5 Triple 4K Docking Station with 140W PD - Windows/macOS

Marketing Information

Professionals with premium laptops often struggle to unlock the full potential of their devices. For those wanting to connect multiple high-resolution displays, transfer data at high speeds, and expand connectivity without relying on adapters, the SD5000T5 Thunderbolt™ 5 Triple Video Docking Station is the ultimate powerhouse. Providing a powerful single-cable solution that helps you be more productive, it supports multiple 4K monitors for expanded visual productivity, turbocharged speeds for working with large files, more ports for connecting accessories without using adapters, and amplified charging for meeting the demands of high-power workstations.

Boost productivity with speeds up to 80Gbps, with Bandwidth Boost providing... up to 120Gbps for video-intensive usage.

Contains 100% post-consumer recycled (PCR) aluminum*- and delivered in Forest Stewardship Council (FSC®) certified packaging. * The outer casing of the docking station is made of aluminium, excluding the PCBA and any related inner components.

Supporting up to three 4K monitors at 144Hz or two 8K monitors at 60Hz, MacBook models with M4 Base, or M1/M2/M3/M4 Pro and Max, support up to two 6K monitors at 60Hz.

Delivers up to 140W Power Delivery to meet the demands of high-power workstations.

Productive 11-in-1 design provides increased efficiency and seamless connectivity to various setups.

Built-in SD and Micro SD card readers provide ultra-fast file transfer options.

Plug-and-play solution for Thunderbolt™ 5, Thunderbolt™ 4, USB4®, and USB-C® devices running Windows 11 (23H2 or later) or macOS (14.5 or later).

Zero-Footprint Mounting option to support a tidier workspace.

Offers security cable lock slots to support device protection.

Includes free Kensington DockWorks™ software to ensure the best connection, performance, and security from your Kensington dock.

3-Year limited warranty.

For MacBook, the number of displays that can be connected through the dock is up to two external displays based on our current testing. With chipsets like M4 Max, you can maximize the display support offered by the CPU by connecting additional monitors directly to the MacBook.

The SD5000T5 dock can support up to three video streams through the upstream docking connection; however, the actual number of supported displays depends on the specific OEM laptop configuration. Please contact the laptop manufacturer to confirm the maximum number of video streams supported by the Thunderbolt 5 port on the host.

Specifications
Manufacturer: Kensington Computer Products Group
Manufacturer Part Number: K35201EU
Manufacturer Website Address: http://www.acco.co.uk
Brand Name: Kensington
Product Model: SD5000T5
Product Name: SD5000T5 EQ Thunderbolt 5 Triple 4K Docking Station with 140W PD - Windows/macOS
Product Type: Docking Station
Technical Information
Connectivity Technology: Wired
Charging Capability: Yes
Device Supported:

• Monitor
• Workstation
• Notebook

Memory Card Reader: Yes
Memory Card Supported:

• SD
• microSD

Features:

• USB- Power Delivery (USB PD)
• Card Reader
• Security Lock
• Cable Lock Slot
• Plug and Play

Number of Displays Supported: 3
Screen Mode Supported:

• 8K @ 60Hz
• Full HD
• 4K @ 144Hz

Supported Resolutions:

• 7680 x 4320
• 3840 x 2160
• 1920 x 1080

Maximum Data Transfer Rate: 15 GB/s
Security Slot Type: Kensington Security Slot
Network & Communication
Ethernet Technology: 2.5 Gigabit Ethernet
Interfaces/Ports
Host Interface: Thunderbolt 5
Total Number of USB Ports: 3
Number of USB 3.2 Gen 2 Type-A Ports: 3
Number of USB Type-A Ports: 3
USB Type-A: Yes
Network (RJ-45): Yes
Headphone/Microphone Combo Port: Yes
Thunderbolt: Yes
Thunderbolt Ports Quantity: 4
USB Power Delivery: 140W
Software
Operating System Supported:

• Windows 11
• macOS Sonoma 14.5

Physical Characteristics
Form Factor: Desktop
Miscellaneous
Kensington Security Slot: Yes
Warranty
Limited Warranty: 3 Year
