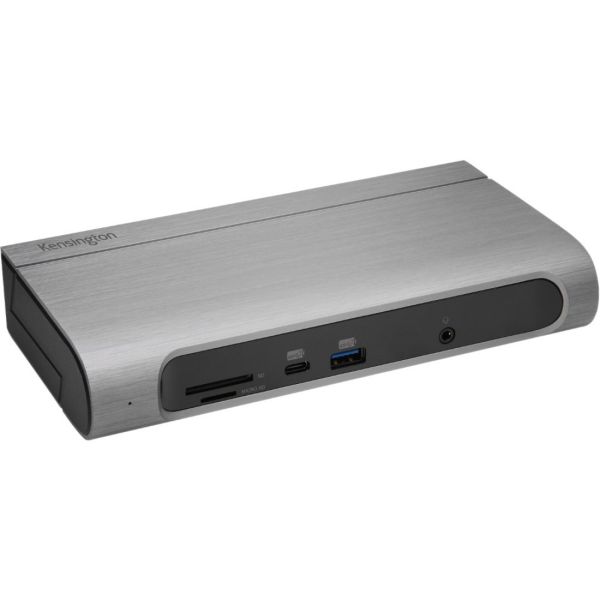

Kensington SD5600T Docking Station

Marketing Information

Universal compatibility

Perfect for hot-desking and mixed deployment environments, the universally compatible SD5600T works with Thunderbolt 3 and USB-C laptops running Windows or macOS. Now compatible with Thunderbolt 4 laptops at Thunderbolt 3 features.

Thunderbolt 3 technology

Allows you to transfer up to 40Gbps of data, video and audio (10Gbps for USB-C Gen2 laptops, 5Gbps for USB-C Gen1 laptops) using the included 0.8m (2.6 ft.) Thunderbolt 3 cable, for a quick and powerful plug and play experience.

Single 4K or Dual 4K video output for Thunderbolt 3 enabled devices

Extend visual productivity with the crisp resolution, contrast and colour depth of Ultra HD (Single or Dual 4K @ 60...Hz) via two DisplayPort ports. USB-C laptops must support Alt Mode. For USB-C Alt Mode devices, a maximum resolution of Single 4K 60Hz or Dual 1440p @ 30Hz is supported for HBR3 laptops or Single 4K 30Hz or Dual 1080p @ 60Hz is supported for HBR2 laptops (dual monitors are for devices that support MST).

100W Power Delivery

Quickly and simply charge any Thunderbolt 3 or USB-C enabled laptop. USB-C laptops must support Power Delivery. Ideal for devices that require higher power, such as the newer MacBook Pro.

Productive desktop setup

This 15-port universal docking station provides plenty of ports for all your needs: One front USB-C Gen2 port (up to 10Gbps with 5V/1.5A charging), six USB-A ports (1 front Gen2@10Gbps front with 5V/1.5A charging, 5 rear Gen1@5Gbps, 5V/0.9A), one Gigabit Ethernet port, and one audio combo jack.

Flexible mounting options

Choose a horizontal or vertical placement on the desktop, alternatively try our optional zero footprint mounting solution (K34050WW).

Built-in SD and Micro SD card readers

UHS II SD 4.0 card readers enable ultra-fast file transfer.

Free Kensington DockWorks™ software and three-year warranty

For the best connection, performance and security from your Kensington dock, and the peace of mind knowing you're covered by Kensington.

The SD5600T Thunderbolt™ 3 and USB-C™ Dual 4K Hybrid Docking Station - 100W PD - Win/Mac is the ultimate docking station for maximum productivity and compatibility. Features include universal compatibility, the flexibility to select between HDMI 2.0 and DP 1.2, horizontal or vertical placement options, built-in SD and Micro SD card readers, seven USB ports (two with charging), one Gigabit Ethernet port and one audio combo jack. Three-year warranty.

• Best for: Thunderbolt 3, Thunderbolt 4 and USB-C Laptops and Monitors that support up to 4K
• Connection Technology: Thunderbolt 3 & USB-C (Thunderbolt 4 laptops supported at Thunderbolt 3 features)
• Power Delivery: Supports USB-C PD 3.0 (100W of laptop charging)
• Compatibility: Windows 10 and macOS X 10.14 or later
• No. of monitors supported: 2
• Video ports: 2 x HDMI v2.0 and 2 x DisplayPort 1.2

Specifications
Manufacturer: Kensington Computer Products Group
Manufacturer Part Number: K34009EU
Manufacturer Website Address: http://uk.kensington.com
Brand Name: Kensington
Product Model: SD5600T
Product Name: SD5600T Docking Station
Product Type: Docking Station
Technical Information
Connectivity Technology: Wired
Device Supported:

• Monitor
• Notebook

Interfaces/Ports
Host Interface: USB Type C
USB Type-C: Yes
USB Type-C Detail: 1 x: USB 3.1 Gen2 (front) with 5V/1.5A charging
Network (RJ-45): Yes
Number of DisplayPort Outputs: 2
DisplayPort: Yes
Headphone/Microphone Combo Port: Yes
Number of HDMI Outputs: 2
HDMI: Yes
Thunderbolt: Yes
Power Description
Maximum Power Supply Wattage: 100 W
Miscellaneous
Compatibility: Apple MacBook Pro
Brand Compatibility: Apple
