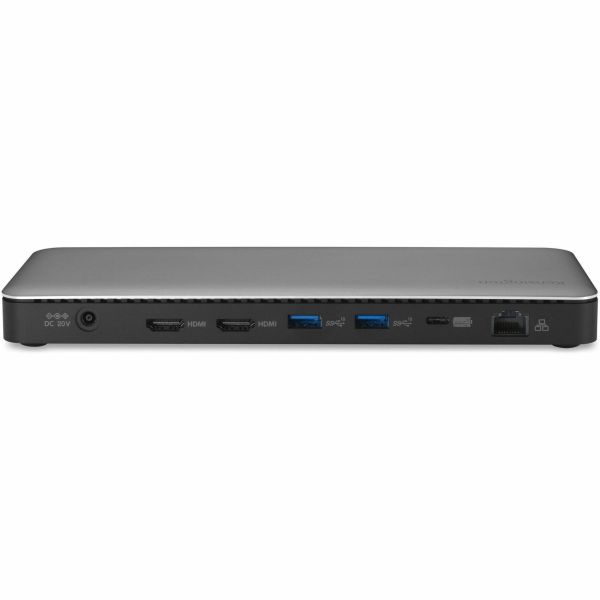

Kensington SD5760T Thunderbolt 4 Dual 4K Docking Station

Marketing Information

Enhanced productivity today and in the future.

If you need a high-speed dock that easily supports Dual 4K connections to HDMI monitors, powers as many devices as possible and reduces the number of adapters, cables and wired devices on your desktop, the SD5760T Thunderbolt 4 Dual 4K Docking Station is the ideal dock for you.

Perfect for busy professionals working in the home or office, this dock supports the latest MacBooks, Surface devices, and other Thunderbolt 4 enabled laptops with everything you need to enhance your productivity today and well into the future.

Providing a true plug-and-play experience, flexible video port options, 40Gbps data transfer speeds, dynamic Power Delivery and daisy chaining via Thunde...rbolt 4, the SD5760T offers everything you need in a docking station.

Features include:

• Supports Thunderbolt 4, Thunderbolt 3, USB4, and USB-C devices
• Transfers up to 40Gbps of data, video and audio
• Supports up to Single 8K @ 60Hz via a Thunderbolt 4 port when DSC is enabled or Dual 4K @ 60Hz via two HDMI ports.
• Supports up to 96W of Power Delivery and automatically adjusts for optimal performance
• 13-in-1 design includes Thunderbolt, USB-C, USB-A, HDMI, Ethernet, a combo audio jack, and micro and SD card readers

Specifications
Manufacturer: Kensington Computer Products Group
Manufacturer Part Number: K34110EU
Manufacturer Website Address: http://www.acco.co.uk
Brand Name: Kensington
Product Model: SD5760T
Product Name: SD5760T Thunderbolt 4 Dual 4K Docking Station
Packaged Quantity: 1
Package Type: Retail
Product Type: Docking Station
Technical Information
Connectivity Technology: Wired
Device Supported:

• Monitor
• Tablet PC
• Notebook

Memory Card Reader: Yes
Memory Card Supported:

• SD
• microSD

Features:

• Power Delivery Pass-through
• Plug & Play

Number of Displays Supported: 2
Screen Mode Supported:

• 4K @ 60Hz
• 8K
• 6K
• Full HD

Supported Resolutions:

• 3840 x 2160
• 7680 x 4320
• 1920 x 1080

Maximum Data Transfer Rate: 5 GB/s
Network & Communication
Ethernet Technology: Gigabit Ethernet
Interfaces/Ports
Host Interface: Thunderbolt 4
Total Number of USB Ports: 5
Number of USB 3.2 Gen 1 Type-A Ports: 2
Number of USB 3.2 Gen 2 Type-A Ports: 2
Number of USB Type-A Ports: 4
Number of USB Type-C Ports: 1
USB Type-A: Yes
USB Type-C: Yes
USB Type-C Detail: 1 x USB-C 3.2 Gen2 10Gbps (5V/1.5A)
Network (RJ-45): Yes
Number of RJ-45 Ports: 1
Number of Network (RJ-45) Ports: 1
Headphone/Microphone Combo Port: Yes
Number of HDMI Ports: 2
HDMI: Yes
HDMI Version: 2.0
Thunderbolt: Yes
Thunderbolt Ports Quantity: 2
USB Power Delivery: 96W
Software
Operating System Supported:

• Windows 10
• macOS Big Sur

Physical Characteristics
Color Family: Dual Colour
Product Color:

• Black
• Space Gray

Height: 225 mm
Width: 85 mm
Depth: 22 mm
Weight (Approximate): 360 g
Miscellaneous
Package Contents:

• SD5760T Thunderbolt 4 Dual 4K Docking Station
• 1 x Thunderbolt 4 Passive Cable (0.8m)
• 1 x Power Supply Unit (135W)
• 1 x Instruction Guide
• 1 x Warranty Card
• 1 x Compliance Sheet
• 1 x Welcome Card Insert

Kensington Security Slot: Yes
Compatibility:

Compatible Devices:

• Apple MacBook M1
• Apple MacBook M2
• Apple iPad Pro

Brand Compatibility: Apple
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Country of Origin: China
Warranty
Limited Warranty: 3 Year
