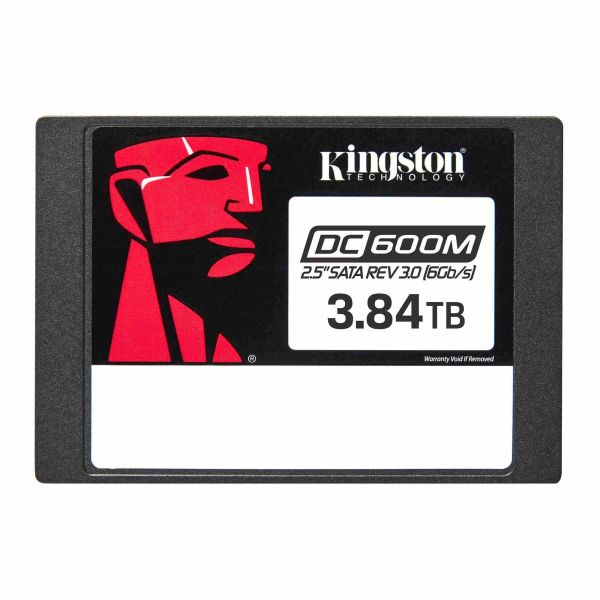

Kingston Enterprise DC600M Solid State Drive

Marketing Information

DC600M 2.5" SATA Enterprise SSD | 6Gbps SATA 3.0 Storage for Mixed-Use Workloads

Kingston's DC600M SSD is a 4th generation data center SATA 3.0, 6Gbps SSD with 3D TLC NAND intended for "mixed use" workloads. The DC600M is suited for use in high-volume rack-mount servers and includes hardware based on-board PLP. Via power loss capacitors, DC600M protects data against unexpected power failure to reduce the possibility of data loss and ensure that the drive will successfully re-initialize on the next power-up of the system. DC600M is designed to deliver latency and IOPS consistency for system integrators, hyperscale data centers, and cloud service providers.

Capacities available from 480GB-7680GB to meet your data storage r...equirements.

• Hardware-based power loss protection
• Latency and IOPS consistency
• AES 256-bit self-encrypting drive
• Capacities up to 7680GB

Key Features | Hardware-based PLP

Power loss capacitors to protect user data against unexpected power loss and enhance performance.

Delivers excellent Quality of Service (QoS)

Optimized performance predictability to hit Service-level agreements (SLAs).

AES 256-bit Self Encrypting Drive

Built in protection to safeguard important data.

Capacities up to 7680GB

Upgrade and manage storage with capacities up to 7680GB.

Specifications
Manufacturer: Kingston Technology Company
Manufacturer Part Number: SEDC600M3840G
Manufacturer Website Address: http://www.kingston.com
Brand Name: Kingston
Product Line: Enterprise
Product Model: DC600M
Product Name: Enterprise DC600M Solid State Drive
Product Type: Solid State Drive
Technical Information
Storage Capacity: 3.84 TB
Encryption Standard: 256-bit AES
Drive Performance
Maximum Read Transfer Rate: 560 MB/s
Maximum Write Transfer Rate: 530 MB/s
Random 4KB Read: 94000IOPS
Random 4KB Write: 59000IOPS
Endurance (DWPD): 1
Endurance (TBW): 7008 TB
Endurance Type: Mixed Use
Network & Communication
Wireless LAN: No
Interfaces/Ports
Drive Interface: SATA
Drive Interface Standard: SATA/600
Physical Characteristics
Drive Type: Internal
Form Factor: 2.5"
Hot Pluggable: Yes
Height: 7 mm
Width: 100 mm
Depth: 69.9 mm
Weight (Approximate): 92.3 g
Miscellaneous
Compatibility:

ASRock - Server 1U12E-GENOA/2L2T

ASRock - Server 1U1G-W680/2L2T

ASRock - Server 1U4L-EGS/2T

ASRock - Server 1U4L-GENOA/2T

ASRock - Server 1U4L4E-EGS/2T

ASRock - Server 1U4L4E-GENOA/2T

ASRock - Server 1U4LW-B650/2L2T

ASRock - Server 1U8S4E-GENOA/2T

ASRock - Server 2U12L8E-GENOA2

ASRock - Server 2U24E-EGS2

ASRock - Server 2U24E-GENOA2

ASRock - Server 2U4G8E-EGS2

ASRock - Server Board GENOA2D24TM3-2L+

ASRock - Server Board GENOAD24QM3-2L2T/BCM

ASRock - Server Board GENOAD8UD-2T/X550

ASRock - Server Board SP2C741D32TM3

ASRock - Server Board SPC741D8-2L2T/BCM

ASRock - Server Board SPC741D8HM3

ASRock - Server Board SPC741D8QM3-2T

ASRock - Server Board SPC741D8UD-2T/X550

ASRock - Server Board W680D4ID-2T

ASRock - Server Board W680D4ID-2T/G5/X550

ASRock - Server Board W680D4U

ASRock - Server Board W680D4U-2L2T

ASRock - Server Board W680D4U-2L2T/G5

ASRock - W790 WS Motherboard

ASRock - WRX80 Creator / WRX80 Creator R2.0 Motherboard

ASUS - ASUSTOR DRIVESTOR 2 (AS1102T)

ASUS - ASUSTOR DRIVESTOR 2 Pro (AS3302T)

ASUS - ASUSTOR DRIVESTOR 4 (AS1104T)

ASUS - ASUSTOR DRIVESTOR 4 Pro (AS3304T)

ASUS - ASUSTOR LOCKERSTOR 12RD (AS6512RD)

ASUS - ASUSTOR LOCKERSTOR 4RS(AS6504RS)/LOCKERSTOR 4RD(AS6504RD)

ASUS - ESC4000-E11 Server

ASUS - ESC4000A-E12 Server

ASUS - ESC8000-E11 Server

ASUS - ESC8000-E11P Server

ASUS - ESC8000A-E12 Server

ASUS - ESC8000A-E12P Server

ASUS - Pro WS W790-ACE Motherboard

ASUS - Pro WS W790E-SAGE SE Motherboard

ASUS - RS100-E11-PI2 Server

ASUS - RS500A-E12-RS12U Server

ASUS - RS500A-E12-RS4U Server

ASUS - RS520A-E12-RS12U Server

ASUS - RS520A-E12-RS24U Server

ASUS - RS700-E11-RS12U Server

ASUS - RS700-E11-RS4U Server

ASUS - RS700A-E12-RS12U Server

ASUS - RS700A-E12-RS4U Server

ASUS - RS720-E11-RS12U Server

ASUS - RS720-E11-RS24U Server

ASUS - RS720A-E12-RS12 Server

ASUS - RS720A-E12-RS24 Server

ASUS - RS720A-E12-RS24U Server

ASUS - RS720Q-E10-IM Server

ASUS - RS720Q-E10-RS8U Server

ASUS - RS720Q-E11-RS8U Server

ASUS - RS720QA-E12-RS8U Server

Dell/Alienware - DSS 9600

Dell/Alienware - DSS 9620

Dell/Alienware - DSS 9630

Dell/Alienware - PowerEdge C5230

Dell/Alienware - PowerEdge C6600 & C6620

Dell/Alienware - PowerEdge MX760c

Dell/Alienware - PowerEdge R660

Dell/Alienware - PowerEdge R660xs

Dell/Alienware - PowerEdge R6615

Dell/Alienware - PowerEdge R6625

Dell/Alienware - PowerEdge R760

Dell/Alienware - PowerEdge R760xs

Dell/Alienware - PowerEdge R7615

Dell/Alienware - PowerEdge R7625

Dell/Alienware - PowerEdge XE7100

DFI - CS331-C246 Motherboard

DFI - CS332-C246 Motherboard

Fujitsu - PRIMERGY BX2560 M1 (D3320)

Fujitsu - PRIMERGY RX2530 M7 (D3982)

Fujitsu - PRIMERGY RX2540 M7 (D3983)

Fujitsu - PRIMERGY TX2550 M7 (D3985-A)

Gigabyte - E163-S30 Server (MS33-DC0)

Gigabyte - E163-Z30 Server (MZ33-DC0)

Gigabyte - E263-S30 Server (MS33-DC0)

Gigabyte - E263-Z30 Server (MZ33-DC0)

Gigabyte - E283-S90 Server (MS93-FS0)

https://www.kingston.com/en/memory/search/systemdevices?partid=SEDC600M%2F3840G

Device Supported:

• Server
• Motherboard
