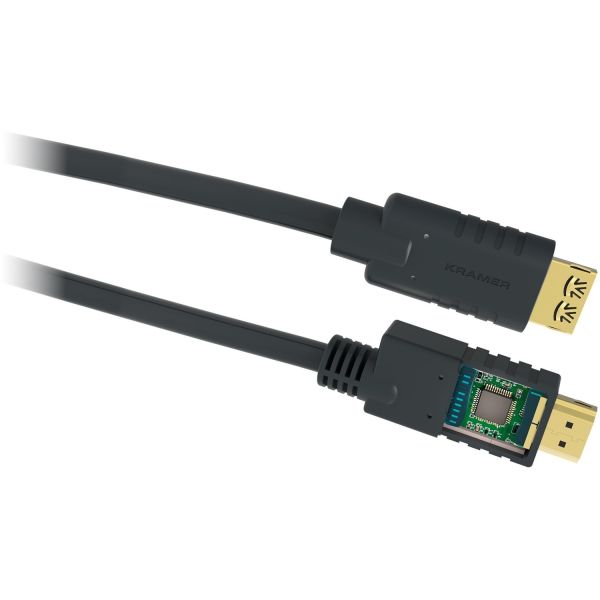

Kramer Active High Speed HDMI Cable with Ethernet

Marketing Information

CA-HM active HDMI copper cable provides a perfect cable solution for delivering HDMI signals over long distances: 18Gbps up to 20m (66ft) and 10.2 Gbps up to 30m (98ft). The innovative technology utilized in the cable's connector features superior equalizing and signal compensation to meet the most demanding challenges in Pro AV installations.
This unique solution simplifies long distance installations by using a true plug & play cable that draws power from the HDMI source. There is no need for an external power source.
CA-HM features the Kramer exclusive K-Lock HDMI connector, that prevents cables in your installation from unintentionally disconnecting, eliminating cable-related service calls. Additionally, an LED on the connect...or indicates when the signal is transmitted successfully.

• Video Resolution - Up to 4K@60Hz (4:4:4).
• High Data Transfer Rate - Up to 18Gbps.
• HDMI Support - HDCP 2.2, HDR, EDID, ARC and CEC.
• Deep Color, x.v.Color™, 5.1/7.1 lossless Dolby TrueHD and DTS-HD surround sound.
• High-quality Connectors - 24K gold-plated, corrosion-resistant connectors offer the best possible connectivity.
• Pull-resistant - K-Lock connectors with 15 lbs. of restraining force.
• Triple Shielded - For maximum EMI protection.
• UL Listed - CL3/FT4 rated for in-wall installations.
• Varied Selection of Lengths - Available in versions of 15 to 98ft (4.6 to 30m).

Specifications
Manufacturer: Kramer Electronics LTD
Manufacturer Part Number: CA-HM-35
Manufacturer Website Address: http://www.kramerelectronics.com
Brand Name: Kramer
Product Series: CA-HM
Product Model: CA-HM-35
Product Name: Active High Speed HDMI Cable with Ethernet
Product Type: A/V Cable
Technical Information
Cable Type: HDMI
Cable Length: 10.67 m
Connector Type on First End: HDMI Type A Digital Audio/Video - Male
Connector on First End Details: 1 x HDMI Type A Digital Audio/Video - Male
Connector Type on Second End: HDMI Type A Digital Audio/Video - Male
Connector on Second End Details: 1 x HDMI Type A Digital Audio/Video - Male
Connector Plating: Gold
Shielding: Yes
Device Supported: Audio/Video Device
American Wire Gauge: 28 AWG
Data Transfer Rate: 18 Gbit/s
Supported Resolution: 3840 x 2160
Features:

• K-Lock
• HDCP 2.2
• Extended Display Identification Data (EDID)
• Consumer Electronics Control (CEC)
• Audio Return Channel (ARC)
• EMI Protection
• Pull Resistant Connector
• Corrosion Resistant
• x.v.Color
• Plug & Play
• Active
• HDMI Ethernet Channel Support
• LED

Physical Characteristics
Color Family: Black
Product Color: Black
Jacket Material: Polyvinyl Chloride (PVC)
