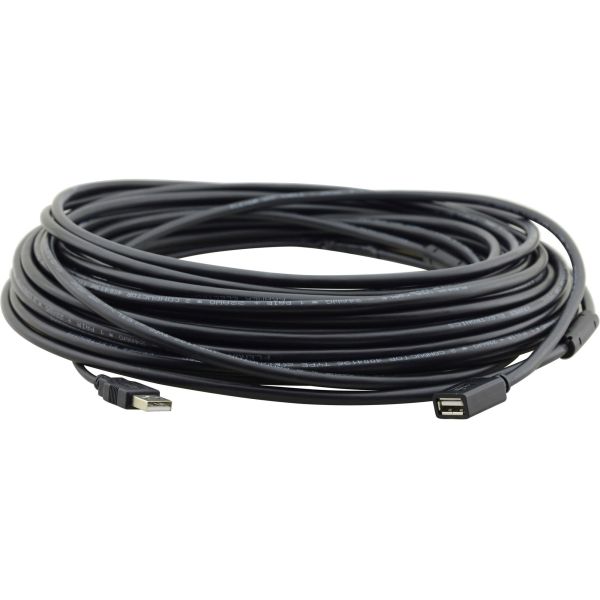

Kramer USB Active Extender Cable

Marketing Information

Due to its design, USB cable has a normal maximum length of about 5 meters (16.4 feet), but you can get longer distances by using the CA-UAM/UAF active USB extension cable from Kramer!This is a bus-powered extension cable that can be used to increase the length of a device without any signal loss or potential performance problems. It contains active electronics, which boost the USB signal for maximum reliability and performance over extended distances. The cable operates as a self-powered extender, for use with USB cameras‚ printers‚ webcams‚ keyboard/mouse, etc.

• True Plug-and-Play - No additional drivers needed.
• USB 2.0 High Speed (480Mbps) Standard.
• Construction - 1 pair 24AWG + 2 pair 22A...WG + drain wire 24AWG, tinned copper braid.
• No External Power - Pulls power from source.
• Data Transfer Only - Not for charging.
• Buffers Incoming & Outgoing Signal.
• Compliant with USB 2.0.
• CM-c(ETL) Rated.
• Varied Selection of Lengths - Available in versions of 15 to 65ft (4.6 to 19.5m).

Specifications
Manufacturer: Kramer Electronics LTD
Manufacturer Part Number: CA-UAM/UAF-35
Manufacturer Website Address: http://www.kramerelectronics.com
Brand Name: Kramer
Product Model: CA-UAM/UAF-35
Product Name: USB Active Extender Cable
Product Type: Data Transfer Cable
Technical Information
Cable Type: USB
Cable Characteristic: Extension Cable
Cable Length: 10.67 m
Connector Type on First End: USB 2.0 Type A - Male
Connector on First End Details: 1 x USB 2.0 Type A - Male
Connector Type on Second End: USB 2.0 Type A - Female
Connector on Second End Details: 1 x USB 2.0 Type A - Female
Device Supported:

• Keyboard/Mouse
• Camera
• Printer
• Webcam

American Wire Gauge: 24 AWG
Data Transfer Rate: 480 Mbit/s
Features: Active
