Kramer HDMI over Twisted Pair Receiver

Marketing Information

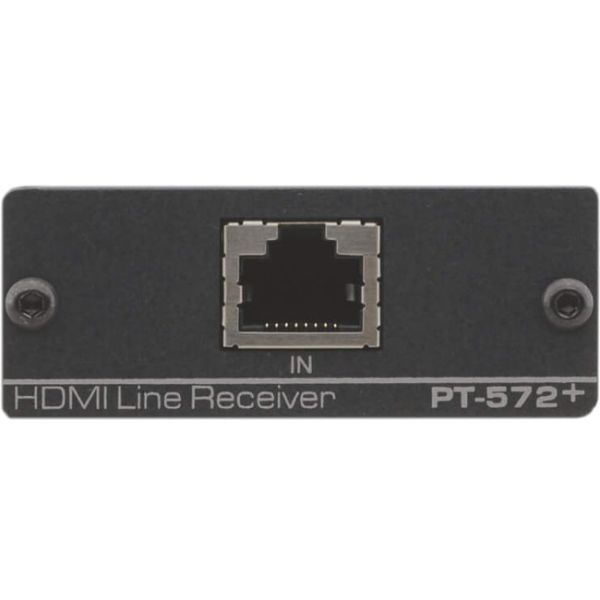

The PT-572+ is a DGKat™ twisted pair receiver for HDMI signals. The PT-571 converts an HDMI signal to a single twisted pair signal and the PT-572+ converts the twisted pair signal back to an HDMI signal.

• Max. Data Rate - 4.95Gbps (1.65Gbps per graphic channel).

• HDTV Compatible.

• HDCP Compliant.

• DGKat™ Signal Integration - Kramer's unique technology for converting TMDS as well as control and communication to signals that run over twisted pair cables. We strongly recommend using Kramer DGKat™ cables designed specifically for optimum performance.

• HDMI Support.

• 3D Pass-Through.

• System Range - Up to 90m (...295ft) at 1080i, or up to 30m (98ft) at 1080p on shielded BC-DGKat524 cable. Up to 90m (295ft) at 1080i, or up to 70m (230ft) at 1080p on shielded BC-DGKat623 cable. Up to 100m (330ft) at 1080i or up to 90m (295ft) at 1080p on shielded BC-DGKat7a23 cable.

• Cable - Requires Shielded Twisted Pair (STP) cable. For optimum range and performance use, use Kramer's BC-DGKat524 & BC-DGKat623 cables. Note that the transmission range depends on the signal resolution, graphics card and display used. The distance using non-Kramer CAT 5, CAT 6, and CAT 7 cables may not reach these ranges. Use only shielded cable where both ends of the shield are soldered to ground.

• EDID PassThru - Passes EDID signals between the source and display.

• Status LED - Lights red when receiving power only, orange when output and power are attached, and yellow when both an active input and output are attached.

• Power Connect™ System - A single connection to the transmitter or the receiver powers the system when the devices are within 270ft (90m) of each other.

• Ultra-Compact Pico TOOLS™ - 4 units can be rack mounted side-by-side in a 1U rack space with the optional RK-4PT rack adapter.

Specifications
Manufacturer: Kramer Electronics LTD
Manufacturer Part Number: PT-572+
Manufacturer Website Address: http://www.kramerelectronics.com
Brand Name: Kramer
Product Model: PT-572
Product Name: HDMI over Twisted Pair Receiver
Product Type: Video Extender Receiver
Technical Information
Connectivity Technology: Wired
Number of Input Devices Supported: 1
Number of Output Devices Supported: 1
Maximum Operating Distance: 90 m
Interfaces/Ports
HDMI In: Yes
Number of HDMI Inputs: 1
Media & Performance
Media Type Supported: Twisted Pair
Twisted Pair Cable Standard: Category 7
Physical Characteristics
Receiver Height: 25.40 mm
Receiver Width: 60.96 mm
Receiver Depth: 53.34 mm
Form Factor: Rack-mountable
Receiver Weight (Approximate): 140 g
