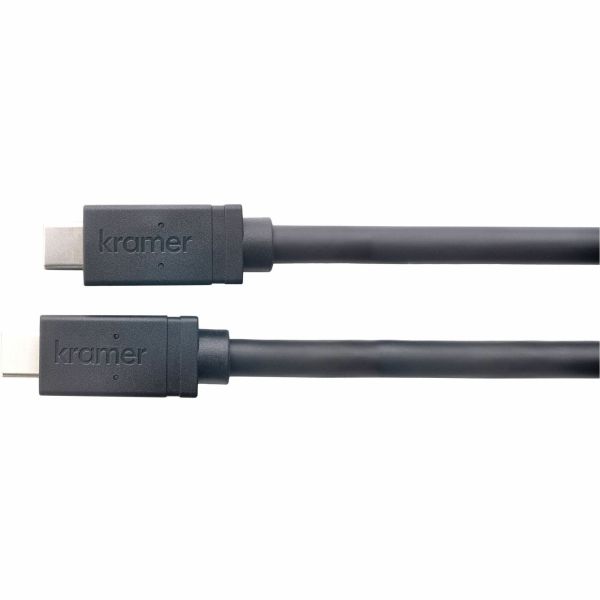

Kramer USB 3.2 GEN-2 Full Featured USB-C (M) to USB-C (M) Active Cable

Marketing Information

CA-U32/FF is a USB-C(M) to USB-C(M), USB 3.2 Gen-2 SuperSpeed+ Active cable offering a whole new level of reliable connectivity thanks to kramer's unique K-lock. Transfer Video 4K@60 data at incredible speeds (10G), charge other devices (60W), and even power mobile devices - all with just one Active cable.

CA-U32/FF offers throughput of up to 10Gbps when used with a USB 3.2 host and device. The symmetrical, low profile USB Type-C connector, with the integrated K-Lock mechanism, can be plugged in any direction, thus eliminating the frustration of getting the port insertion just right.

• Quality Construction - High-quality shielded twisted pair (STP) construction helps prevent electromagnetic interference and ensures reliabl...e data communication.
• Reversible USB Type-C Connector with integrated locking mechanism.
• Transfer Rates - Up to 10Gbps.
• 3A Current Rating.
• PC, Mac & Mobile Compatible.
• Plug and Play - For monitors, Web cameras, printers, scanners, keyboards and other digital devices.
• USB Backward Compatibility - 1.0, 1.1, 2.0, and 3.0.
• RoHS REACH Compliant.

Specifications
Manufacturer: Kramer Electronics LTD
Manufacturer Part Number: CAU32FF10
Manufacturer Website Address: http://www.kramerelectronics.com
Brand Name: Kramer
Product Line: SuperSpeed+
Product Model: CA-U32/FF
Product Name: USB 3.2 GEN-2 Full Featured USB-C (M) to USB-C (M) Active Cable
Product Type: Data Transfer Cable
Technical Information
Cable Type: USB-C
Cable Length: 3.05 m
Connector Type on First End: USB 3.2 (Gen 2) Type C - Male
Connector Gender on First End: Male
Connector on First End Details: 1 x USB 3.2 (Gen 2) Type C - Male
Connector Type on Second End: USB 3.2 (Gen 2) Type C - Male
Connector Gender on Second End: Male
Connector on Second End Details: 1 x USB 3.2 (Gen 2) Type C - Male
Connector Plating: Nickel
Shielding: Yes
Jacket Type: VW-1
Device Supported:

• Mobile Device
• PC
• MAC
• Monitor
• Webcam
• Printer
• Scanner
• Keyboard

Data Transfer Rate: 10 Gbit/s
Supported Resolution: 3840 x 2160
Features:

• Active
• K-Lock
• EMI Protection
• Reversible
• Plug & Play
• Bendable
• Triple Shielded

Physical Characteristics
Jacket Color: Black
Product Material:

• Tinned Copper
• Bare Copper

Connector Material: Gold
Shielding Material: Aluminum Mylar Foil
Jacket Material: Polyvinyl Chloride (PVC)
Material Details:

• Gold - Connector Pins
• Tinned Copper ,Bare Copper - Conductors
