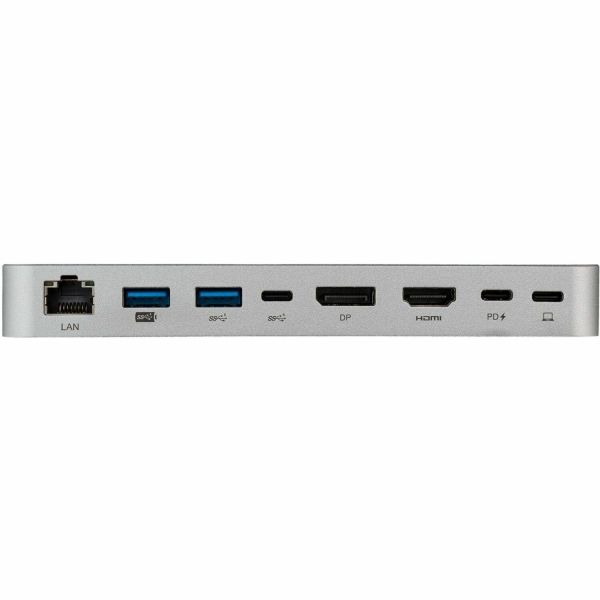

Kramer USB−C Hub Multiport Adapter

Marketing Information

KDock-5 is a USB-C hub multiport adapter. KDock-5 can connect your USB-C device to HDMI™, DisplayPort video outputs, 3 USB 3.0 ports, an Ethernet port, an audio and microphone port, and USB-C charging pass-through port (1:8). KDock-5 is ideal as a personal work station at the office/or at home, and for small meeting rooms or huddle spaces

Specifications
Manufacturer: Kramer Electronics LTD
Manufacturer Part Number: KDOCK5
Manufacturer Website Address: http://www.kramerelectronics.com
Brand Name: Kramer
Product Name: USB−C Hub Multiport Adapter
Product Type: Docking Station
Technical Informati...on
Connectivity Technology: Wired
Charging Capability: Yes
Device Supported:

• Router
• Keyboard
• Notebook
• Mouse
• Headphone
• Hard Drive

Features: Power Delivery Pass-through
Management Features:

• Wake-on-LAN
• PXE Boot
• MAC Address Pass-through

Number of Displays Supported: 2
Screen Mode Supported: 4K
Supported Resolutions: 3840 x 2160
Maximum Data Transfer Rate: 640 MB/s
Network & Communication
Ethernet Technology: Gigabit Ethernet
Interfaces/Ports
Host Interface: USB Type C
Total Number of USB Ports: 5
Number of USB 3.0 Ports: 3
USB Type-A: Yes
Number of USB Type-A Ports: 2
USB Type-C: Yes
USB Type-C Detail: 1 x USB: On a female USB type-C connector for charging (100W max), 1 x USB: On a female USB type-C connector for host connection, 1 x USB 3.0: On female USB type-C connectors (5V/0.9A)
Number of USB Type-C Ports: 3
Network (RJ-45): Yes
Number of RJ-45 Ports: 1
Number of Network (RJ-45) Ports: 1
DisplayPort: Yes
Number of DisplayPort Outputs: 1
Headphone/Microphone Combo Port: Yes
HDMI: Yes
Number of HDMI Outputs: 1
USB Power Delivery: 100W
Software
Operating System Supported:

• Windows
• macOS

Physical Characteristics
Form Factor: Portable
Height: 19 mm
Width: 164 mm
Depth: 64 mm
Weight (Approximate): 174 g
