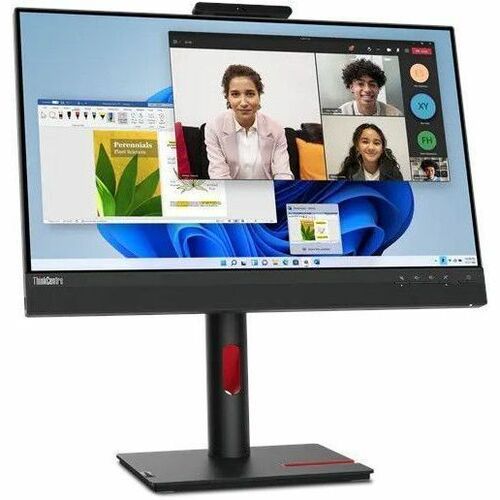

Lenovo ThinkCentre TIO 24 Gen 5 23.8" FHD Touch Monitor

Marketing Information

The ThinkCentre Tiny-In-One (TIO) 24 Gen 5 Touch displays visuals and video content with great clarity on the 23.8" borderless In-Plane Switching FHD panel with 99% sRGB colour support. It provides a complete working experience when paired with its VoIP features, a modular design which allows it to be attached with Lenovo's range of high-performance ThinkCentre and ThinkStation Tiny Computers from 4th Gen.

These can be effortlessly installed and housed in the dedicated slot at the back of the monitor, giving you a cable-free desk. Enjoy a consistent experience while using the classic installation mechanism to quickly and easily mount Tiny PCs to the monitor. Designed for efficient remote collaboration, it has a 1080p RGB webcam with ...a noise-cancellation microphone for crystal-clear audio and video.

Key Details:

• 23.8" , FHD 1920 x 1080
• IPS, 16:9, WLED
• 4ms (GtG) , 60Hz
• 3in1 + DP + HDMI, USB Hub

Tiny Packages that pack a punch

The TIO 24 Gen 5 is a modular device that supports Lenovo's range of ThinkCentre and ThinkStation Tiny Computers from 4th Gen. You can easily and quickly attach the Tiny to the monitor and secure them in a dedicated slot on the monitor's back, offering a clutterfree desk. An unchanged installation process ensures that you have a consistent and smooth experience when attaching Tiny PCs to the monitor. Connect multiple different devices such as laptops, towers, or notebooks using the available HDMI or DP ports. Easily secure both your TIO monitor and Tiny Computer with the Kensington lock for additional security.

Remote meetings at its core

The TIO 24 Gen 5 gives you plug-and-play functionality with Lenovo's Tiny PCs. A 1080p RGB webcam captures you accurately and two built-in 3W speakers help you listen to your colleagues clearly during meetings. Dedicated VoIP buttons make attending your meetings easier than ever. The menu Joystick allows you to tweak your screen's settings easily. A dedicated privacy shutter allows you to cover the camera for privacy once a meeting ends. The Smart Traffic Light indicator shows the status of an ongoing meeting to avoid potential disruptions.

Your partner as well as nature's

Experience clear and sharp detail, and a wide field of view on the monitor's 23.8-inch FHD In-Plane Switching panel that supports a 99% sRGB color gamut. During long hours of exposure, the TÃœV Rheinland Eye Comfort, TÃœV Low Blue Light, and Eyesafe 2.0 certified technologies and Natural Low Blue Light technology reduces harmful blue light without any color distortion. The TIO 24 Gen 5 also eases your physical comfort with options to lift and lower its height to match your seating position. The monitor is packaged in recycled paper and comes with an optional CO2 offset service, which allows you to do your bit for the environment.

Specifications
Manufacturer: Lenovo Group Limited
Manufacturer Part Number: 12NBGAT1UK
Manufacturer Website Address: http://www.lenovo.com/uk/en/
Brand Name: Lenovo
Product Line: ThinkCentre
Product Model: TIO 24 Gen 5
Product Name: ThinkCentre TIO 24 Gen 5 23.8" FHD Touch Monitor
Product Type: LED Touchscreen Monitor
Technical Information
Screen Size Class: 24"
Viewable Screen Size: 60.5 cm (23.8")
Screen Mode: Full HD
Panel Technology: In-plane Switching (IPS) Technology
Pixel Pitch: 0.27500 mm x 0.27500 mm
Response Time: 4 ms
Response Time Details:

• 4ms GTG
• 6ms Normal Mode

Aspect Ratio: 16:9
Horizontal Viewing Angle: 178°
Vertical Viewing Angle: 178°
Backlight Technology: WLED
Features:

• sRGB
• VoIP Controls
• Kensington Lock
• Eye Comfort Technology
• Low Blue Light
• Eyesafe Certified 2.0
• Natural Low Blue Light
• 3-side NearEdgeless
• Plug & Play
• Anti-glare
• Security Lock
• Cable Management

Horizontal Frequency: 30 kHz to 83 kHz
Vertical Frequency: 30 Hz to 75 Hz
Adjustable Stand: Yes
Stand Adjustments:

• Height
• Tilt
• Pivot
• Swivel

Video
Maximum Resolution: 1920 x 1080
Colour Supported: 16.7 Million Colours
Native Contrast Ratio: 1,000:1
Dynamic Contrast Ratio: 3,000,000:1
Brightness: 250 cd/m²
Color Gamut: 99% sRGB
Audio
Speakers: Yes
Number of Speakers: 2
Touchscreen Information
Touchscreen Type: Capacitive
Interfaces/Ports
HDMI: Yes
USB: Yes
DisplayPort: Yes
Total Number of HDMI Ports: 1
Number of USB Ports: 2
Number of DisplayPorts: 1
Built-in Devices
Built-in Devices:

• USB Hub
• KVM Switch

Webcam: Yes
Microphone: Yes
Environmental Conditions
Operating Temperature Range: 0°C to 40°C
Power Description
Operating Power Consumption: 14 W
Maximum Power Consumption: 34 W
Frequency:

• 50 Hz
• 60 Hz

Physical Characteristics
VESA Mount Compatible: Yes
VESA Mount Standard: 100 x 100
Color Family: Black
Product Color: Raven Black
Height: 367.6 mm
Width: 539.8 mm
Depth: 72.8 mm
Height with Stand: 539.60 mm
Width with Stand: 539.80 mm
Depth with Stand: 207.60 mm
Compressed Height with Stand: 384.60 mm
Extended Height with Stand: 539.60 mm
Weight (Approximate): 4 kg
Weight with Stand (Approximate): 6.30 kg
Miscellaneous
Package Contents:

• ThinkCentre TIO 24 Gen 5 23.8" FHD Touch Monitor
• Stand
• 1 x Power Cable (1 m)
• 1 x Power Adaptor (90W)
• Quick Setup Guide

Energy Star: Yes
TCO Certified: Yes
Environmental Certification:

• TCO Certified Edge Displays 2.0
• Electronic Product Environmental Assessment Tool Gold (EPEAT Gold)
• TÃœV Rheinland Low Blue Light
• TCO Certified 9.0

Energy Efficiency Certification: ENERGY STAR 8.0
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 3 Year
