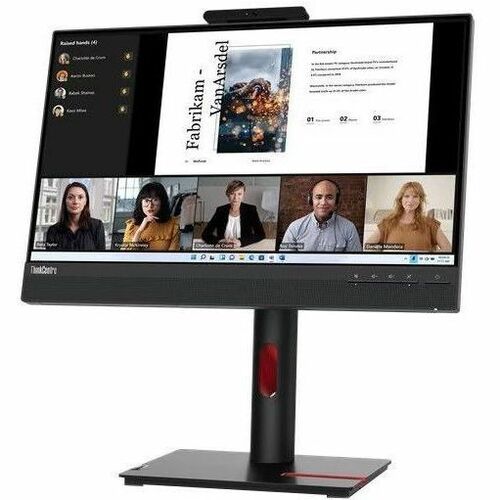

Lenovo ThinkVision TIO 22 Gen 5 21.5" FHD Touch Monitor

Marketing Information

The ThinkCentre Tiny-In-One (TIO) 22 Gen 5 Touch is an all-rounder with its 21.5" FHD In-Plane Switching panel which provides an immersive video calling experience. This Modular design of the monitor makes it compatible with Lenovo's range of high-performance ThinkCentre and ThinkStation Tiny Computers from 4th gen, and gives a complete working experience when paired with its VoIP features.

This can be installed on your monitor effortlessly and housed on the back of the monitor in a dedicated slot, making your desk cable-free. The classic installation mechanism ensures you have a consistent experience, allowing you to easily and quickly mount last-gen Tiny PCs on the monitor. Designed to be a powerful VoIP machine, this monitor is en...hanced with features that make video conferencing a great experience.

During online meetings, the 1080p RGB webcam and integrated noise-cancellation microphone produce exceptionally clear audio and video. The TIO 22 Gen 5 Touch also has a Smart Traffic Light indicator that alerts everyone in the vicinity to an ongoing meeting, letting you remain focused. If remaining focused and staying in the conversation is of importance to you, then the two built-in 3W speakers ensure that the audio from meetings is always clear and crisp.

Easily manage VoIP calls with one toggle to change the volume or mute the call using the dedicated VoIP buttons. Your privacy is in your hands with the ThinkShutter, which allows you to cover the camera when not in its use. Navigate any content on the screen with ease using its 10-point capacitive touch capability or pen1 support. Lenovo takes care of the environment with green packaging and optional CO2 offset service for zero to minimal carbon emission.

Tiny package, max performance

The TIO 22 Gen 5 is designed to give you a modular, easy-to-upgrade, plug-and-play experience. It is compatible with Lenovo's range of ThinkCentre and ThinkStation Tiny Computers from 4th Gen. This can be installed easily and quickly, and housed at the back of the monitor in a dedicated slot, making your desk clutter-free. An unchanged installation mechanism ensures that your experience of attaching Tiny PCs to your monitor is smooth and convenient. Securing both your monitor and the Tiny Computer is also now possible using the Kensington locks available.

Meets your meeting requirements

With the TIO 22 Gen 5, all your online meetings come to life. Dedicated VoIP buttons make getting to and managing audio on online calls very easy and convenient. You'll hear all meeting participants loud and clear on the monitor's two built-in 3W speakers. The 1080p RGB webcam module perfectly captures even the most minute expressions, ensuring that your image looks crisp and sharp to your colleagues. The Smart Traffic Light indicator ensures that you continue working without any interruptions by alerting everyone in the vicinity about an ongoing meeting.

Naturally comfortable

The TIO 22 Gen 5's 21.5-inch FHD In-Plane Switching panel with 99% sRGB color support reproduces crisp & colorful imagery and video content. Your eyes are protected by the TÃœV Rheinland Eye Comfort, TÃœV Low Blue Light, and Eyesafe 2.0 certified technologies and Natural Low Blue Light technology that filters out harmful blue light during extended screen time, without any color distortion. Adjust your seating position to gain a comfortable working posture with the wider lift range and lower position functions. Keeping your workspace clutter-free is easy with the open phone rack and cable management system. Rest assured that your choice of monitor is environment friendly with its green, recycled paper packaging and optional CO2 offset service

Specifications
Manufacturer: Lenovo Group Limited
Manufacturer Part Number: 12N9GAT1UK
Manufacturer Website Address: http://www.lenovo.com/uk/en/
Brand Name: Lenovo
Product Line: ThinkVision
Product Model: TIO 22 Gen 5
Product Name: ThinkVision TIO 22 Gen 5 21.5" FHD Touch Monitor
Product Type: LED Touchscreen Monitor
Technical Information
Screen Size Class: 22"
Viewable Screen Size: 54.6 cm (21.5")
Screen Mode: Full HD
Panel Technology: In-plane Switching (IPS) Technology
Response Time: 4 ms
Response Time Details: 4ms Extreme Mode
Aspect Ratio: 16:9
Horizontal Viewing Angle: 178°
Vertical Viewing Angle: 178°
Mount Type: Desk Mountable
Backlight Technology: WLED
Features:

• sRGB
• Eye Care Technology
• Cable Lock Slot
• NearEdgeless
• Plug & Play
• Low Blue Light
• Eye Comfort Technology
• Eyesafe Certified

Stand Adjustments:

• Tilt
• Swivel
• Pivot
• Height

Camera Resolution: 1080 Megapixel
Video
Maximum Resolution: 1920 x 1080
Colour Supported: 16.7 Million Colours
Native Contrast Ratio: 1,000:1
Brightness: 250 cd/m²
Color Gamut: 99% sRGB
Audio
Speakers: Yes
Touchscreen Information
Touchscreen Type: Capacitive
Multi-touch Screen: Yes
Number of Simultaneous Touchpoints: 10
Interfaces/Ports
HDMI: Yes
USB: Yes
DisplayPort: Yes
Total Number of HDMI Ports: 1
Number of USB Ports: 2
Number of DisplayPorts: 1
Number of USB 3.2 (Gen 1) Upstream Ports: 1
Built-in Devices
Built-in Devices: USB Hub
Webcam: Yes
Microphone: Yes
Power Description
Operating Power Consumption: 33 W
Energy Efficiency Class (SDR) (from 1st March 2021): D
Maximum Power Consumption: 33 W
ON Mode Energy Consumption per 1000Hour (SDR) (from 1st March 2021): 12 kW
Frequency:

• 50 Hz
• 60 Hz

Physical Characteristics
Color Family: Black
Product Color: Raven Black
Height: 339.1 mm
Width: 489.3 mm
Depth: 72.8 mm
Height with Stand: 512.30 mm
Width with Stand: 489.30 mm
Depth with Stand: 207.60 mm
Weight (Approximate): 3.40 kg
Weight with Stand (Approximate): 5.70 kg
Miscellaneous
Package Contents:

• ThinkVision TIO 22 Gen 5 21.5" FHD Touch Monitor
• Stand
• 1 x Power Cable (1 m)
• 1 x Power Adaptor (90W)
• Quick Setup Guide

Energy Star: Yes
Environmental Certification: TCO Certified Edge Displays 2.0
Energy Efficiency Certification: ENERGY STAR 8.0
