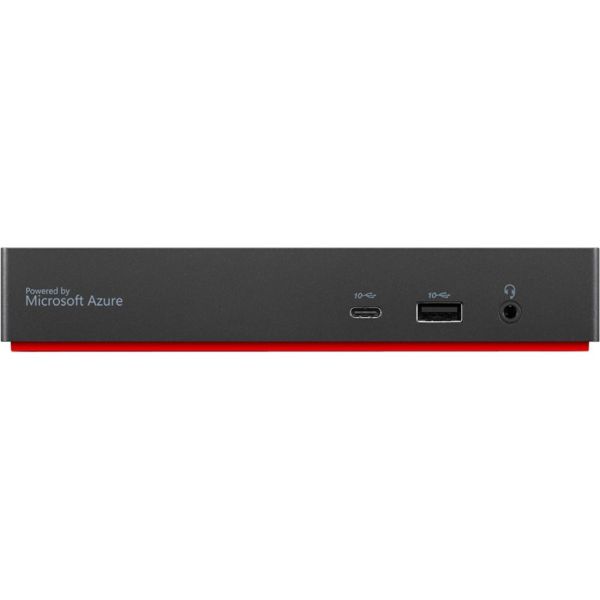

Lenovo ThinkPad Universal USB-C Smart Dock

Marketing Information
The Smarter Way To Work.

Designed to enhance everyday productivity, the Lenovo™ ThinkPad® Universal USB-C Smart Dock (40B2) is at the cutting edge of our new series of docks offering a smarter way to work. A bridge to a more intelligent future, the dock features a rich array of data, display, and power ports, including universal USB-C compatibility, while driving incredible performance for commercial users and a secure cloud-based management solution for IT managers. And it's all powered by Microsoft Azure Sphere.

Features Include:

• One Cable For All Your Needs: The ThinkPad Universal Thunderbolt™ 4 Smart Dock adds 11+ productivity-enhancing ports to your PC in a single cable. Wit...h support for one 8K monitor or up to four 4K monitors, 40 Gbps data speeds via Thunderbolt™ 4, and 10 Gbps via USB-A, and rapid-charging for up to 100W laptops, you can
  drastically expand the potential of your workspace with ease.
• Universal Dock Compatibility: Get more longevity from your dock with the forward-thinking universal design of the ThinkPad Universal Thunderbolt™ 4 Smart Dock that
  supports Thunderbolt™ 3 and 4, USB 4™, USB-C, and extended compatibility with a wide range of brands and Multi-OS notebooks.
• Innovative Remote Management: Enter a new age of dock management with efficiency-enhancing innovations such as remote firmware updates without a PC connected, remote port management, data analytics reporting, diagnostic tools, and enterprise security assurance that aim to streamline the workflow of IT managers and boost their productivity.

Specifications
Manufacturer: Lenovo Group Limited
Manufacturer Part Number: 40B20135UK
Manufacturer Website Address: http://www.lenovo.com/uk/en/
Brand Name: Lenovo
Product Name: ThinkPad Universal USB-C Smart Dock
Product Type: Docking Station
Technical Information
Connectivity Technology: Wired
Device Supported:

• Notebook
• Desktop PC

Screen Mode Supported: 4K
Supported Resolutions: 3840 x 2160
Network & Communication
Ethernet Technology: Gigabit Ethernet
Interfaces/Ports
Host Interface: USB Type C
Number of USB 2.0 Ports: 2
USB Type-C: Yes
Network (RJ-45): Yes
Number of DisplayPorts: 2
DisplayPort: Yes
Headphone/Microphone Combo Port: Yes
Number of HDMI Ports: 1
HDMI: Yes
Software
Operating System Supported: Windows
Power Description
Maximum Power Supply Wattage: 96 W
Physical Characteristics
Height: 30.8 mm
Depth: 80 mm
Weight (Approximate): 388 g
Miscellaneous
Package Contents:

• ThinkPad Universal USB-C Smart Dock
• 135W AC Power Adapter (Slim Tip)
• Power Cord
• Publications
• Cable

Compatibility:

Lenovo ThinkPad Notebook

Brand Compatibility: Lenovo
Warranty
Limited Warranty: 3 Year
