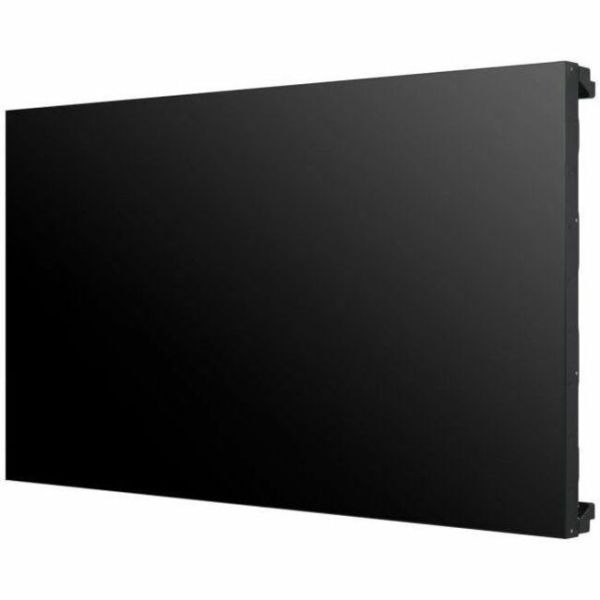

LG 55VL5F-A Digital Signage Display

Marketing Information

Incredible Immersion with Ultra-Narrow Bezel

The VL5F series video wall provides an immersive experience thanks to its ultra-narrow 3.5 mm bezel-to-bezel, while its outstanding IPS panel delivers a clear image from virtually any angle. The design of this video wall display is attractive and highly functional and can be used to deliver advertising and information in a variety of business environments.

Achieving Incredible Immersion

3.5mm Ultra-narrow Bezel

The 3.5mm ultra-narrow bezel of the 55VL5F-A video wall creates a visually stunning digital wall that delivers dynamic content and immerses the viewer. The 55" screens can be combined to create a virtually seamless large screen.

A...chieving Incredible Immersion

Image Gap Reduction

The VL5F series includes an image improvement algorithm that can reduce image gaps among tiled displays when playing back videos. Objects located on the bezel boundaries are adjusted for a virtually seamless viewing experience.

Vivid and Dynamic Picture Quality

Higher Viewing Angle

Large screens are usually positioned higher than human-eye level, making uniform picture quality essential for video walls. The viewing angle of the VL5F series is high enough to display vivid colors throughout the screen with virtually no distortion.

Vivid and Dynamic Picture Quality

Wider Viewing Angle

It is well known that LG IPS panel technology enables better control of liquid crystals, which in turn allows the screen to be viewed from virtually any angle. Because of this, the VL5F series captures the attention of and captivates more viewers with lifelike colors, regardless of their viewing position.

User Convenience

Easy Color Adjustment

Depending on the content, the color temperature of the display can be easily adjusted in increments of 100K using a remote control.

User Convenience

Simple White Balance Adjustment

In conventional video walls, white balance was adjustable only in "full-white" mode, but the VL5F series allows you to modify each value of grey scale to achieve more detailed and precise white balance adjustment.

User Convenience

User-Friendly Menu Structure

The menu structure has been optimized for commercial use. It simplifies approach flows and groups similar functions together, adopting a more intuitive GUI for ease of use. This way, users can avoid having to do trial-and-error when exploring desired functions and managing displays.

User Convenience

Intuitive GUI

The GUI (Graphic User Interface) is carefully designed with a four-way navigation remote control that lets users easily switch to other settings. Also, it adopts a larger font for better visibility, which may be necessary when users want to control displays from relatively far distances.

Specifications
Manufacturer: LG Electronics
Manufacturer Part Number: 55VL5F-A
Manufacturer Website Address: http://www.lge.co.uk
Brand Name: LG
Product Series: VL5F
Product Model: 55VL5F-A
Product Name: 55VL5F-A Digital Signage Display
Product Type: Digital Signage Display
Technical Information
Video Wall Compatible: Yes
Bezel Width (Bottom): 1.25 mm
Bezel Width (Top): 2.25 mm
Bezel Width (Left): 2.25 mm
Bezel Width (Right): 1.25 mm
Display & Graphics
Viewable Screen Size: 55"
Display Screen Type: LCD
Display Resolution: 1920 x 1080
Backlight Technology: LED
Maximum LED Life: 6.8 Year
Video
Scan Format: 1080p
Dynamic Contrast Ratio: 500,000:1
Brightness: 500 cd/m²
Network & Communication
Ethernet: Yes
Interfaces/Ports
USB: Yes
DVI: Yes
HDMI: Yes
Serial: Yes
Number of HDMI Inputs: 2
Environmental Conditions
Minimum Operating Temperature: 0°C
Maximum Operating Temperature: 40°C
Minimum Operating Humidity: 10%
Maximum Operating Humidity: 80%
Physical Characteristics
Color Family: Black
Product Color: Black
Bezel Color: Black
VESA Mount Compatible: Yes
VESA Mount Standard: 600 x 400
Height: 68.4 cm
Width: 121.3 cm
Depth: 9.3 cm
Weight (Approximate): 20.30 kg
Miscellaneous
Energy Star: Yes
