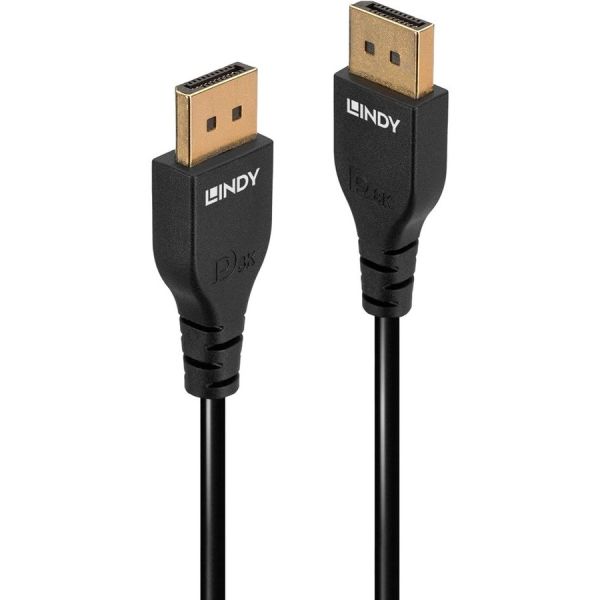

LINDY 1m Slim DisplayPort 1.4 Cable

Marketing Information

• Professional choice slim DisplayPort 1.4 cable with low profile connectors
• Supports UHD resolutions up to 8K 7680x4320@60Hz 4:2:2 8bit and 4K 4096x2160@144Hz 4:2:2 10bit
• Robust ABS housing with 24K gold-plated connectors and contacts
• Triple shielded cable, corrosion resistant tinned copper 30AWG conductors
• 10-year warranty

Lindy's range of slim DisplayPort cables provide a more flexible and high-quality DP connection solution, utilising a specially designed compact, low profile connector and a smaller diameter cable structure.

With their compact, high performance design, these cables are ideal for situations where space is limited around source & display ports, such as with gaming monitors or graphics cards. Their triple shielded 30AWG pure copper conductors ensure overall improved performance, while gold-flashed phosphor bronze pins protect against corrosion and fatigue. High quality 24K gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.

Supporting DP 1.4 resolutions including 8K@60Hz and 4K@144Hz, these cables are great for high-level gaming setups, whether in the home or in an eSports arena, or alternatively with small-scale, digital signage installs such as Shop-in-Shops or concession stands. With lengths available in 0.5, 1, 2 and 3m, they are also a versatile solution for collaborative huddle spaces or engaging education setups when combined with a touch panel or LFD (large format display).

Specifications
Manufacturer: Lindy Electronics
Manufacturer Part Number: 36461
Manufacturer Website Address: http://www.lindy.com
Brand Name: LINDY
Product Name: 1m Slim DisplayPort 1.4 Cable
Product Type: A/V Cable
Technical Information
Cable Type: DisplayPort
Cable Length: 1 m
Connector Type on First End: DisplayPort 1.4 Digital Audio/Video - Male
Connector on First End Details: 1 x DisplayPort 1.4 Digital Audio/Video - Male
Connector Type on Second End: DisplayPort 1.4 Digital Audio/Video - Male
Connector on Second End Details: DisplayPort 1.4 Digital Audio/Video - Male
Connector Plating: Gold
Contact Plating: Gold
Shielding: Yes
Device Supported:

• Audio/Video Device
• Gaming Monitor
• Graphic Card
• Touch Panel
• Large Format Display (LFD)

American Wire Gauge: 30 AWG
Data Transfer Rate: 32.4 Gbit/s
Supported Resolution: 7680 x 4320
Features:

• Corrosion Resistant
• Flexible
• Bendable
• Passive

Physical Characteristics
Color Family: Black
Product Color: Black
Product Material:

• ABS
• Tinned Copper
• PVC
• Copper

Contact Material:

• Gold-flash
• Phosphor Bronze

Shielding Material: Tinned Copper Braid
Jacket Material: Polyvinyl Chloride (PVC)
Material Details:

• ABS - Housing
• Tinned Copper - Conductor
• Gold-Flashed Phosphor Bronze - Pins
• Copper - Conductor

Warranty
Limited Warranty: 10 Year
