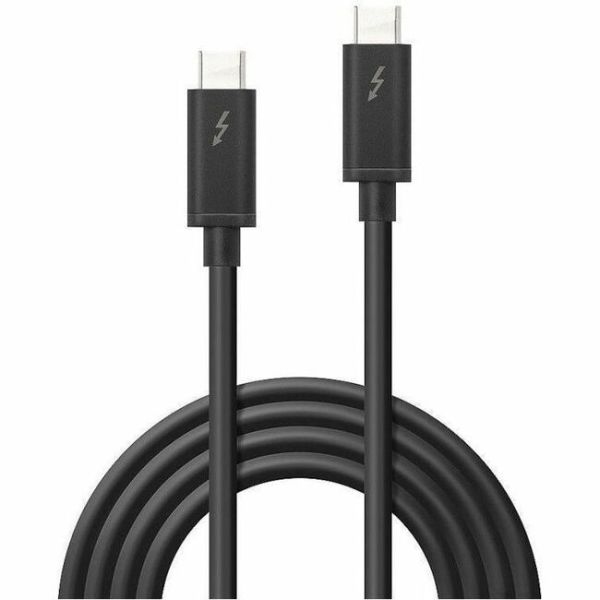

LINDY 1m Thunderbolt 3 Cable, Passive

Marketing Information

The Lindy Thunderbolt 3 cable provides the ability to connect up to 6 devices to your Thunderbolt 3 Port when daisy-chained, while utilising the USB Type C connection for ease of use. Combine this with Data, Power and Video this truly is the single cable solution.

Data

Fast Data transfer of up to 20Gbps from a single connection, twice that of previous Thunderbolt 2. Combined with PCI Express Gen 3 and DisplayPort 1.2 the application list is huge. An example would be using an external GPU dock for your notebook providing high end gaming graphics from a light portable computer.

4K Video

Thunderbolt 3 technology allows the use of two external displays up to 4K60Hz each whist also simultaneously providing ...other features like high speed data and power.

Power Delivery

By incorporating technology based on USB PD this allows Thunderbolt cables to provide up to 100W of power over the single connection. Legacy devices can also take advantage of up to 15W of power.

USB Type C

The cable uses a fully reversible connector for attaching to your device quickly. The Thunderbolt host port uses an integrated USB 3.1 controller for maximum backwards compatibility at 10Gbps speeds.

Daisy-Chaining

Support for up to 6 external devices including GPU docks, Storage Enclosures and Docking Stations.

Thunderbolt Networking

Provides a 10Gbps Ethernet link between devices

Single Cable Docking

Combine two external displays, power delivery, Ethernet and USB connectivity this provides the ultimate single cable docking solution.

Specifications
Manufacturer: Lindy Electronics
Manufacturer Part Number: 41556
Manufacturer Website Address: http://www.lindy.com
Brand Name: LINDY
Product Name: 1m Thunderbolt 3 Cable, Passive
Product Type: AV/Data Transfer Cable
Technical Information
Cable Type: Thunderbolt 3
Cable Length: 1 m
Connector Type on First End: USB Type C Thunderbolt 3 - Male
Connector Gender on First End: Male
Connector on First End Details: 1x 24 pin USB type C Thunderbolt 3 - Male
Connector Type on Second End: USB Type C Thunderbolt 3 - Male
Connector Gender on Second End: Male
Connector on Second End Details: 1x 24 pin USB type C Thunderbolt 3 - Male
Device Supported:

• Display
• Notebook
• Graphic Card
• Docking Station
• Storage Enclosure

Data Transfer Rate: 20 Gbit/s
Supported Resolution: 4096 x 2160
Features:

• Passive
• Power Delivery 2.0
• USB- Power Delivery (USB PD)
• Reversible
• High Bit Rate 2 (HBR2)
• Multi-Stream Transport (MST) Support

Physical Characteristics
Color Family: Black
Product Color: Black
Warranty
Limited Warranty: 10 Year
