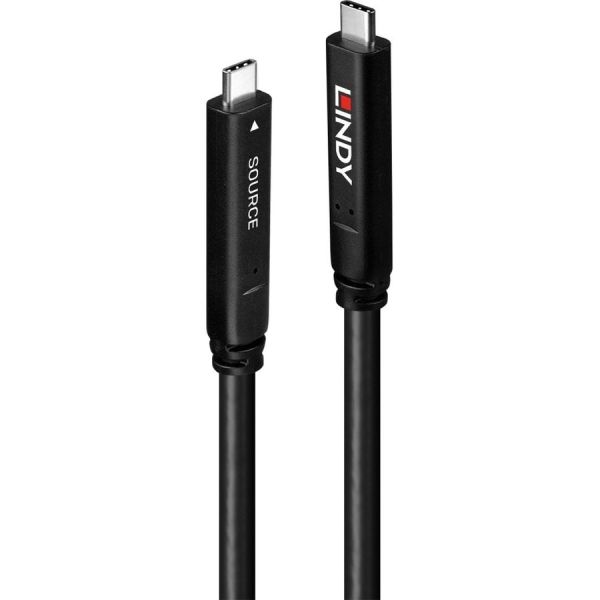

LINDY 10m USB 3.2 Gen 2 & DP 1.4 Type C Hybrid Cable

Marketing Information

• 10m USB 3.2 Gen 2 & DP 1.4 Type C Hybrid Cable for data and video extension
• Data transfer rates up to 10Gbps
• Supports DisplayPort 1.4 Alternate Mode with video resolutions up to 4K 3840x2160@60Hz
• Supports Power Delivery up to 60W (20V 3A)
• 2 year warranty

The Lindy USB 3.2 Gen 2 & DP 1.4 Type C Hybrid Cable is a unique solution, which uses optical fiber as high-speed transmission medium to perfectly transmit USB 3.2 as well as DP 1.4 data over a distance of 10m. It combines data, video and USB Power Delivery into a single, high performance cable which makes it a great solution for use in modern meeting rooms and classrooms when connecting LFDs and touchpanels. A more fl...exible construction makes this cable simple to install, with increased resistance to RFI/EMI ensures that the cable can be installed in sensitive environments.

The cable also supports Power Delivery up to 60W (20V / 3A). Compatible with USB 3.2 Type C and Thunderbolt 3 equipped computers, this is a perfect extension tool for the latest laptops, Macbooks and Type C computers. With plug and play functionality, this extension cable can be installed quickly and with minimum fuss.

Please Note: When using resolutions above 3840x2160@30Hz, USB data transfer rates reduce to 5Gbps, and resolutions above 3840x2160@60Hz transfer rates reduce further to 480Mbps.

Information about USB 3.0, 3.1 & 3.2

USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.

USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps.

USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.

Specifications
Manufacturer: Lindy Electronics
Manufacturer Part Number: 43333
Manufacturer Website Address: http://www.lindy.com
Brand Name: LINDY
Product Name: 10m USB 3.2 Gen 2 & DP 1.4 Type C Hybrid Cable
Product Type: Video/Data Transfer Cable
Technical Information
Cable Type: Hybrid Fiber Optic
Cable Characteristic: Extension Cable
Fiber Optic Mode: Multi-mode
Fiber Optic Cable Core/Cladding Specification: 50/125 µm
Cable Length: 10 m
Connector Type on First End: USB 3.2 (Gen 2) Type C - Male
Connector on First End Details: 1 x USB 3.2 (Gen 2) Type C - Male
Connector Type on Second End: USB 3.2 (Gen 2) Type C - Male
Connector on Second End Details: 1 x USB 3.2 (Gen 2) Type C - Male
Connector Plating:

• Nickel
• Stainless Steel

Contact Plating: Gold
Shielding: Yes
Device Supported:

• Touch Panel
• MacBook
• Notebook
• PC
• Computer
• Large Format Display (LFD)

American Wire Gauge: 21 AWG
Data Transfer Rate: 10 Gbit/s
Supported Resolution: 3840 x 2160
Features:

• USB- Power Delivery (USB PD)
• Flexible
• EMI/RF Protection
• Bendable

Physical Characteristics
Color Family: Black
Product Color: Black
Product Material: Plastic
Contact Material:

• Gold
• Copper Alloy

Jacket Material: Polyvinyl Chloride (PVC)
Material Details: Plastic - Housing
Weight (Approximate): 760 g
Miscellaneous
Package Contents:

• 10m USB 3.2 Gen 2 & DP 1.4 Type C Hybrid Cable
• Lindy Manual

Warranty
Limited Warranty: 2 Year
