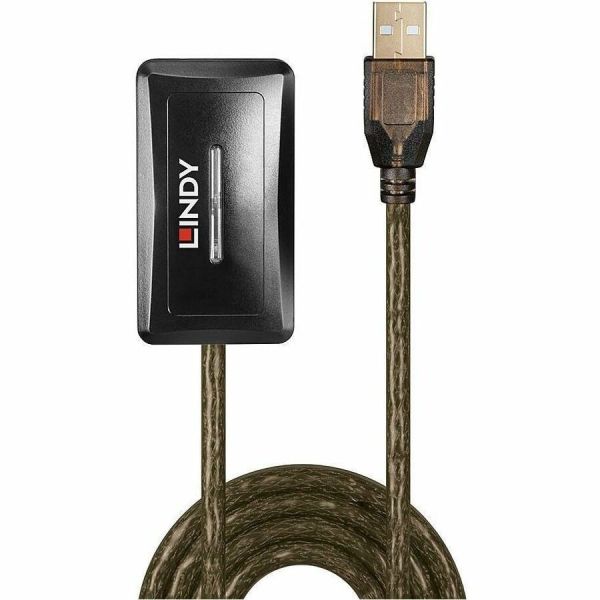

LINDY 10m USB 2.0 Active Extension Hub

Marketing Information

• Extend the cable length of up to 4 USB 2.0 devices by 10m
• Supports USB 2.0 HighSpeed transfer rates of up to 480Mbps
• For even greater distances simply connect 2 USB 2.0 Active Extension Hubs in series
• Plug & Play
• 2 year warranty

The Lindy USB 2.0 Active Extension Hub uses built-in active electronics to extend the cable length of up to four USB 2.0 devices by an additional 10m whilst continuing to support data transfer rates of up to 480Mbps. With its USB A male and four USB A female connectors it allows multiple Type A devices such as storage devices, webcams and other Type A devices to be connected at longer distances to PCs, laptops and tablets, while also ensuri...ng flexible positioning. Up to 2 USB 2.0 Active Extension Hubs can be chained together to achieve a distance of 20m.

The Lindy USB 2.0 Active Extension Hub is compatible with all USB Type A equipped computers. With plug and play functionality, it can be installed quickly and with minimum fuss. It also features a DC socket for connecting an external power supply (not included) when using USB peripherals which have higher power requirements.

Specifications
Manufacturer: Lindy Electronics
Manufacturer Part Number: 42635
Manufacturer Website Address: http://www.lindy.com
Brand Name: LINDY
Product Name: 10m USB 2.0 Active Extension Hub
Product Type: Data Transfer Cable
Technical Information
Cable Type: USB
Cable Characteristic: Extension Cable
Cable Length: 10 m
Connector Type on First End: USB 2.0 Type A - Male
Connector Gender on First End: Male
Connector on First End Details: 1 x USB 2.0 Type A - Male
Connector Type on Second End: USB 2.0 Type A - Female
Connector Gender on Second End: Female
Connector on Second End Details: 4 x USB 2.0 Type A - Female
Connector Plating: Gold
Contact Plating: Gold
Shielding: Yes
Device Supported:

• Storage Device
• Webcam
• PC
• Notebook
• Tablet

American Wire Gauge: 28/24 AWG
Data Transfer Rate: 480 Mbit/s
Features:

• Active
• Bendable
• Plug & Play

Physical Characteristics
Color Family: Dual Colour
Product Color:

• Transparent Gray
• Black

Product Material:

• Plastic
• Tinned Copper

Contact Material: Copper
Shielding Material: Braided Aluminum Magnesium
Jacket Material: Polyvinyl Chloride (PVC)
Material Details:

• Housing Material - Plastic
• Pin Construction - Copper
• Conductor Material - Tinned Copper

Weight (Approximate): 310 g
Warranty
Limited Warranty: 2 Year
