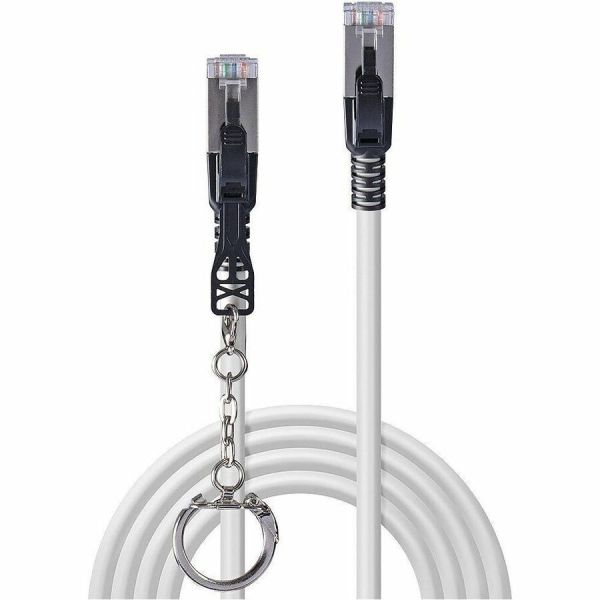

LINDY 20m Cat.6A S/FTP Locking Network Cable, Grey

Marketing Information

• Twisted Pair Patch Cable with RJ45 connectors
• Fully tamper resistant key required to release the secure lock
• Cat.6A S/FTP PIMF, LSZH
• Integrated snagless connector for latch protection
• Gold plated pins for better conductivity and elimination of signal loss
• 10 year warranty

The Lindy Cat.6A Locking Network Cable is a simple yet highly effective way of preventing accidental or malicious removal of cables on your network. Fully tamper resistant, Security key locks in the plug for added physical security allowing for removal only with the supplied key.

Cat.6A S/FTP network cable with support for bandwidth up to 500MHz and features a snagless design with gold plated contacts for ethernet standards up to 10 GBase-T.

Cat.6A cable, shielded with braid as overall shield and foil shield for the individual wire pairs (S/FTP). Cat.6A cables meet the requirements of 10 Gigabit Ethernet (10GBaseT) with an operating frequency of up to 500MHz. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.

The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.

The halogen-free sheath material of the LSZH cable makes the product suitable for use in public spaces with its low smoke emission and elimination of toxic halogen emissions.

Specifications
Manufacturer: Lindy Electronics
Manufacturer Part Number: 47609
Manufacturer Website Address: http://www.lindy.com
Brand Name: LINDY
Product Name: 20m Cat.6A S/FTP Locking Network Cable, Grey
Product Type: Network Cable
Technical Information
Cable Type: Category 6a
Cable Characteristic: Patch Cable
Cable Length: 20 m
Connector Type on First End: RJ-45 Network - Male
Connector Gender on First End: Male
Connector on First End Details: 1 x RJ-45 Network - Male
Connector Type on Second End: RJ-45 Network - Male
Connector Gender on Second End: Male
Connector on Second End Details: 1 x RJ-45 Network - Male
Connector Plating: Nickel
Contact Plating: Gold
Shielding: Yes
Jacket Type: LSZH
Device Supported: Network Device
American Wire Gauge: 26 AWG
Data Transfer Rate: 10 Gbit/s
Features:

• Locking Connector
• Tamper-free
• Snag Resistant
• Latch Protection
• Braided
• Corrosion-free
• Strain Relief
• Damage Resistant
• Latching Connector
• Halogen Free
• Bendable
• Lockable
• Key Locking
• Pairs in Metal Foil (PIMF)

Physical Characteristics
Product Color: Grey
Product Material:

• Polycarbonate
• Copper

Contact Material: Brass
Shielding Material:

• Foil
• Braided Aluminum

Jacket Material: Low Smoke Zero Halogen
Material Details:

• Polycarbonate - Housing
• Copper - Conductor

Warranty
Limited Warranty: 10 Year
