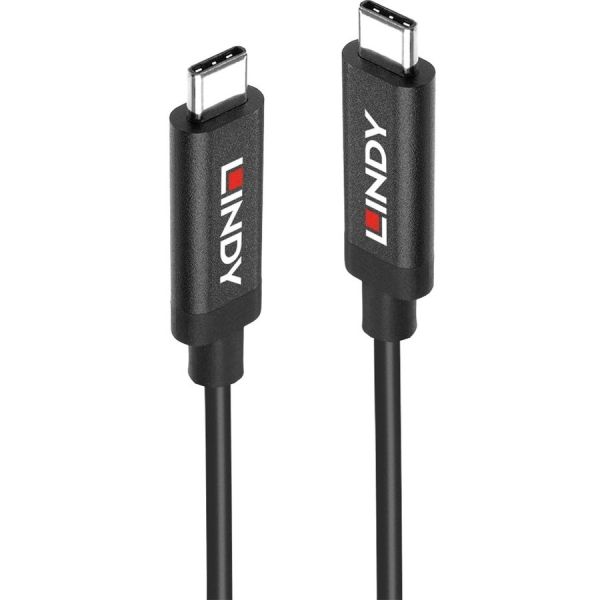

LINDY 5m Active USB 3.2 Gen 2 C/C Cable

Marketing Information

• 5 metre USB 3.1 Gen 2 Active Cable for data and video extension
• Data transfer rates up to 10Gbps
• Supports DisplayPort 1.4 Alternate Mode
• Supports video resolutions up to UHD 8K 7680x4320@60Hz including 4K 4096x2160@120Hz
• 2 year warranty

USB active cables allow users to extend the connection distance between two USB devices. These cables feature integrated active electronics to boost the signal for high speed data transfer.

The Lindy USB 3.1 Gen 2 Active Cable uses built-in active electronics to extend the cable length of a USB 3.1 device by an additional 5m whilst continuing to support fast and efficient data transfer rates of up to 10Gbps as well as Displayport 1.4 Alternate M...ode. It combines data, video and USB Power Delivery into one cable which makes it a great solution for use in modern meeting rooms and classrooms when connecting LFDs and touchpanels.

When sending DP 1.4 signals, only USB 2.0 up to 480Mbps can be supported. USB 3.1 Gen 2 with data rates up to 10Gbps can be achieved when sending DP 1.2 signals with resolutions up to 4K 60Hz. The cable also supports Power Delivery up to 60W (20V / 3A). Compatible with USB 3.1 Type C and Thunderbolt 3 equipped computers, this is a perfect extension tool for the latest laptops, Macbooks and Type C computers. With plug and play functionality, this extension cable can be installed quickly and with minimum fuss.

Specifications
Manufacturer: Lindy Electronics
Manufacturer Part Number: 43308
Manufacturer Website Address: http://www.lindy.com
Brand Name: LINDY
Product Name: 5m Active USB 3.2 Gen 2 C/C Cable
Product Type: AV/Data Transfer Cable
Technical Information
Cable Type: USB-C
Cable Characteristic: Extension Cable
Cable Length: 5 m
Connector Type on First End: USB 3.2 (Gen 2) Type C Thunderbolt 3 - Male
Connector on First End Details: 1 x USB 3.2 (Gen 2) Type C Thunderbolt 3 - Male
Connector Type on Second End: USB 3.2 (Gen 2) Type C Thunderbolt 3 - Male
Connector on Second End Details: 1 x USB 3.2 (Gen 2) Type C Thunderbolt 3 - Male
Connector Plating: Nickel
Contact Plating: Gold
Shielding: Yes
Device Supported:

• Large Format Display (LFD)
• Touch Panel
• Computer
• Notebook
• MacBook
• PC
• Audio/Video Device

American Wire Gauge: 31/32/34 AWG
Data Transfer Rate: 10 Gbit/s
Supported Resolution: 7680 x 4320
Features:

• Active
• USB- Power Delivery (USB PD)
• Plug & Play
• Bendable
• Signal Booster

Physical Characteristics
Color Family: Black
Product Color: Black
Product Material:

• Molded Polyvinyl Chloride (PVC)
• Tinned Copper

Contact Material: Copper
Shielding Material: Tinned Copper
Jacket Material: Thermoplastic Elastomer (TPE)
Material Details:

• Tinned Copper - Conductor
• Molded Polyvinyl Chloride (PVC) - Housing

Weight (Approximate): 200 g
Warranty
Limited Warranty: 2 Year
