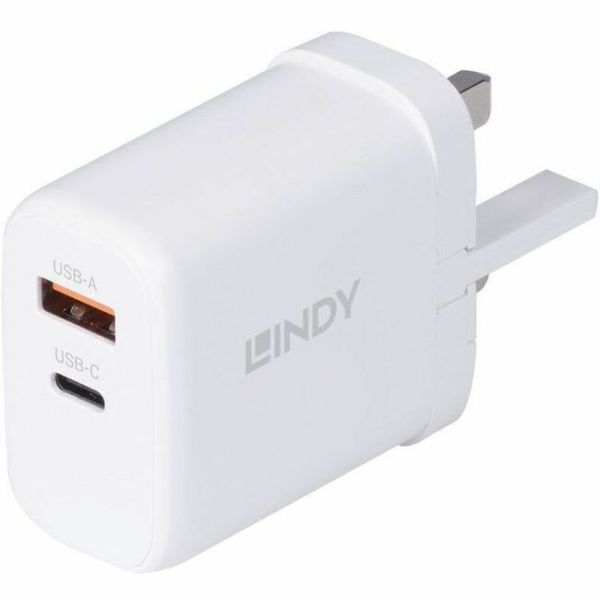

LINDY 65W USB Type A & C GaN Charger

Marketing Information

• Charges and powers two devices simultaneously via a USB Type C and a USB Type A port
• 65W GaN technology via the USB Type C port provides fast charging for smartphones, tablets, laptops and other mobile devices
• Compact design for maximum mobility
• Built-in safety features such as overvoltage and overcurrent protection
• 2 year warranty

The Lindy 65W USB Type A & C GaN Charger can charge two devices simultaneously. 65W Power Delivery and PPS are supported by the USB Type C port while the USB Type A port provides fast charging with up to 45W. When both ports are used in parallel a maximum power of 20W will be provided.

Featuring both a USB Type C female and a USB Type A female ...port this charger is ideal for use with most popular smartphones and iOS devices. Supporting power delivery of 65W and PPS (Programmable Power Supply), connected devices can be provided with faster and smarter charging than what is possible from a standard Type C charger supplied with many devices; it can modify voltage and current in real-time by feeding maximum power based on a device's charging status.

For safe charging the device includes overcharge, overcurrent, overtemperature and short circuit protection. As this charger is rated at Level 6 for efficiency, it also meets the highest current level of energy efficiency standards.

Specifications
Manufacturer: Lindy Electronics
Manufacturer Part Number: 73429
Manufacturer Website Address: http://www.lindy.com
Brand Name: LINDY
Product Name: 65W USB Type A & C GaN Charger
Product Type: AC Adapter
Technical Information
Device Supported:

• Smartphone
• Tablet PC
• Notebook
• Mobile Device
• iOS Device

Universal Adapter: Yes
Interfaces/Ports
USB: Yes
Number of USB Ports: 1
USB Type-C: Yes
Number of USB Type-C Ports: 1
USB Power Delivery: 1 x Type-C 65W
Power Description
Input Voltage:

• 120 V AC
• 230 V AC

Input Voltage Range: 100 V AC - 240 V AC
Frequency:

• 50 Hz
• 60 Hz

Output Voltage:

• 5 V DC
• 9 V DC
• 12 V DC
• 15 V DC
• 20 V DC
• 11 V DC
• 16 V DC

Maximum Output Power: 65 W
Maximum Input Current: 1.50 A
Maximum Output Current: 4.05 A
Physical Characteristics
Color Family: White
Product Color: White
Material Family: Polyvinyl Chloride (PVC)
Height: 41.6 mm
Width: 26.8 mm
Depth: 85.3 mm
Weight (Approximate): 40 g
Environmental Conditions
Minimum Operating Temperature: 0°C
Maximum Operating Temperature: 25°C
Minimum Storage Temperature: -20°C
Maximum Storage Temperature: 70°C
Miscellaneous
Package Contents:

• 65W USB Type A & C GaN Charger
• Lindy Manual

Energy Efficiency Compliance: Energy-related Products Directive (ErP)
Environmental Compliance:

• Restriction of Hazardous Substances (RoHS)
• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Warranty
Limited Warranty: 2 Year
