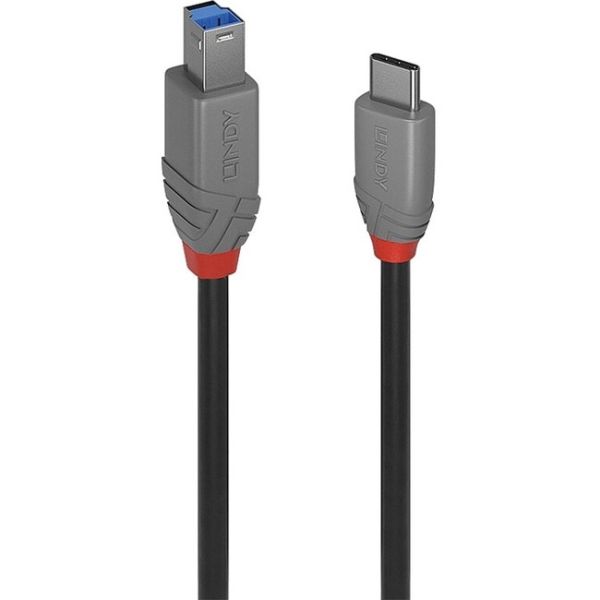

LINDY 1m USB 3.2 Type C to B Cable, Anthra Line

Marketing Information

• Professional choice USB 3.2 Gen 1 Type C to B cable for commercial and high performance AV and IT installations
• SuperSpeed USB - supports data transfer speeds up to 5Gbps (USB 3.0, USB 3.1 Gen 1)
• Robust PVC housing, gold plated contacts and nickel plated connectors
• Triple shielded cable, corrosion resistant tinned copper conductors
• 10 year warranty

The Anthra Line USB 3.2 Type C to B cables from Lindy's Cable Lines concept are the professional choice for high performance connections in commercial AV and IT installations.

They are premium connections that feature triple shielded construction with tinned copper conductors for performance and corrosion resistance. High quality gold plated contacts and nickel plated connectors maintain optimal signal integrity and maximum reliability.

USB bandwidths up to 5Gbps are supported for rapid transfer of large data volumes.

USB Type C features a reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation.

Anthra Line USB 3.2 Type C to B cables are available in the following lengths: 0.5m, 1m, 2m and 3m.

Specifications
Manufacturer: Lindy Electronics
Manufacturer Part Number: 36666
Manufacturer Website Address: http://www.lindy.com
Brand Name: LINDY
Product Line: Anthra Line
Product Name: 1m USB 3.2 Type C to B Cable, Anthra Line
Product Type: Data Transfer Cable
Technical Information
Cable Type: USB-C/USB-B
Cable Length: 1 m
Connector Type on First End: USB 3.2 (Gen 1) Type C - Male
Connector on First End Details: 1 x USB 3.2 (Gen 1) Type C - Male
Connector Type on Second End: USB 3.2 (Gen 1) Type B - Male
Connector on Second End Details: 1 x USB 3.2 (Gen 1) Type B - Male
Connector Plating: Nickel
Contact Plating: Gold
Shielding: Yes
Device Supported:

• Hard Drive
• Hub
• Docking Station
• Printer
• Tablet
• Notebook
• PC

American Wire Gauge: 22/30 AWG
Data Transfer Rate: 5 Gbit/s
Features:

• Bendable
• Triple Shielded
• Corrosion Resistant
• Reversible

Physical Characteristics
Product Color: Black
Product Material:

• Polyvinyl Chloride (PVC)
• Tinned Copper

Contact Material:

• Copper
• Brass

Shielding Material:

• Braided Copper
• Copper Foil

Jacket Material: Polyvinyl Chloride (PVC)
Material Details:

PVC - Housing
Tinned Copper - Conductor

Warranty
Limited Warranty: 10 Year
