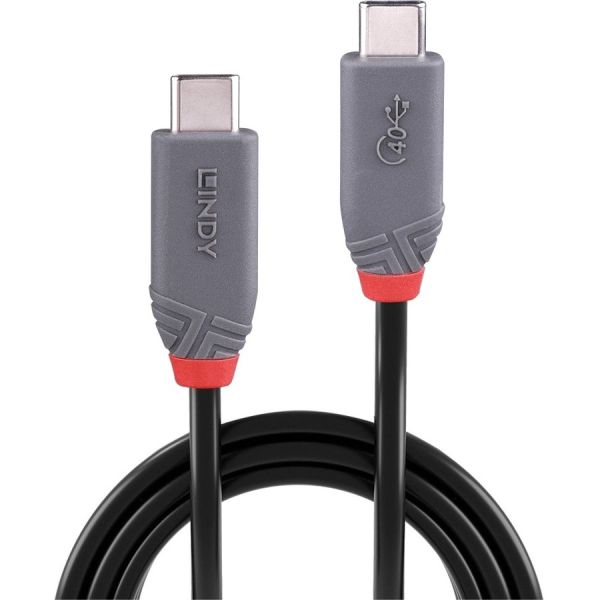

LINDY 0.8m USB 4 Type C Cable, Anthra Line

Marketing Information

• Professional choice USB 4 Gen 3x2 Type C to C cable for commercial and high performance AV and IT installations
• Supports data transfer speeds up to 40Gbps (backwards compatible to USB 3.2 , USB 2.0 and Thunderbolt 3)
• Supports DisplayPort 2.0 Alternate Mode and USB Power Delivery 3.0 up to 100 Watt (20V 5A)
• Triple shielded coaxial cable, gold plated contacts and nickel plated connectors
• 2 year warranty

The Anthra Line USB 4 Type C to C cable from Lindy's Cable Lines concept is the professional choice for high performance connections in commercial AV and IT installations.

Anthra Line USB 4 cables are premium connections that feature triple shielded construction with silver pl...ated copper conductors for performance and corrosion resistance. High quality gold plated contacts and nickel plated connectors maintain optimal signal integrity and maximum reliability.

USB bandwidths up to 40Gbps are supported for rapid transfer of large data volumes. These cables are E-marked to provide 100W (5A) of power to devices using the most efficient power delivery profiles.

USB Type C features a reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation.

Specifications
Manufacturer: Lindy Electronics
Manufacturer Part Number: 36947
Manufacturer Website Address: http://www.lindy.com
Brand Name: LINDY
Product Line: Anthra Line
Product Name: 0.8m USB 4 Type C Cable, Anthra Line
Product Type: A/V/Power/Data Transfer Cable
Technical Information
Cable Type: Coaxial
Cable Length: 80 cm
Connector Type on First End: USB4 (Gen 3x2) Type C - Male
Connector on First End Details: 1 x USB4 (Gen 3x2) Type C - Male
Connector Type on Second End: USB4 (Gen 3x2) Type C - Male
Connector on Second End Details: 1 x USB4 (Gen 3x2) Type C - Male
Connector Plating:

• Nickel
• Silver

Contact Plating: Gold
Device Supported: Audio/Video Device
American Wire Gauge: 23/30/33/34 AWG
Data Transfer Rate: 40 Gbit/s
Supported Resolution: 7680 x 4320
Features:

• Triple Shielded
• Corrosion Resistant
• Reversible
• Bendable
• Power Delivery 3.0

Physical Characteristics
Product Color: Black
Product Material: Silver-plated Copper
Contact Material:

• Copper
• Gold

Shielding Material: Tinned Copper
Jacket Material: Thermoplastic Elastomer (TPE)
Material Details: Silver-plated Copper - Conductor
Weight (Approximate): 40 g
Warranty
Limited Warranty: 2 Year
