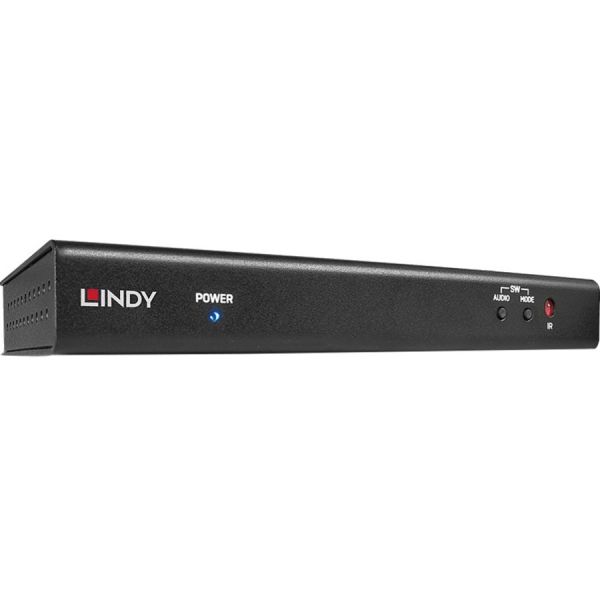

LINDY 4 Port HDMI Multi-View Switch

Marketing Information

• Integrates 4 Full HD 1080p signals for display on a single HDMI display
• Supports 4 viewing modes; Quadview, Picture & Picture, Dual Video and Standard
• Seamless switching between inputs/viewing modes
• Independent switching of audio and video signals
• 2 Year warranty

This HDMI 4x1 Multi-View Switch is a high performance video switch which allows signals from four different Full HD sources to be integrated for simultaneous display on a single monitor. Featuring four different viewing modes (Quad-View, Full Screen, Picture and Picture & Dual Video) the Multi-view switch allows for the monitoring of multiple video sources in different viewing configurations to meet the requirements of standa...rd installations.

To ensure optimal performance in mission critical environments the Switch provides seamless switching, ensuring that there is no frame loss whilst switching between the connected source devices or between different picture modes.

Full HD 1080p resolutions are supported on both the input and output for simple integration within typical business environments, whilst the output can be down-scaled to 720p for operation with legacy displays.

Switching between audio and video channels can be completed independently using either the supplied remote control or using the front panel buttons. This independent switching allows a single audio source to be used continuously whilst switching between the connected source devices or conversely a single video source to be monitored whilst the audio source is switched.

This flexible, cost effective switch has been designed to be used in a number of different applications, such as:

• Digital Presentation
• CCTV Surveillance & Control
• Conference & Meeting Room

Specifications
Manufacturer: Lindy Electronics
Manufacturer Part Number: 38150
Manufacturer Website Address: http://www.lindy.com
Brand Name: LINDY
Product Name: 4 Port HDMI Multi-View Switch
Product Type: Audio/Video Switchbox
Technical Information
Connectivity Technology: Cable
Number of Input Devices Supported: 4
Device Supported:

• Display
• CCTV

Number of Displays Supported: 1
Video
Graphics Modes: Full HD
Maximum Video Resolution: 1920 x 1080
Interfaces/Ports
HDMI In: Yes
HDMI Out: Yes
Number of HDMI Inputs: 4
Number of HDMI Outputs: 1
Physical Characteristics
Height: 23 mm
Width: 190 mm
Depth: 90 mm
Weight (Approximate): 852.8 g
Miscellaneous
Package Contents:

• 4 Port HDMI Multi-View Switch
• IR Remote control with CR2025 battery
• Multi-Country Power Supply (EU, UK, US & AUS)
• Lindy Manual

Warranty
Limited Warranty: 2 Year
