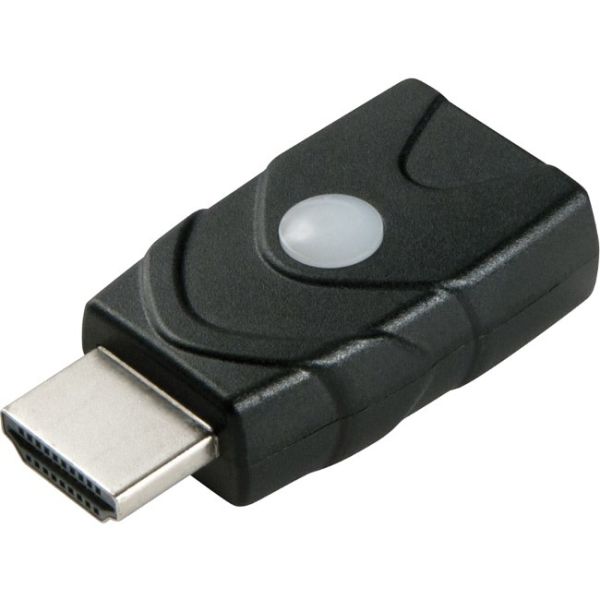

LINDY HDMI 2.0 EDID Emulator, HDCP 2.2

Marketing Information

• Supports EDID learning or Preset Emulation
• 15 Pre-set EDID modes with blocks for AV and PC applications
• Supports resolutions up to Ultra HD 4K 60Hz including HDCP 2.2 pass-through
• Powered via HDMI source interface
• 2 Year Warranty

The Lindy HDMI 2.0 EDID Emulator Adapter is designed for systems that require EDID signals to be continuously provided without interruption and helps overcome EDID related problems which can occur when using AV/KVM Extenders, Switches and Splitters. The Emulator can solve a host of compatibility problems when using mixed equipment, especially extenders. With support for resolutions up to Ultra HD 4K 60Hz and with the ability to pass -through HDCP 2.2 content... the Emulator is suitable for use with the very latest PC and AV applications.

Some computer systems, KVM switches and digital video signage systems may interrupt the flow of EDID data, or may not be able to pass this information directly back to the video card's output port. This adapter can be used to quickly and easily clone the EDID data from a HDMI display so that the graphics card has direct access to the correct data from the display, the cloning process takes less than 10 seconds!

It is also possible to use the Emulator without cloning a display as it comes complete with preset EDID data for the most commonly used resolution/timing combinations, please see the Technical Information section for a full breakdown.

Specifications
Manufacturer: Lindy Electronics
Manufacturer Part Number: 32114
Manufacturer Website Address: http://www.lindy.com
Brand Name: LINDY
Product Name: HDMI 2.0 EDID Emulator, HDCP 2.2
Packaged Quantity: 1
Product Type: A/V Adapter
Technical Information
Adapter Type: HDMI
Connector Type on First End: HDMI 2.0 Type A Digital Audio/Video - Male
Connector on First End Details: 1 x HDMI (Type A) HDMI 2.0 Digital Audio/Video Male
Connector Type on Second End: HDMI 2.0 Type A Digital Audio/Video - Female
Connector on Second End Details: 1 x HDMI (Type A) HDMI 2.0 Digital Audio/Video Female
Maximum Resolution Supported: 4096 x 2160
Features: HDCP 2.2
Physical Characteristics
Product Color: Black
Product Material: Plastic
Height: 12 mm
Width: 41 mm
Depth: 23 mm
Weight (Approximate): 11 g
Miscellaneous
Package Contents:

• HDMI 2.0 EDID Emulator, HDCP 2.2
• Manual

Warranty
Limited Warranty: 2 Year
