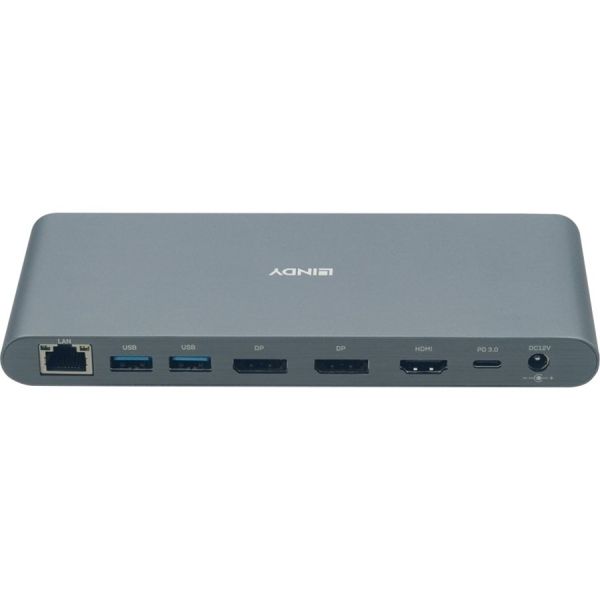

LINDY DST-Pro Docking Station

Marketing Information

The DST-Pro 5K is a feature packed docking station designed to deliver unrivalled video output. Housed in a robust aluminium body, this dock delivers great additional connectivity for your device. A space-saving stand is also included to help keep your workspace clutter-free.

Extended Displays

When it comes to external display resolution, this docking station stands out from the crowd. With support for a single display resolution of 5k@60Hz (DisplayPort), you can connect your laptop with some of the industry's leading displays and monitors. There is also support for dual display (5K@60Hz + 4K@60Hz) and triple display (1 x 4K@60Hz, 2 x 4K@30Hz) setups. So, whether you need one, two or three displays, simply plug in your... laptop and allow the DST-Pro 5K to provide Ultra HD resolutions through a single USB-C connection.

Added Connectivity

This docking station delivers great additional connectivity. SuperSpeed USB (5Gbps), Gigabit Ethernet, SD, microSD, HDMI, DisplayPort and a 3.5mm combo jack, are all featured. This allows for improved internet speeds, greater storage capacity and a comprehensive desktop experience.

Pass-through Charging

This docking station comes with a 24W PSU (Power Supply Unit). This is to ensure that there is enough power for the docking station to function without needing to take any power from your device's connected charger. Thanks to the integrated PD 3.0 port, you can plug your USB-C charger into the docking station and experience up to 100W pass-through charging (depending on the charger's capabilities). The USB-A port on the front of the dock also has support for Battery Charging 1.2 meaning you can charge mobile devices with 5V and up to 1.5A.

Plug-and-Play

This docking station does not require any driver installation. This allows for seamless large-scale implementation and a hassle-free experience.

Specifications
Manufacturer: Lindy Electronics
Manufacturer Part Number: 43349
Manufacturer Website Address: http://www.lindy.com
Brand Name: LINDY
Product Model: DST-Pro
Product Name: DST-Pro Docking Station
Product Type: Docking Station
Technical Information
Connectivity Technology: Wired
Device Supported:

• Monitor
• Notebook
• Desktop PC

Memory Card Reader: Yes
Memory Card Supported:

• SD
• microSD

Number of Displays Supported: 3
Screen Mode Supported:

• 4K
• 5K
• 8K

Supported Resolutions:

• 3840 x 2160
• 5120 x 2880
• 7680 x 4320
• 2560 x 1440

Network & Communication
Ethernet Technology: Gigabit Ethernet
Interfaces/Ports
Host Interface: USB Type C
Number of USB Type-A Ports: 3
Number of USB Type-C Ports: 1
USB Type-A: Yes
USB Type-C: Yes
Network (RJ-45): Yes
Number of RJ-45 Ports: 1
Number of DisplayPorts: 2
DisplayPort: Yes
Headphone/Microphone Combo Port: Yes
Number of HDMI Ports: 1
HDMI: Yes
Power Description
Maximum Power Supply Wattage: 100 W
Physical Characteristics
Color Family: Silver
Product Color: Silver
Height: 18 mm
Width: 180 mm
Depth: 77 mm
Weight (Approximate): 439 g
Miscellaneous
Package Contents:

• DST-Pro Docking Station
• 0.5m USB 3.2 Gen 1 Type C Male to Male Cable
• Multi-Country Power Supply 12V 2A
• Stand for Docking Station
• Lindy Manual

Environmental Compliance:

• Restriction of Hazardous Substances (RoHS)
• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Warranty
Limited Warranty: 2 Year
