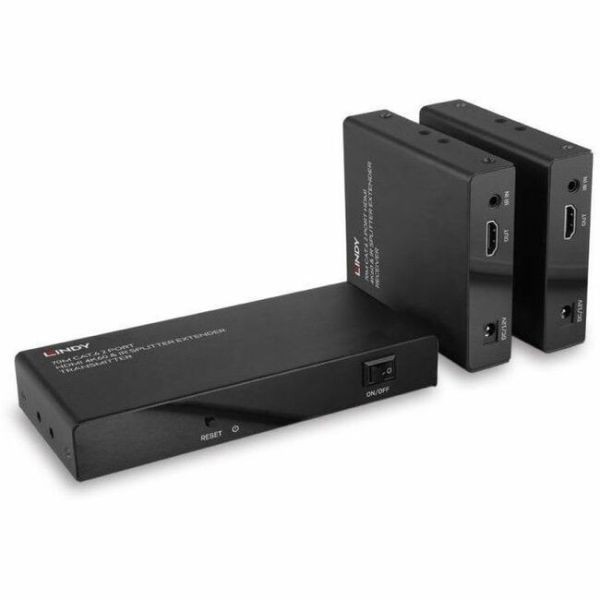

LINDY 70m Cat.6 2 Port HDMI 4K60 & IR Splitter Extender

Marketing Information

The Lindy 70m Cat.6 2 Port HDMI® 4K60 Splitter Extender is a simple, professional solution for distribution of 4K HDMI® signals to multiple displays using standard Cat.6 network cables.

Scalable Content Distribution

This Cat.6 splitter allows for distribution to up 2 remote locations using the included receivers, at up to 70m in distance, ideal for sharing content simultaneously in sports bars or events. The local output on the splitter allows for monitoring using a connected display, or alternatively can be combined with up to 2 additional Cat.6 splitters (same unit or the 4 port version 38262) for even larger scale content distribution.

Immersive 4K and HDR Support

With support for resolution...s up to 3840x2160@60Hz, this splitter ensures superior clarity of high-quality video, including movies, sports, games, or live monitoring. HDR support ensures a much wider colour gamut is visualised, alongside a higher peak brightness and deeper blacks for an enhanced dynamic contrast. This provides an eye-catching and engaging experience for the viewer in a variety of different applications including digital signage in retail, content delivery in lecture halls, or information broadcasting in travel hubs.

Seamless IR Control

The included IR cables allow for simple control via an IR remote from any of the receiver locations, removing the need to be situated at the source side on the setup.

Simultaneous PoC Distribution

The Cat.6 HDMI® 4K60 Splitter also support PoC (Power over cable) allowing for power to be distributed alongside audio and video over the cat.6 cabling. This allows for only one power source being required at the transmitter side, ensuring a minimalist and time-saving setup at the receiver locations.

Please Note: The quoted resolutions are possible with a direct connection between transmitter and receiver using good quality Cat.6 solid core cable. Using a different cable type, introducing wall plates, couplers or patch panels will result in a reduction of maximum distances.

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Specifications
Manufacturer: Lindy Electronics
Manufacturer Part Number: 38385
Manufacturer Website Address: http://www.lindy.com
Brand Name: LINDY
Product Name: 70m Cat.6 2 Port HDMI 4K60 & IR Splitter Extender
Product Type: Video Extender Transmitter
Technical Information
Connectivity Technology: Wired
Number of Output Devices Supported: 2
Maximum Operating Distance: 70 m
Video
Graphics Modes:

• 4K
• Full HD

Maximum Video Resolution: 3840 x 2160
Interfaces/Ports
Network (RJ-45): Yes
HDMI In: Yes
HDMI Out: Yes
Number of Network (RJ-45) Ports: 3
Number of HDMI Inputs: 1
Number of HDMI Outputs: 2
Remote (IR) Input: 1
Remote (IR) Output: 1
Media & Performance
Twisted Pair Cable Standard: Category 6
Physical Characteristics
Color Family: Black
Product Color: Black
Transmitter Height: 23 mm
Transmitter Width: 154 mm
Transmitter Depth: 103 mm
Receiver Height: 23 mm
Receiver Width: 100 mm
Receiver Depth: 88 mm
Transmitter Weight (Approximate): 263.1 g
Receiver Weight (Approximate): 199.6 g
Miscellaneous
Package Contents:

• 70m Cat.6 2 Port HDMI® 4K60 Splitter Extender
• 2 x Receivers
• IR Emitter Cable, 1.2m
• 2 x IR Receiver Cable, 1.2m
• 2 x Transmitter Mounting Brackets & Screws
• 4 x Receiver Mounting Brackets & Screws
• Multi-country Power Supply (UK, EU, US & AUS)
• Lindy Manual

Application/Usage:

• Display
• Gaming
• Digital Signage System
• Retail
• Lecture Hall

Environmental Compliance:

• Restriction of Hazardous Substances (RoHS)
• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Warranty
Limited Warranty: 2 Year
