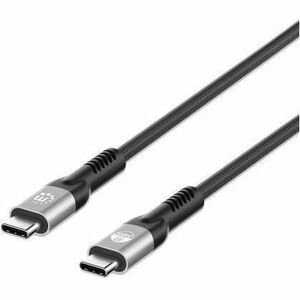

Manhattan USB4 Type-C 40 Gbps 8K Video and 240 W EPR Charging Cable / PD 3.

Marketing Information

USB4 240W 40G USB-C charging cable M/M withPower Delivery3.1 for the next generation of USB charging

This Manhattan USB4 Type-C Charging Cable is your future-proof connection for high-power USB chargers and laptops to come. It is compliant with the latest USB Power Delivery standard 3.1, which introduced Extended Power Range (EPR). Cables and devices with EPR support power up to 240 watts (48 V / 5 A), an increase that's nearly 2.5 times the 100 W (20 V / 5 A max.) limit of the Standard Power Range (SPR) in PD 3.0.

Superior wattage, backward compatible with older chargers

Such a superior wattage for USB-C has a lot of benefits: High-end devices like the latest 16" MacBook Pro^®or a modern gaming laptopalready take advantage of input power above 100 W, which they currently receive from a proprietary charging brick. Those bricks use custom DC tips that are not interchangeable between different brands. If you lose such a brick, it is frustrating and expensive to replace. The universal USB-C connector puts an end to that frustration, allowing notebooks from every manufacturer to be charged from any PD 3.1-compliant wall charger, power bank or charger. This is also why a new EU regulation requires laptops to be chargeable via USB-C starting in 2026. PD 3.1 is backward compatible with PD 3.0, so you can still use your legacy chargers with 140, 100, 65 W or lower.

Ultra-Fast 40G data transfer and 8K single-display or 4K dual-display resolution with USB4 (also known as USB 4.0)

Transfer movies, music, or an entire photo library quickly with 40 Gbps data transfer speeds on this cable. If you use it for video (e.g., with your docking station) it delivers images in brilliant 8K (7680 x 4320) at rapid 60 Hz or 4K UHD at blazing fast 144Hz with Dynamic HDR10 for perfect contrast and colors.

Strong shielding and heavy-duty braided jacket with flexible strain relief

The extremely durable molded aluminum boot absorbs the stress of frequent bends without damaging the core of the cable, while the braided jacket makes the cable virtually tangle-free. That combination resists cracking and protects from daily wear and tear or frequent in-car use. The double shielding (aluminum foil and braid) and corrosion-resistant contacts provide maximum signal integrity. The USB-C plugs are reversible, so they will always fit, no matter which way you insert them.

Specifications
Manufacturer: IC INTRACOM
Manufacturer Part Number: 356374
Manufacturer Website Address: http://www.icintracom.com
Brand Name: Manhattan
Product Name: USB4 Type-C 40 Gbps 8K Video and 240 W EPR Charging Cable / PD 3.
Product Type: Data Transfer Cable
Technical Information
Cable Type: Thunderbolt 4/USB-C
Cable Length: 1 m
Connector Type on First End: USB Type C Thunderbolt 4
Connector Gender on First End: Male
Connector on First End Details: 1 x 24-pin USB Type C Thunderbolt 4 - Male
Connector Type on Second End: USB Type C Thunderbolt 4
Connector Gender on Second End: Male
Connector on Second End Details: 1 x 24-pin USB Type C Thunderbolt 4 - Male
Connector Plating: Nickel
Contact Plating: Gold
Shielding: Yes
Device Supported:

• USB Charger
• Notebook
• MacBook Pro
• Gaming Notebook
• Power Bank
• Docking Station
• Phone
• Tablet
• Gaming Console

American Wire Gauge: 22/29 AWG
Data Transfer Rate: 40 Gbit/s
Supported Resolution: 7680 x 4320
Boot Type: Molded
Features:

• Charging
• Power Delivery 3.1
• HDR10 Support
• Flexible
• Strain Relief
• Stress Resistant
• Bendable
• Damage Resistant
• Tangle-free
• Crack Resistant
• Wear Resistant
• Tear Resistant
• Double Shielded
• Corrosion Resistant
• Reversible
• DisplayPort Alternate (ALT) Mode
• Braided
• Tangle Resistant
• EMI Protection
• Corrosion-free

Physical Characteristics
Color Family: Black
Product Color: Black
Shielding Material:

• Aluminum Foil
• Braided Aluminum

Material Details:

Aluminum - Boot

Bare Copper - Wire

Height: 5.8 mm
Width: 11.9 mm
Weight (Approximate): 40 g
Warranty
Limited Warranty: 3 Year
