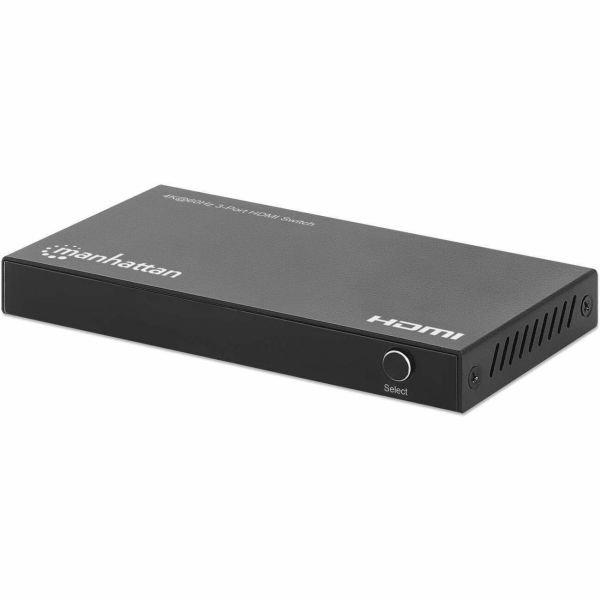

Manhattan 4K@60Hz 3-Port HDMI Switch

Marketing Information

3-Port HDMI Switch with 4K at 60Hz to easily connect multiple sources to a single display

The compact Manhattan 4K@60Hz 3-Port HDMI Switch lets you share an HDMI TV or projector with three HDMI sources without distorting or degrading your video. It features three independent video inputs that can each support 4K resolution at 60 Hz, making it the perfect solution for connecting and watching either video source on a display that has only one available HDMI port.

Brilliant colors and contrast with HDR and Dolby Vision™

With transmission bandwidth up to 18 Gbps, this HDMI ...switcher supports UHD resolutions up to 3840x2160 (4K) at 60Hz. For smooth video and color transitions, it offers 4:4:4 chroma subsampling, so every pixel gets its own unique color. Additional support for High-Dynamic Range (HDR) ensures that video content can be seen with enhanced brightness and superior contrasts.

Easy installation and wide compatibility

Full compliance with HDMI 2.0 and HDCP 2.2 ensures that this 3-way Switch can provide reliable performance. Quickly connect HDMI 2.0 cables (not included) and the USB-C power cable to complete this affordable Ultra-High-Definition, 4K HDMI solution - no software/hardware configuration or complicated settings required. Full backward compatibility with 4K@30Hz, 1080p and 720p displays ensures that it will work with any HDMI source or destination device. This 4K Switch is great for digital signage applications, where you want to display multiple source devices at different times or for sharing a projector between multiple sources.

Effortless operation with automatic or manual switching

This switch ensures effortless operation with automatic switching that detects and selects a newly turned on device, which is also useful when the unit is required to be out of sight. It supports manual operation too, using the included IR remote control or the built-in front panel toggle switch.

Specifications
Manufacturer: IC INTRACOM
Manufacturer Part Number: 208222
Manufacturer Website Address: http://www.icintracom.com
Brand Name: Manhattan
Product Name: 4K@60Hz 3-Port HDMI Switch
Package Type: Retail
Product Type: Audio/Video Switchbox
Technical Information
Connectivity Technology: Cable
Number of Input Devices Supported: 3
Device Supported:

• TV
• Projector
• Digital Signage
• Monitor
• Notebook
• Computer
• A/V Receiver
• Gaming Console
• PlayStation
• Xbox
• Blu-ray Disc Player
• Display

Number of Displays Supported: 1
Box Type: Switch Box
Video
Graphics Modes:

• 4K
• 4K UHD

Maximum Video Resolution: 3840 x 2160
Scan Format: 1080p
Interfaces/Ports
HDMI In: Yes
HDMI Out: Yes
USB: Yes
Number of USB Ports: 1
Number of HDMI Inputs: 3
Number of HDMI Outputs: 1
Physical Characteristics
Height: 14 mm
Width: 56 mm
Depth: 112 mm
Weight (Approximate): 128 g
Miscellaneous
Package Contents:

• 4K@60Hz 3-Port HDMI Switch
• USB-A to USB-C power cable, 1 m (3 ft.)
• IR remote control (requires two AAA batteries; not included)
• Instructions

Environmental Compliance:

• Restriction of Hazardous Substances (RoHS)
• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Warranty
Limited Warranty: 3 Year
