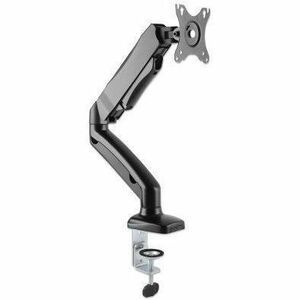

Manhattan Aluminum Gas Spring Single Monitor Desk Mount

Marketing Information

Articulating Monitor Arm with One-Touch Gas Spring Adjustment - ergonomic, full motion and height adjustable

Turn your (home) office desk into an ergonomic environment and reclaim valuable workspace with this Manhattan monitor mount. Since it uses a gas spring to hold your display, this monitor arm only needs a light touch to move your screen to the best viewing angle for you. The single-monitor VESA mount supports 17" to 32" displays with a weight capacity up to 9 kg (19.8 lbs.). An attractive black finish complements your workspace.

Light-touch height adjustment

A gas-spring cylinder makes it easy to raise or lower the display anywhere from 158 to 406 mm (6.2 to 16 in.) so it can sit in... the best place for your line of sight. Adjust the tension according to the weight of your monitor to reposition it effortlessly.

Full-motion view optimization

The full-motion arm lets you extend, tilt and swivel across multiple axes, so it's easy to create an ergonomic workspace that fits your exact needs. You can also rotate your monitor from landscape to portrait orientation to view photos in portrait mode or see longer pages and blocks of code without having to scroll down.

Easy installation

You can either clamp the mount to the side of a desk, table or counter that is 10 to 85 mm (0.4 to 3.4 in.) thick, or you can mount it through a grommet hole that is 10 to 85 mm (0.4 to 3.4 in.) wide. All the hardware you need is included in the box.

Clean cable management

Built-in cable management keeps the cords on your desk tidy and organized.

• Articulating double-link swing arm to support one 17" to 32" LED/LCD monitor up to 9 kg (19.8 lbs.)
• Optimized views with +90 to -45° tilt, 180° swivel and 158 to 406 mm (6.2 to 16 in.) height adjustment
• Gas spring for light-touch viewing adjustment
• Supports 360° rotation for landscape or portrait display orientation
• Mounting options: C-clamp at the edge of a desk (for surfaces 10 to 85 mm [0.4 to 3.4 in.] thick) or grommet mounting through a drilled hole (for grommets 10 to 85 mm [0.4 to 3.4 in.] wide)
• Built-in tension adjustment to suit the weight of your monitor
• Durable aluminum construction
• Built-in cable management to minimize clutter
• Ideal for (home) office, studio, IT network and security applications
• Easy and quick installation, all hardware included
• Meets VESA standards: 75x75, 100x100
• Three-year warranty

Specifications
Manufacturer: IC INTRACOM
Manufacturer Part Number: 462495
Manufacturer Website Address: http://www.icintracom.com
Brand Name: Manhattan
Product Name: Aluminum Gas Spring Single Monitor Desk Mount
Package Type: Retail
Product Type: Mounting Arm
Product Information
Device Supported:

• Monitor
• LED Monitor
• LCD Monitor
• Display
• Flat Panel Display
• Curved Screen Display

Number of Displays Supported: 1
Minimum Load Capacity: 2 kg
Maximum Load Capacity: 9 kg
Minimum Screen Size Supported: 43.2 cm
Maximum Screen Size Supported: 81.3 cm (32")
Features:

• Gas Spring
• Full Motion
• Tilt
• Swivel
• Rotation Stop
• Grommet
• Articulating Arm
• Adjustable Viewing Angle
• Ergonomic
• Cable Management
• Adjustable Tension
• Durable
• Easy One Touch
• Rotate
• Adjustable
• Easy to Install

Orientation: Landscape/Portrait
Height Adjustment Type: Gas Spring
Height Adjustable: Yes
Minimum Tilt Angle: -45°
Maximum Tilt Angle: 90°
Maximum Swivel Angle: 180°
Maximum Rotate Angle: 360°
Physical Characteristics
Color Family: Black
Product Color: Black
Finishing: Black
VESA Mount Compatible: Yes
Mounting Pattern:

• 75 x 75
• 100 x 100

Product Material: Aluminium
Form Factor: Desk
Height: 56.9 cm
Width: 11.7 cm
Length: 46.7 cm
Weight (Approximate): 2.23 kg
Miscellaneous
Package Contents:

• Aluminum Gas Spring Single Monitor Desk Mount
• Installation Hardware with Instructions

Application/Usage:

• Workspace
• Counter
• Studio
• Home Office
• IT Network

Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 3 Year
