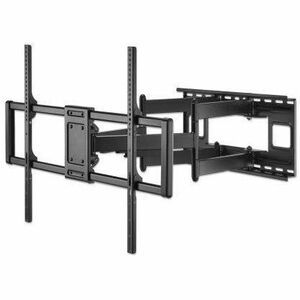

Manhattan Heavy-Duty Large-Screen Full-Motion TV Wall Mount

Marketing Information

Ultra Heavy-Duty XXL Articulating TV Wall Bracket - fully adjustable mounting bracket that puts big-screen TVs in the right perspective and avoids annoying glare

This super-strong full-motion TV Wall Mount Bracket from Manhattan safely holds your TV on two articulating arms and offers +5 to -15° tilt and +/-60° swivel adjustment for optimized views. Constructed of thick reinforced powder-coated steel up to 3 mm, this sturdy TV bracket fits flat and curved LCD, OLED or plasma TVs up to 120" and weighing up to 120 kg (264 lbs.) with VESA compliance up to 900x600. You're all set for a confident above-the-floor installation with an included bubble level and +/-5° post-leveling adjustment that helps get the mount perfectly hor...izontal on the wall. Intuitive quick-release latches let you easily and securely put the TV in place. It's ideal for residential, office, hospitality, classroom, conference room, digital signage and other commercial applications.

Specifications
Manufacturer: IC INTRACOM
Manufacturer Part Number: 462358
Manufacturer Website Address: http://www.icintracom.com
Brand Name: Manhattan
Product Name: Heavy-Duty Large-Screen Full-Motion TV Wall Mount
Package Type: Retail
Product Type: Mounting Bracket
Product Information
Device Supported:

• TV
• Flat Panel Display
• Curved Screen Display
• OLED TV
• LCD TV
• Plasma TV
• Display

Number of Displays Supported: 1
Maximum Load Capacity: 120 kg
Minimum Screen Size Supported: 152.4 cm
Maximum Screen Size Supported: 304.8 cm (120")
Features:

• Heavy Duty
• Full Motion
• +/- 60° Swivel
• -15° to 5° Tilt
• Bubble Level
• Articulating
• Anti-glare
• Sturdy
• Quick Release Mechanism
• Cable Management
• +/- 5° Level Adjustment

Orientation: Horizontal
Minimum Tilt Angle: 5°
Maximum Tilt Angle: 15°
Minimum Swivel Angle: -60°
Maximum Swivel Angle: 60°
Physical Characteristics
Color Family: Black
Product Color: Black
Finishing: Powder Coated
VESA Mount Compatible: Yes
Mounting Pattern:

• 200 x 200
• 900 x 600
• 300 x 200
• 400 x 200
• 300 x 300
• 400 x 300
• 400 x 400
• 600 x 400
• 800 x 400
• 800 x 600

Product Material: Powder Coated Steel
Form Factor: Wall Mountable
Height: 63 cm
Width: 100.8 cm
Length: 70.1 cm
Weight (Approximate): 16.10 kg
Miscellaneous
Package Contents:

• Heavy-Duty Large-Screen Full-Motion TV Wall Mount
• Attachable bubble level
• Installation hardware with instructions

Application/Usage:

• Residential
• Office
• Hospitality
• Classroom
• Conference Room
• Digital Signage
• Commercial

Warranty
Limited Warranty: Lifetime
