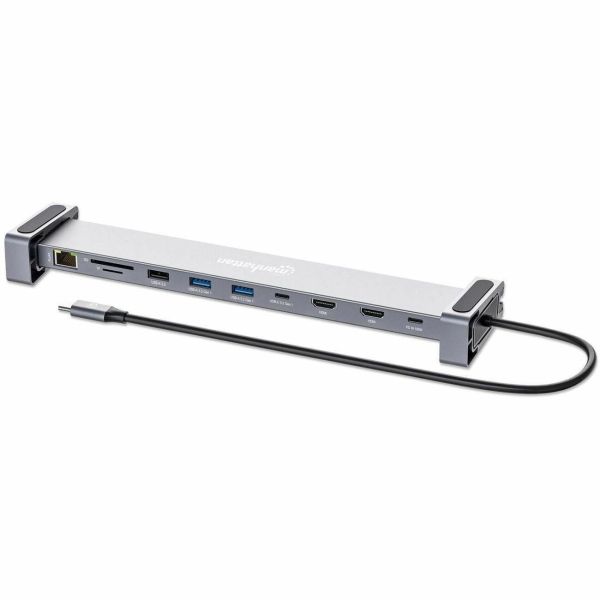

Manhattan USB-C PD 10-in-1 Dual-HDMI Monitor Docking Station / Multiport Hub

Marketing Information

Multiport Adapter / Docking Station for Laptop and MacBook® - use two 4K HDMI monitors with 10 connections to your device

Elevate your device's connectivity with the Manhattan 10-in-1 Multiport Adapter. This versatile docking station fills the gaps in your laptop or MacBook®, offering essential connections such as HDMI, Power Delivery, Ethernet, card reader, and USB ports.

Dual display connectivity in 4K without down-scaling

The two HDMI ports let you multitask on more monitors at once. While other dual monitor docking stations often need to reduce the fps (frames per second) to 30, this one will let you display in high-performance 4K@60Hz.

Versatile Connectivity fo...r Your Peripherals and Wired Network

You're also able to meet most connectivity needs with three USB-A ports that connect and charge compatible devices fast, as well as a SuperSpeed USB-C data-transfer port to connect high-bandwidth devices. Address the absence of wired network connectivity in most contemporary Ultrabooks™ and MacBooks® by utilizing the Gigabit RJ45 port for reliable 10/100/1000 Mbps speeds. Thanks to two slots for SD/microSD cards, you don't need an external card reader anymore.

Powerful Charging with up to 100 W

Charge your notebook with up to 100 W through the featured USB-C PD port. Simultaneously charge other mobile devices like tablets or smartphones through the USB-A connections. The Power Delivery feature intelligently determines the power requirements of compatible devices, ensuring safe charging, faster than standard chargers.

Seamless Phone-to-Screen Experience

Connect any Android 9 and later smartphone supporting video output over USBC DP Alt Mode. Enjoy your apps and media on a larger scale by watching videos or presenting slides directly from your phone to your monitor.

A Portable Companion for Your Travels

Encased in sturdy aluminum, this multiport adapter is designed to be your ideal travel companion. Compact enough to easily fit alongside your primary device in your computer bag or backpack, it ensures that connectivity is never compromised on the go. You can place your notebook on top of the docking station, saving desk space. The built-in cable is long enough to connect to any USB-C port on your laptop, whether it's on the left or right side of the device.

Features:

• Connects your laptop to your displays, network and peripherals while charging your devices
• Two HDMI ports with up to 4K@60Hz UHD (3840 × 2160) resolution on single- and dual-video output
• Uses Multi-Stream Transport (MST) for display modes on Windows® (Mirror or Fully Extended) and Mac® (Mirror or Extended Mirror only) One Gigabit Ethernet (10/100/1000) port for faster downloads, media streaming and gaming
• Charges your laptop with USB Power Delivery (PD) up to 100 W; requires an external PD charger - available from Manhattan
• Two USB 3.2 Gen 1 (formerly USB 3.0) Type-A ports with SuperSpeed transfer rates up to 5 Gbps and charging up to 4.5 W (5 V / 0.9 A)
• One USB 2.0 Type-A port with transfer rates up to 480 Mbps and charging up to 2.5 W (5 V / 0.5 A)

Specifications
Manufacturer: IC INTRACOM
Manufacturer Part Number: 190398
Manufacturer Website Address: http://www.icintracom.com
Brand Name: Manhattan
Product Name: USB-C PD 10-in-1 Dual-HDMI Monitor Docking Station / Multiport Hub
Product Type: Docking Station
Technical Information
Connectivity Technology: Wired
Charging Capability: Yes
Device Supported:

• Tablet
• Smartphone
• Monitor
• Notebook

Cable Length: 50 cm
Memory Card Reader: Yes
Memory Card Supported:

• SD
• microSD

Features:

• Power Delivery Pass-through
• Card Reader
• Compact
• Plug and Play

Number of Displays Supported: 2
Screen Mode Supported:

• 4K @ 60Hz
• VGA
• SVGA
• XGA
• Full HD
• WUXGA
• 4K @30Hz
• 4K

Supported Resolutions:

• 3840 x 2160
• 640 x 480
• 800 x 600
• 1024 x 768
• 1920 x 1080
• 1920 x 1200

Maximum Data Transfer Rate: 640 MB/s
Network & Communication
Ethernet Technology: Gigabit Ethernet
Interfaces/Ports
Host Interface: USB 3.2 (Gen 1) Type C
Total Number of USB Ports: 5
Number of USB 2.0 Ports: 1
Number of USB 3.2 Gen 1 Type-A Ports: 2
Number of USB Type-A Ports: 3
Number of USB Type-C Ports: 2
USB Type-A: Yes
USB Type-C: Yes
USB Type-C Detail: 1 x USB-C 24-pin, male , 1 x USB-C 24-pin, data only, female , 1 x USB-C 16-pin, Power Delivery, female
Network (RJ-45): Yes
Number of RJ-45 Ports: 1
Number of HDMI Outputs: 2
HDMI: Yes
HDMI Version: 2.0
USB Power Delivery: 100W
Software
Operating System Supported:

• Windows 7
• Windows 8.1
• Windows 10
• Windows 11
• ChromeOS
• macOS
• Android 9.0

Physical Characteristics
Color Family: Silver
Product Color: Silver
Form Factor: Portable
Height: 30 mm
Width: 60 mm
Weight (Approximate): 182 g
Miscellaneous
Package Contents:

• USB-C PD 10-in-1 Dual-HDMI Monitor Docking Station / Multiport Hub
• Instructions

Compatibility:

Compatible Products:

• Apple MacBook
• Google Pixel

Brand Compatibility:

• Apple
• Google

Environmental Compliance:

• Restriction of Hazardous Substances (RoHS)
• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Warranty
Limited Warranty: 3 Year
