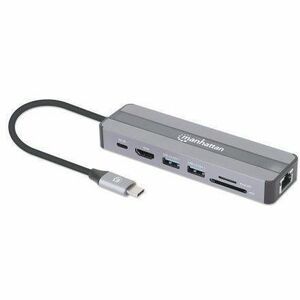

Manhattan USB-C 7-in-1 Docking Station with Power Delivery

Marketing Information
USB-C Docking Station with PD Charging - connect HDMI monitor, network, peripherals and (micro)SD cards to your device

Increase your productivity with this highly versatile multiport adapter from Manhattan that combines a 4K HDMI connection, a USB hub, a wired gigabit network link, device-power capability and card reader into one. This USB-C dock establishes a fast, simple and convenient link between newer USB Type-C equipped media sources (laptops, PCs, MacBooks, Chromebooks, computers, tablets, etc.) and existing HDMI displays (monitors, TVs and projectors) for 4K30Hz Ultra High Definition (UHD) images in either mirror- or extended-display mode.

Connections to all your peripherals

With two USB-A ports (5 Gbps transfer ...speeds) for mice, keyboards or flash drives, and two slots for SD/microSD cards, this docking station easily satisfies all your connectivity demands. Plus, its Gigabit RJ45 port provides 10/100/1000 Mbps connectivity to the wired network connection that’s missing in most modern Ultrabooks™ and MacBooks®.

Up to 87 W charging power with USB-C Power Delivery (PD)

The included USB-C PD port lets you charge your notebook with power up to 87 W while simultaneously charging your other mobile devices, such as smartphones or tablets, through the USB-A ports. The Power Delivery function also provides faster charging than standard chargers, since it determines the power needs of compatible devices and supplies it at the quickest and safest rate.

Take your phone to the big screen

Connect any Android 9 and later smartphone that supports video output over USB-C DP Alt Mode to enjoy your apps and media even more. Watch a video on your monitor or flip through the slides of your presentation - all from your phone.

A multiport adapter that's made to go where you go

Sturdy aluminum housing makes this multiport adapter the perfect travel companion. With its many connectivity options, it has a footprint of only 126 x 36 x 16 mm (4.96 x 1.42 x 0.63 in.), so it's small enough to fit in an outer notebook bag pocket.



Specifications
Manufacturer: IC INTRACOM
Manufacturer Part Number: 153928
Manufacturer Website Address: http://www.icintracom.com
Brand Name: Manhattan
Product Name: USB-C 7-in-1 Docking Station with Power Delivery
Product Type: Docking Station
Technical Information
Connectivity Technology: Wired
Device Supported:

• Tablet
• Mouse
• Flash Drive
• Smartphone
• Monitor
• TV
• Projector
• Keyboard
• Notebook
• Desktop PC

Memory Card Reader: Yes
Memory Card Supported:

• SD
• microSD

Screen Mode Supported: 4K
Supported Resolutions: 3840 x 2160
Maximum Data Transfer Rate: 640 MB/s
Network & Communication
Ethernet Technology: Gigabit Ethernet
Interfaces/Ports
Host Interface: USB Type C
Total Number of USB Ports: 4
Number of USB 3.2 Gen 1 Type-A Ports: 2
Number of USB Type-A Ports: 2
Number of USB Type-C Ports: 2
USB Type-A: Yes
USB Type-C: Yes
USB Type-C Detail: 1 x USB-C 24-pin, male, 1 x USB-C 24-pin, Power Delivery, female
Network (RJ-45): Yes
Number of RJ-45 Ports: 1
Number of HDMI Ports: 1
HDMI: Yes
HDMI Version: 1.4
USB Power Delivery: 87W
Software
Operating System Supported:

• Windows 7
• Windows 8.1
• Windows 10
• Windows 11
• ChromeOS
• macOS
• Android 9.0

Physical Characteristics
Color Family: Dual Colour
Product Color:

• Silver
• Black

Form Factor: Portable
Height: 16 mm
Width: 36 mm
Length: 126 mm
Weight (Approximate): 71 g
Miscellaneous
Package Contents:

USB-C 7-in-1 Docking Station with Power Delivery

Instructions

Compatibility: Compatible with all USB-C DP-Alt-Mode-supported desktops, notebooks and tablets including MacBook, Chromebook, Pixel and more
Brand Compatibility:

• Apple
• Google

Environmental Compliance:

• Restriction of Hazardous Substances (RoHS)
• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Warranty
Limited Warranty: 3 Year
