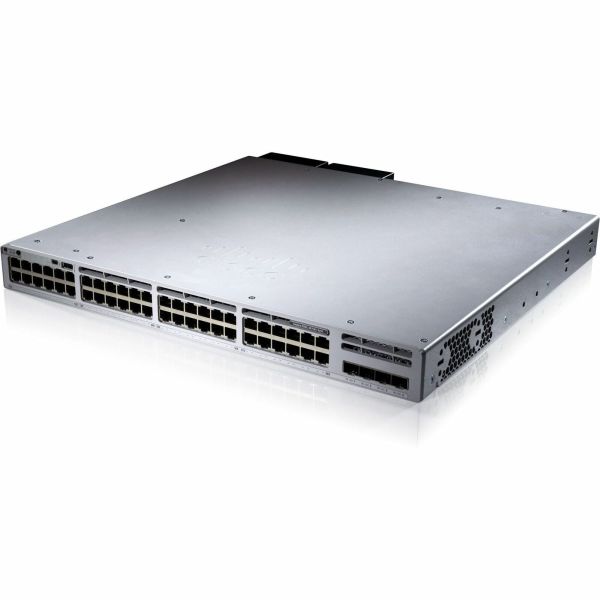

Meraki Catalyst C9300-48UXM-M Ethernet Switch

Marketing Information

The Catalyst 9300-M addresses the most demanding enterprise applications by combining the simplicity of the Meraki dashboard with powerful switching hardware. To satisfy high-bandwidth applications and the deployment of high-speed 802.11ax/wifi-6 access points, the Catalyst 9300-M provides multigigabit ports, 480G stacking, and modular 10/40G uplinks. The Catalyst 9300-M delivers resiliency with fast stack convergence and StackPower. The Catalyst 9300-M provides Adaptive Policy using an over-the-wire tag which segments traffic into security groups to deliver scalable security. The Catalyst 9300-M is integrated under the Meraki dashboard to provide a simply powerful solution to the most demanding wired access applications.

Adaptive Po...licy provides simple & scalable security policies to segment traffic using Security Groups. Security Groups are created in the dashboard using natural language such as "IOT device" & "Guest." The security policy intent (e.g., Permit or Deny) is then simply provisioned between Security Groups which results in the segmentation of each group's traffic. By making security policy management intuitive and scalable relative to legacy IP-address based Access Control Lists, Adaptive Policy empowers operators to confidently secure their network traffic independent of future network changes.

By pooling & distributing power across C9300-Ms using a series of StackPower cables, StackPower provides simple and resilient power distribution across the stack.

Specifications
Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: C930048UXMM
Manufacturer Website Address: http://www.cisco.com
Brand Name: Meraki
Product Line: Catalyst
Product Series: 9300-M
Product Model: C9300-48UXM-M
Product Name: Catalyst C9300-48UXM-M Ethernet Switch
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 48
Uplink Port: Yes
Modular: Yes
Stack Port: Yes
Network (RJ-45): Yes
Port/Expansion Slot Details:

• 36 x 2.5 Gigabit Ethernet Network
• 12 x 10 Gigabit Ethernet UPoE
• 1 x Uplink
• 2 x Stack

Media & Performance
Media Type Supported: Twisted Pair
Ethernet Technology:

• 2.5 Gigabit Ethernet
• 10 Gigabit Ethernet

Network Technology:

• 2.5GBase-T
• 10GBase-T

I/O Expansions
Total Number of Expansion Slots: 1.0
Expansion Slot Type: Uplink Module
Network & Communication
Layer Supported: 3
Networking Standards:

• IEEE 802.1p
• IEEE 802.1Q
• IEEE 802.1s
• IEEE 802.1ab
• IEEE 802.1ad
• IEEE 802.1x

Management & Protocols
Manageable: Yes
Power Description
PoE (RJ-45) Port: Yes
PoE Budget: 490 W
Frequency:

• 50 Hz
• 60 Hz

Power Source: Power Supply
Redundant Power Supply Supported: Yes
Number of Power Supplies Supported: 2
Number of Power Supplies Installed: 1
Power Consumption: 785.50 W
Physical Characteristics
Compatible Rack Unit: 1U
Form Factor: Rack-mountable
Height: 43.9 mm
Width: 444.5 mm
Depth: 563.9 mm
Weight (Approximate): 9.09 kg
Miscellaneous
Package Contents:

• Catalyst C9300-48UXM-M Ethernet Switch
• 1 x Default Power Supply
• Rack Mount Brackets and Screw Kit
• 3 x Pre-installed Fans

Application/Usage: Network
Certifications & Standards:

• FCC Part 15 (CFR 47) Class A
• ICES-003 Class A
• CISPR22 Class A
• CNS13438
• EN 300 386 V1.6.1
• EN 55022 Class A
• EN 61000-3-2
• EN61000-3-3
• KN 32
• TCVN 7189 Class A
• EN 55032
• CISPR 32 Class A
• V-2/2015.04
• V-3/2015.04
• VCCI-CISPR 32 Class A
• CISPR24
• EN 300 386 V1.6.1
• EN 55024
• KN35
• TCVN 7317
• CAN/CSA-C22.2 No. 60950-1
• UL 60950-1
• EN 60950-1
• IEC 60950-1
• AS/NZS 60950.1

Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: Lifetime
