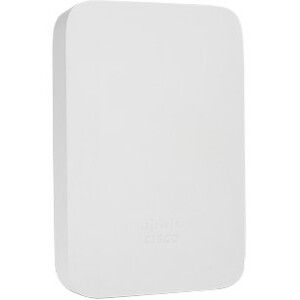

Meraki MR36H Wireless Access Point

Marketing Information

High Performance 802.11ax Wireless

The Cisco Meraki MR36H is a Dual-band, 802.11ax 2x2:2 Wall Switch Access Point with dedicated security, wired access ports and RF management radio as well as an integrated Bluetooth Low Energy beacon and scanning radio.

The MR36H provides a maximum of 1.7 Gbps* aggregate frame rate with concurrent 2.4 GHz and 5 GHz radios. A dedicated third radio provides real-time WIDS/WIPS with automated RF optimization, and a fourth integrated radio delivers Bluetooth scanning and beaconing as well as IoT solutions

With the combination of cloud management, high performance hardware, multiple radios, and advanced software features, the MR36H makes an outstanding platform for the most demandin...g of uses-including high-density deployments and bandwidth or performance-intensive applications like voice and high-definition video.

MR36H and Meraki Cloud Management

Management of the MR36H is performed through the Meraki cloud, with an intuitive browser-based interface that enables rapid deployment without timeconsuming training or costly certifications. Because the MR36H is self-configuring and managed over the web, it can be deployed at a remote location in a matter of minutes, even without on-site IT staff.

24x7 monitoring via the Meraki cloud delivers real-time alerts if a network encounters problems. Remote diagnostic tools enable immediate troubleshooting over the web so that distributed networks can be managed with a minimum of hassle.

The MR36H's firmware is automatically kept up to date via the cloud. New features, security fixes, and enhancements are delivered seamlessly over the web. This means no manual software updates to download or missing security patches to worry about.

Specifications
Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: MR36H-HW
Manufacturer Website Address: http://www.cisco.com
Brand Name: Meraki
Product Model: MR36H
Product Name: MR36H Wireless Access Point
Product Type: Wireless Access Point
Technical Information
Wireless LAN Standard: 802.11ax
Network Band: Dual Band
Frequency Band:

• 2.40 GHz
• 5 GHz

Wireless Transmission Speed: 1.70 Gbit/s
MIMO Technology: Yes
Beamforming Technology: Yes
Data Encryption: Yes
Encryption Standard:

• WEP
• WPA
• WPA2-PSK
• WPA2-ENT
• WPA3-Personal
• WPA3-ENT
• WPA3

Interfaces/Ports
Ethernet Technology: Gigabit Ethernet
Number of Network (RJ-45) Ports: 4
PoE (RJ-45) Port: Yes
Power Description
Power Consumption: 30 W
Physical Characteristics
Form Factor:

• Desktop
• Ceiling Mountable
• Wall Mountable
• Rail-mountable
• Plate Mountable

Antenna Form Factor: Internal
Height: 36.1 mm
Width: 249.9 mm
Depth: 119.9 mm
Weight (Approximate): 492 g
