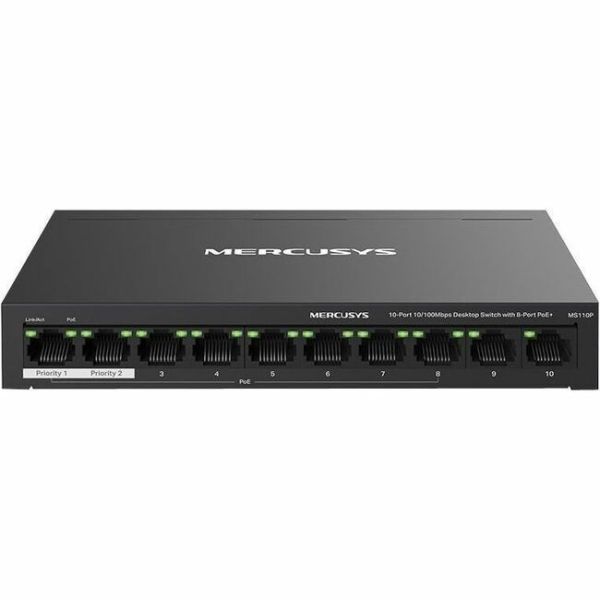

Mercusys 10-Port 10/100Mbps Desktop Switch with 8-Port PoE+

Marketing Information

10-Port 10/100Mbps Desktop Switch with 8-Port PoE+ | MS110P | Long-Range up to 250m | Durable Metal Casing |8 PoE+ Ports (65 W Budget) for Network Deployment

Ports 1-8 support PoE+, and each of them supports a maximum of 30 W and is compliant with the 802.3af/at Powered Devices. MS110P provides 2 ports without PoE+ for uplink devices, one of which is used to connect to the Internet and the other to connect to the NVR. The total 65 W PoE power budget for the 8× PoE+ ports enables a variety of uses, including surveillance for offices, dormitories, and small businesses. IP cameras, access points, IP phones, PCs, video recorders, and more are all completely compatible with it.

No Fuss

• No need for elec...tricians; simplify installation and deployment.

Cost-Efficiency

• Getting rid of extra cables and power adapters will save money on infrastructure.

Flexibility

• Deployment in complex situations is made possible by more placement possibilities.

Power Management

• Improves power usage while intelligently protecting your gadgets from power surges.

IEEE 802.3af/at

• PoE ports compliant with the 802.3af/at Powered Devices.

Long-Range up to 250 m with Extend Mode

Extend Mode increases PoE transmission distance to 250 m. MS110P has 8 long-range ports with PoE+. Turn on the Extend Mode and make it ideal for installing surveillance cameras over wide areas.

Traffic Separation

With only one click, isolation mode divides traffic for ports 1-8 to prevent snooping/tampering and isolate broadcast storms for greater protection. MS110P provides 2× uplink ports when turning on the isolation mode.

Port Prioritization

Prioritizing the data of specific ports would ensure the high quality of delicate applications, such as voice and video, in crucial business domains.

PoE Auto Recovery

The switch continuously detects data transmission with PoE-powered devices (PD). When a PD stops sending data packets to the switch for an extended length of time, the switch will reboot it automatically.

Plug and Play

MS110P offers auto-negotiation (10/100 M) and automated MDI/MDIX. There is no additional configuration needed. It is simple to use and saves time and effort.250

Specifications
Manufacturer: TP-LINK Technologies Co., Ltd
Manufacturer Part Number: MS110P
Manufacturer Website Address: http://www.tp-link.com
Brand Name: Mercusys
Product Model: MS110P
Product Name: 10-Port 10/100Mbps Desktop Switch with 8-Port PoE+
Product Type: Ethernet Switch
Technical Information
Features: Fanless
Interfaces/Ports
Total Number of Network Ports: 10
Uplink Port: Yes
Network (RJ-45): Yes
Port/Expansion Slot Details:

• 8 x Fast Ethernet PoE+
• 2 x Fast Ethernet Uplink

Media & Performance
Media Type Supported: Twisted Pair
Ethernet Technology: Fast Ethernet
Network Technology: 10/100Base-T
Network & Communication
Layer Supported: 2
Networking Standards:

• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3i
• IEEE 802.3af
• IEEE 802.3at
• IEEE 802.3x

Power Description
PoE (RJ-45) Port: Yes
PoE Budget: 65 W
Input Voltage: 53.5 V DC
Power Source:

• Power Adapter
• PoE+
• DC

Power Consumption: 77.52 W
Physical Characteristics
Product Material: Metal
Form Factor:

• Desktop
• Wall Mountable

Height: 27.9 mm
Width: 170.2 mm
Depth: 99.1 mm
Miscellaneous
Application/Usage:

• Printer
• IP Camera
• Gaming
• Small Office
• IP Phone
• Video Surveillance
• Surveillance
• Business
• Wireless Access Point
