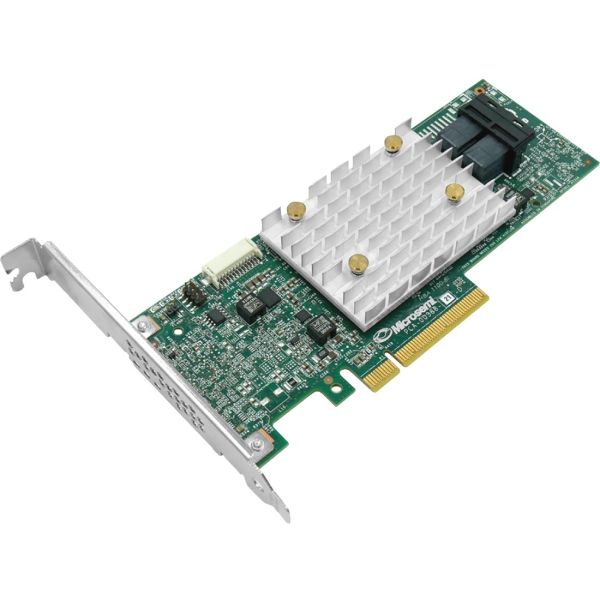

Microchip Adaptec HBA 1100-8i Single

Marketing Information
The 12 Gbps Adaptec HBA 1100-8i Host Bus Adapter has 8 internal SAS/SATA ports in a x8 PCIe Gen 3 low-profile, MD2 form factor. Quality and reliability are assured through the unified hardened Smart Storage stack, now deployed to over 30 million servers. Built on the Microchip SmartIOC 2100 SAS/SATA protocol controller, HBA 1100-8i adapters can aggregate the performance of devices to the limits of the PCIe Gen 3 host bus at 6.6 Gbps, and achieve up to 1.5M IOPS without additional overhead or latency. The HBA 1100 adapters also have 40 percent power savings compared to previous generations, and significant power advantages versus competing solutions.

The HBA 1100, with its broad operating system support and ecosystem compatibil...ity, is easy to implement and scale, and the unified maxView management tools and drivers across the Microchip HBA, RAID, and expander solutions enable easy manageability across the entire product line. HBA 1100 adapters are ideal solutions that support SAS/SATA HDDs, tape devices, and SSDs.
Specifications
Manufacturer: Microchip Technology Inc.
Manufacturer Part Number: 2293200-R
Manufacturer Website Address: http://www.microchip.com
Brand Name: Microchip Adaptec
Product Series: 1100
Product Model: AHA-1100-8i
Product Name: HBA 1100-8i Single
Product Type: SAS Controller
Technical Information
Host Interface: PCI Express 3.0 x8
Controller Type: 12Gb/s SAS
Interfaces/Ports
Total Number of SAS Ports: 8
Number of SAS Ports (Internal): 8
SAS Connector Details: 2 x SFF-8643
Physical Characteristics
Height: 64.3 mm
Length: 167.6 mm
Form Factor: Plug-in Card
Weight (Approximate): 400 g
Miscellaneous
Platform Supported:

• PC
• Linux

Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Country of Origin: Singapore
