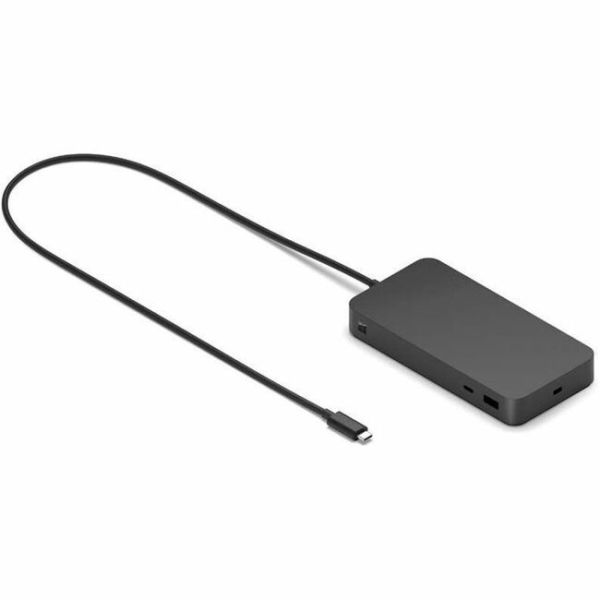

Microsoft Surface Thunderbolt 4 Dock

Marketing Information

So powerful, it's effortless

Get the fast, flexible connectivity you need for work and play, with performance you can count on.

USB4/Thunderbolt™ 4 high-speed ports

Maximise performance by plugging in the USB4/Thunderbolt 4 cable to power your device, connect up to two 4K monitors at 60Hz, and transfer data and files at up to 40Gbps-four times faster than USB 3.

The charging power you need

Easily connect and power your laptop, taking it from low to full battery in about two and a half hours with up to 96 watts of power passthrough for extra power to charge your phone and accessories.

Cross-device compatibility

Surface Thunderbolt™ 4 Dock features certifie...d USB4/Thunderbolt™ 4 host and ports for standardised connectivity with Surface and other USB4/Thunderbolt™ 4-compatible devices.

Inclusive and thoughtful design | Built to empower people of all abilities

Be creative, productive and connected with versatile rear-facing ports with raised tactile indicators for users with low vision and without vision to more easily identify ports.

Designed with recycled materials

Surface Thunderbolt™ 4 Dock and power supply unit enclosures (excluding the AC cable) are attributed to 20% ocean-bound plastic and features lighter materials than our previous docks. Single-use plastics have been removed from Surface Thunderbolt™ 4 Dock packaging, making it about 99% recyclable in OECD countries

Specifications
Manufacturer: Microsoft Corporation
Manufacturer Part Number: T8I00005
Manufacturer Website Address: http://www.microsoft.co.uk
Brand Name: Microsoft
Product Name: Surface Thunderbolt 4 Dock
Product Type: Docking Station
Technical Information
Connectivity Technology: Wired
Charging Capability: Yes
Device Supported:

• Notebook
• Monitor
• Desktop PC

Cable Length: 80 cm
Memory Card Reader: No
Features: Power Delivery Pass-through
Management Features:

• MAC Address Pass-through
• Wake-on-LAN

Number of Displays Supported: 2
Screen Mode Supported: 4K @ 60Hz
Supported Resolutions: 3840 x 2160
Maximum Data Transfer Rate: 5 GB/s
Security Slot Type: Kensington Security Slot
Network & Communication
Ethernet Technology: 2.5 Gigabit Ethernet
Interfaces/Ports
Host Interface: Thunderbolt 4
Number of USB 3.2 Gen 2 Type-A Ports: 3
Number of USB Type-A Ports: 3
Number of USB Type-C Ports: 3
USB Type-A: Yes
USB Type-C: Yes
USB Type-C Detail: 2 x rear-facing USB-CFootnote® (USB 4 Thunderbolt™ 4, video display enabled, 15 W), 1 x front-facing USB-CFootnote® (USB 4 Thunderbolt™ 4, video display enabled, 15 W)
Network (RJ-45): Yes
Number of RJ-45 Ports: 1
Number of Network (RJ-45) Ports: 1
Headphone/Microphone Combo Port: Yes
Thunderbolt: Yes
USB Power Delivery: 96W
Power Description
Maximum Power Supply Wattage: 165 W
Power Source Type: Power Supply
Physical Characteristics
Color Family: Black
Product Color: Black
Height: 150 mm
Width: 75 mm
Depth: 21.3 mm
Weight (Approximate): 408.2 g
Miscellaneous
Package Contents:

• Surface Thunderbolt 4 Dock
• 165 W Power Supply

Kensington Security Slot: Yes
Compatibility:

Microsoft Products:

• Surface Laptop 5
• Surface Laptop Studio
• Surface Pro 8
• Surface Pro 9 (Intel/Wi-Fi)
• Surface Pro 9 with 5G
• Surface Pro 7+
• Surface Pro 7
• Surface Pro X
• Surface Laptop 4
• Surface Laptop 3
• Surface Laptop Go 2
• Surface Laptop Go
• Surface Go 3
• Surface Go 2
• Surface Book 3
• Surface Studio 2+ (no charging)

Brand Compatibility: Microsoft
Warranty
Limited Warranty: 1 Year
