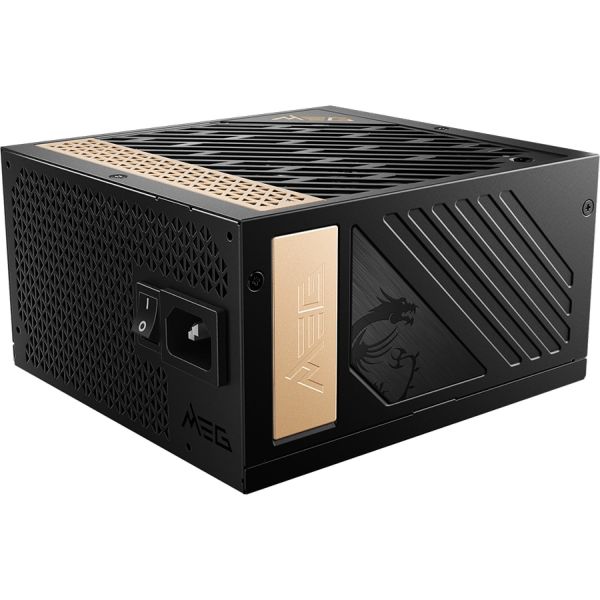

MSI MEG Ai1300P PCIE5 1300W Power Supply

Marketing Information

THE REVELATION OF LEGEND
The MEG series is revealed as a legend that represents the ultimate elegance in gaming. With the determination of transcending current gaming products, the flagship models push the limits of what an extreme gaming series can be.

The mysterious triangle is a symbolic icon of MEG's infinite power, with the triangle's slope further extending the three pillars of MEG's core characteristics: legendary, loyalty, and luxurious.

ATX 3.1 READY
It has an output port that is compliant with PCIe 5.1 and Intel PSDG (Power Supply Design Guide) ATX 3.1, also the MEG Ai1300P PCIE5 power supply can hold up to 2x total power excursion and 3x GPU power excursion.

LEVEL UP YOUR GAME
.../>With native 16 PIN PCIe connector this power supply is ready for Nvidia® GeForce RTX® 40 Series graphics cards. It can freely pipe up to 600W of power to PCIe 5.1 graphics cards.

PLATINUM CERTIFIED
The efficiency of your power supply directly influences your system's performance and your power consumption. The 80 PLUS and Cybenetics PLATINUM certified promises lower energy consumption and higher efficiency.

Specifications
Manufacturer: MSI
Manufacturer Part Number: MEG AI1300P PCIE5
Manufacturer Website Address: http://www.msi.com
Brand Name: MSI
Product Series: MEG
Product Model: Ai1300P PCIE5
Product Name: MEG Ai1300P PCIE5 1300W Power Supply
Product Type: Power Supply
Technical Information
Specification Compliance: ATX 3.1
Efficiency: 92%
Power Factor Correction (PFC): Active
Number of Fans: 1
Fan Bearing Type: Hydro Dynamic Bearing
Fan Diameter: 120 mm
Protection Type:

• Over Current
• Over Temperature
• Over Voltage
• Over Power
• Under Voltage
• Short Circuit

Modular: Yes
Device Supported: PC
Power Description
Number of +12V Rails: 1
Input Voltage:

• 120 V AC
• 230 V AC

Input Voltage Range: 100 V AC - 240 V AC
Output Voltage:

• 5 V DC @ 25 A
• 3.3 V DC @ 25 A
• 12 V DC @ 108.3 A
• -12 V DC @ 0.3 A
• 5 VSB @ 3 A

Input Frequency: 50~60 Hz
Interfaces/Ports
Number of SATA Power Connectors: 16
PCI Express Connector: Yes
Number of (6+2 pin) PCI Express Power Connectors: 8
Number of (4+4 pin) CPU Power Connectors: 1
Number of 4-pin Molex Power Connectors: 1
Physical Characteristics
Form Factor: Internal
Height: 160 mm
Width: 150 mm
Depth: 86 mm
Weight (Approximate): 3.45 kg
