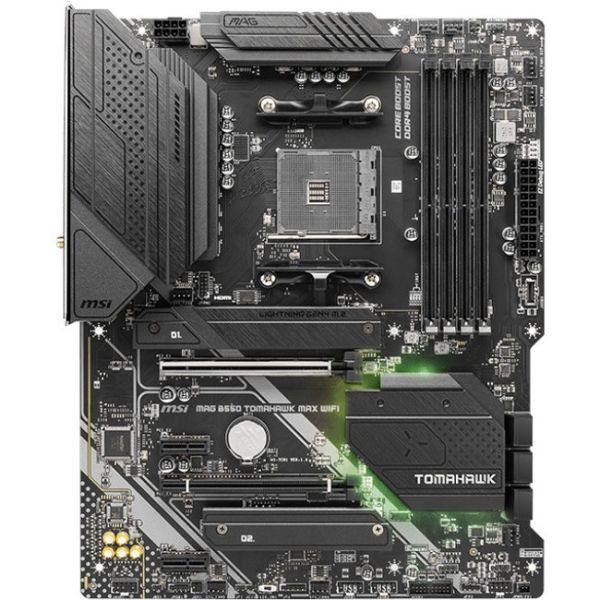

MSI B550 TOMAHAWK MAX WIFI Desktop Motherboard

Marketing Information

Conquer the Battlefield

The MAG series was born through rigorous quality testing and designed to be a symbol of sturdiness and durability. Focused on providing the best user experience, the MAG series has a simple installation process coupled with a friendly user interface making it the best choice for entry level gamers.

THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE

With more cores' processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end CPU to run in full speed with MSI motherboards.

LIGHTNING GEN 4 M.2

Utilizing 3rd Gen Ryzen processors, MSI B550 motherboard...s feature latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed.

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK

2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.

Specifications
Manufacturer: MSI
Manufacturer Part Number: MAGB550TOMAHAWKMAXWIFI
Manufacturer Website Address: http://www.msi.com
Brand Name: MSI
Product Line: MAG
Product Model: B550 TOMAHAWK MAX WIFI
Product Name: B550 TOMAHAWK MAX WIFI Desktop Motherboard
Product Type: Desktop Motherboard
Processor & Chipset
Chipset Manufacturer: AMD
Chipset Model: B550
Total Processor Supported: 1
Processor Socket: Socket AM4
Processor Supported:

• Ryzen
• Ryzen 5
• Ryzen 3

Multi GPU Supported: CrossFire
Memory
Number of Memory Slots: 4
Memory Form Factor:

• DIMM
• UDIMM

Maximum Memory Supported: 128 GB
Memory Technology: DDR4 SDRAM
Memory Speed Supported:

• 5100 MHz
• 5000 MHz
• 4866 MHz
• 4800 MHz
• 4600 MHz
• 4533 MHz
• 4400 MHz
• 4300 MHz
• 4266 MHz
• 4200 MHz
• 4133 MHz
• 4000 MHz
• 3866 MHz
• 3733 MHz
• 3600 MHz
• 3466 MHz
• 3400 MHz
• 3333 MHz
• 3300 MHz
• 3200 MHz
• 3000 MHz
• 2933 MHz
• 2666 MHz
• 2400 MHz
• 2133 MHz

I/O Controller
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels:

• 0
• 10
• 1

Video
Onboard Video: CPU Dependent Video
Audio
Audio Channels: 7.1
Network & Communication
Bluetooth: Yes
Bluetooth Standard: Bluetooth 5.2
Gigabit Ethernet: Yes
2.5Gigabit Ethernet: Yes
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac/ax
I/O Expansions
Total Number of Expansion Slots: 4
Total Number of PCI Express Slots: 4
Number of PCI Express x1 Slots: 2
Number of PCI Express x16 Slots: 2
Interfaces/Ports
Total Number of USB Ports: 6
Number of USB 2.0 Ports: 2
Number of USB 3.2 Gen 1 Type-A Ports: 2
Number of USB 3.2 Gen 2 Type-A Ports: 1
Number of USB 3.2 Gen 2 Type-C Ports: 1
S/PDIF: Yes
HDMI: Yes
HDMI Version: 2.1
DisplayPort: Yes
Number of Network (RJ-45) Ports: 1
Onboard Interfaces
Number of SATA Interfaces: 6
Number of M.2 Interfaces: 2
Total Number of Onboard USB Ports: 7
Number of Onboard USB 2.0 Ports: 4
Physical Characteristics
Form Factor: ATX
Width: 304.8 mm
Depth: 243.8 mm
