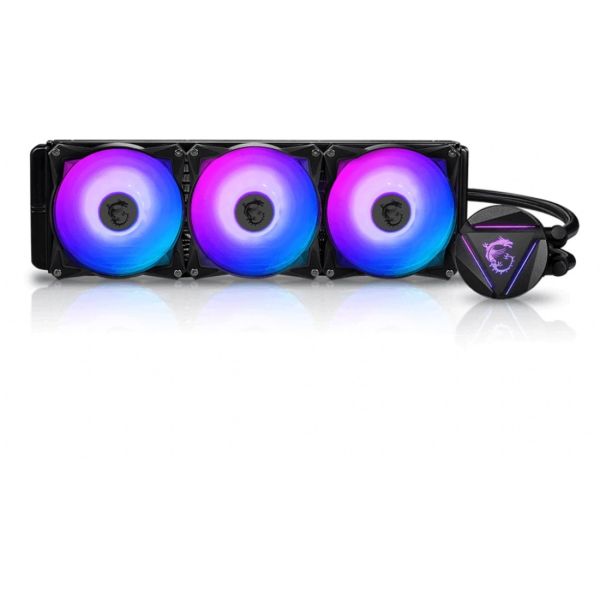

MSI MAG CORELIQUID 360R V2 Cooling Fan/Radiator/Water Block/Pump

Marketing Information

CONQUER THE BATTLEFIELD

The MAG series was born through rigorous quality testing and designed to be a symbol of sturdiness and durability. Focused on providing the best user experience, the MAG series has a simple installation process coupled with a friendly user interface making it the best choice for entry level gamers.

The newly introduced MAG CORELIQUID has everything you're looking for in a liquid cooler, ranging from quality materials that provide reliable durability to heat dissipation technologies that are extremely effective. Users can even enjoy perks like ARGB lighting and a 270-degree rotating blockhead that is simple to use. On top of that, the blockhead boasts a unique irregular aesthetic that is both sty...lish and artistic. Every single component of the MAG CORELIQUID is designed with the end goal in mind: to provide effective cooling without any compromise.

ROTATABLE BLOCKHEAD

Mount the cold plate at any orientation, turn the blockhead up to 270 degrees, and keep it upright.

RADIATOR PUMP DESIGN

The pump has been integrated into the radiator for sound dampening and noise reduction. Additionally, placing the pump into the radiator also increases the pump's life expectancy by moving it away from the heat source.

LGA 1700 COMPATIBLE

The MAG CORELIQUID R Series liquid cooler provides out of box support for LGA 1700.

PUMP MOTOR RESONANCE ELIMINATION

A durable three phase motor at the core of the pump generates minimal vibrations for long-lasting operation.

HIGH THERMAL DISSIPATION

A split pathway through the radiator rapidly dissipates heat, cooled liquid is then pumped back into the loop.

EVAPORATION PROOF TUBING

Constructed with three layers of netted plastic tubing and a reinforced mesh exterior.

DIY 2.0 - INTEGRATING WITH THE SYSTEM ENVIRONMENT

Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.

• FOR CPU COOLER
• FOR WATERBLOCK COOLER
• FOR TOP SYSTEM FAN
• FOR FRONT SYSTEM FAN
• FOR REAR SYSTEM FAN

MORE SILENCE THAN EXPECTED

MAG CORELIQUID 240R V2's noise level is significantly lower than that of competitor's by 10%.

Specifications
Manufacturer: MSI
Manufacturer Part Number: MAG CORELIQUID 360R V2
Manufacturer Website Address: http://www.msi.com
Brand Name: MSI
Product Line: MAG CORELIQUID
Product Model: 360R V2
Product Name: MAG CORELIQUID 360R V2 Cooling Fan/Radiator/Water Block/Pump
Product Type: Cooling Fan/Radiator/Water Block/Pump
Fan Information
Number of Fans: 3
Fan Bearing Type: Duo Ball Bearing
Fan Speed (Min): 500 rpm
Fan Speed (Max): 2000 rpm
Minimum Airflow: 36.75m³/h
Maximum Airflow: 133.76m³/h
Noise Levels (A-Weighted): 34.3 dB(A)
LED Color: ARGB
Maximum Air Pressure: 2.39mmH2O
Heatsink Information
Compatible Intel Socket:

• H3 LGA-1150
• H4 LGA-1151
• H2 LGA-1155
• H LGA-1156
• LGA-1200
• LGA-1700
• B LGA-1366
• R LGA-2011
• LGA 2011-v3
• R4 LGA-2066

Compatible AMD Socket:

• AM4
• AM2+ PGA-940
• AM2 PGA-940
• AM3+
• AM3 PGA-941
• FM1
• FM2
• FM2+
• TR4
• sTRX4
• SP3

Interfaces/Ports
Connectors:

• 3-Pin
• 4-Pin (PWM)

Power Description
Rated Current: 150 mA
Physical Characteristics
Radiator Material: Aluminium
Maximum Fan Diameter: 120 mm
Fan Height: 120 mm
Fan Width: 120 mm
Fan Depth: 25 mm
Miscellaneous
Compatibility: 11TH GEN INTEL SERIES CPU:

• i9-11900K/KF
• i7-11700K/KF

10TH GEN INTEL SERIES CPU:

• i9-10980XE
• i9-10940X
• i9-10920X
• i9-10900X
• i9-10900K/KF
• i7-10700K/KF

AMD Ryzen™ 3000 SERIES CPU:

• R9-3950X
• R9-3900X/XT
• R7-3800X/XT

AMD Ryzen™ 5000 SERIES CPU:

• R9-5950X
• R9-5900X
• R7-5800X

Application/Usage: Processor
