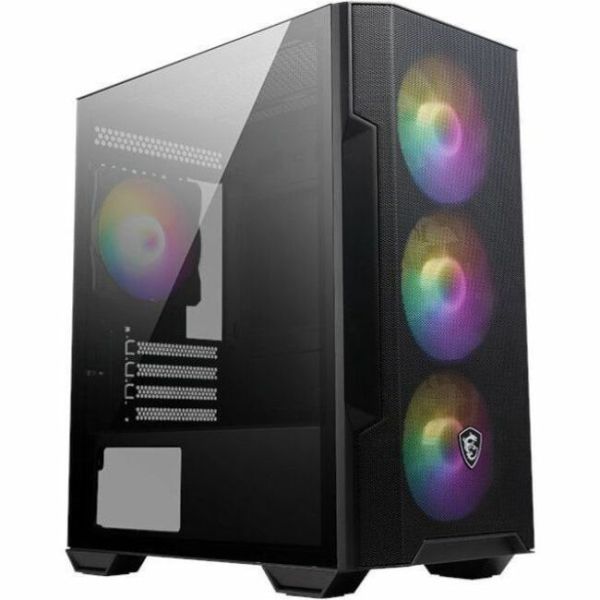

MSI MAG FORGE M100R

Marketing Information

MESH CERTIFIED MAKES IT WORK

The front mesh panel allows air to flow into the case easily without obstruction, providing the best system cooling performance. The micro-atx chassis provide small footprint but big perfromance.

HEAT DISSIPATION

You don't need to worry about system cooling with the help of the gaming cases.

• OPTIMIZED AIRFLOW
• Components Clearance

OPTIMIZED AIRFLOW

The MAG FORGE M100 Series is optimized to provide generous and effective airflow for system cooling. The MAG FORGE M100 Series can mount up to 6 fans.

COMPONENTS CLEARANCE

FAN SUPPORT

RADIATOR SUPPORT

HARDWARE COMPATIBILITY

The gaming c...ases offers extensive support for the installation of your hardware components.

• STORAGE YOU NEED
• Motherboard Support

STORAGE YOU NEED

Configure your own storage layout and install up to 3x2.5"+1x 3.5" or 2x 2.5" + 2x 3.5" storages.

3 x 2.5" + 1 x 3.5"

or

2 x 2.5" + 2 x 3.5"

MOTHERBOARD SUPPORT

EASY TO INSTALL

The gaming case has many features that make the installation process all the easier.

• 1 to 6 ARGB CONTROL BOARD
• 1-TO-4 FAN CABLE

1 TO 6 ARGB CONTROL BOARD

User can intuitively control & switch 9 lighting effects through the LED switch button.

1-TO-4 FAN CABLE

Use the 1-to-4 Fan Cable to create more possibilities for adding more fans to your system.

FANCY APPEARANCE

Build and display the coolest PC with controllable ARGB lighting.

• TEMPERED GLASS WINDOW
• INSTA-LIGHT LOOP BUTTON
• ARGB SHOWROOM

TEMPERED GLASS WINDOW

The 3mm tempered glass window offers the best durability and system accessibility.

INSTA-LIGHT LOOP BUTTON

Quickly control the fan and front LED strip's lighting effects with Insta-Light Loop at the touch of a button. Click through the profiles at ease and choose a favorite.

ARGB SHOWROOM

Create your own ARGB battle station with the MAG FORGE M100R, fully supported by MSI Mystic Light.

Specifications
Manufacturer: MSI
Manufacturer Part Number: MAGFORGEM100R
Manufacturer Website Address: http://www.msi.com
Brand Name: MSI
Product Line: MAG FORGE 100R
Product Name: MAG FORGE M100R
Product Type: Gaming Computer Case
Technical Information
Motherboard Supported:

• Micro ATX
• Mini ITX

Number of Fans Supported: 6
Number of Fans Installed: 4
Fan Size Supported: 120 mm
Installed Fan Size: 120 mm
Features:

• Reset Button
• LED Button
• Dust Filter

Bays
Number of Internal 3.5" Bays: 1
Number of Internal 2.5" Bays: 2
Number of Internal 2.5"/3.5" Bays: 1
I/O Expansions
Total Number of Expansion Slots: 4
Interfaces/Ports
Total Number of USB Ports: 3
USB Port Details:

• 1 x USB 3.2 Gen 1 Type-A
• 2 x USB 2.0 Type-A

Front USB: Yes
Total Number of Audio In Ports: 1
Front Audio In: Yes
Total Number of Audio Out Ports: 1
Front Audio Out: Yes
Microphone: Yes
Physical Characteristics
Color Family: Black
Product Color: Black
Product Material:

• Mesh
• Tempered Glass

Cooler Type: Fan Cooler
Form Factor: Micro Tower
Maximum CPU Cooler Height: 160 mm
Maximum PSU Length: 300 mm
Maximum GPU Length: 300 mm
Height: 423 mm
Width: 200 mm
Depth: 388 mm
Weight (Approximate): 4.14 kg
