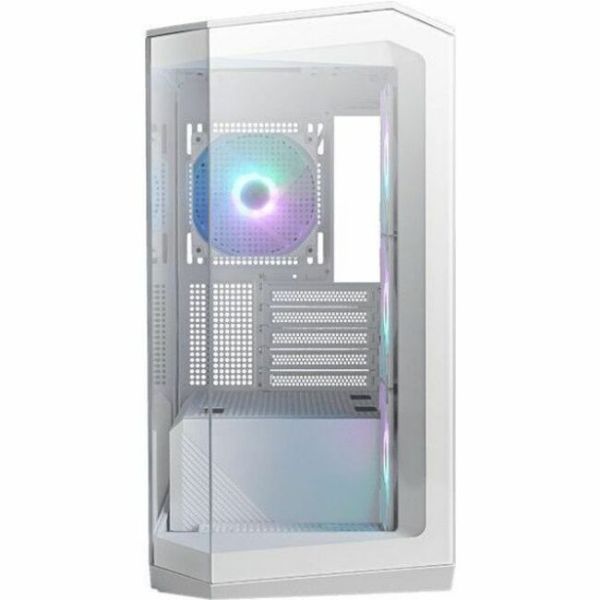

MSI MAG PANO M100R PZ Gaming Computer Case

Marketing Information

To meet the desire to show the ARGB PC build, the MAG PANO M100 Series comes with a 270-degree panoramic display, get more enhancement of aesthetically pleasing and cleanliness, supports a back-connect motherboard, and comes with the reverse-blade fan on the side, a 1-to-4 ARGB-PWM control board to let user organize cables easily.

HARDWARE COMPATIBILITY

The gaming cases offers extensive support for the installation of your hardware components.

EASY TO INSTALL

The gaming case has many features that make the installation process all the easier.

BETTER TOGETHER

Synergize the MAG PANO M100R PZ series with a compatible MSI motherboard through bridging with a USB 3.2 Gen 2x2 Type-C port for high s...peed data transmission.

Specifications
Manufacturer: MSI
Manufacturer Part Number: MAG PANO M100R PZ WHITE
Manufacturer Website Address: http://www.msi.com
Brand Name: MSI
Product Line: MAG PANO M100R PZ
Product Name: MAG PANO M100R PZ Gaming Computer Case
Product Type: Gaming Computer Case
Technical Information
Motherboard Supported:

• Micro ATX
• ITX
• Mini ITX

Number of Fans Supported: 10
Number of Fans Installed: 4
Fan Size Supported:

• 120 mm
• 140 mm

Installed Fan Size: 120 mm
Features:

• Dust Filter
• Cable Management
• LED Button

Window Panel: Yes
Bays
Number of Internal 2.5" Bays: 1
Number of Internal 2.5"/3.5" Bays: 1
I/O Expansions
Total Number of Expansion Slots: 5
Interfaces/Ports
Total Number of USB Ports: 2
USB Port Details:

• 1 x USB 3.2 Gen 1 Type-A
• 1 x USB 3.2 Gen 2x2 Type C

Front USB: Yes
Total Number of Audio In Ports: 1
Front Audio In: Yes
Total Number of Audio Out Ports: 1
Front Audio Out: Yes
Microphone: Yes
Physical Characteristics
Color Family: White
Product Color: White
Product Material: Tempered Glass
Cooler Type: Fan/Liquid Cooler
Form Factor: Mid-tower
Maximum CPU Cooler Height: 175 mm
Maximum PSU Length: 200 mm
Maximum GPU Length: 390 mm
Height: 405 mm
Width: 235 mm
Depth: 440 mm
Weight (Approximate): 8.66 kg
