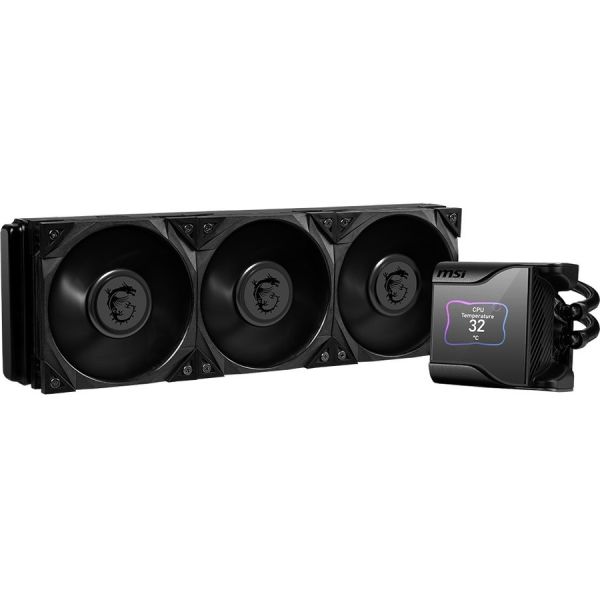

MSI MEG CORELIQUID S360 Cooling Fan/Radiator/Water Block/Pump

Marketing Information
The MEG CORELIQUID S Series is here to provide the ultimate silence cooling. It is equipped with MSI's innovative MEG SILENT GALE P14 silent gaming fan and supports 0 rpm fan mode. The 2.4" IPS display can also help you see a conglomerate of hardware information or customizable graphics and videos. The MEG CORELIQUID S Series descends from the top, and you just can't hear it coming.

SILENT COOLING

MSI's MEG SILENT GALE P14 provides sufficient airflow to the radiator for cooling while maintaining low noise levels.

MEG SILENT GALE P14
The MEG SILENT GALE P14 is MSI's innovative silent fan designed to generate the most silent airflow.

CONCENTRATED COOLING PERFORMANCE

A 60mm fan ...is placed within the water block to help dissipate heat for the M.2 SSD, CPU VRMs, and surrounding components.

FAN 0 RPM

The MEG SILENT GALE P14 and the water block fan support 0% RPM to ensure zero noise under low temperatures.

2.4" CUSTOMIZABLE IPS DISPLAY

The MEG CORELIQUID S Series comes with a 2.4" IPS display capable of displaying hardware information, GIF, MP4, photos, texts, and live weather information.

• Hardware Monitor
• Video / Image
• System Clock
• Live Weather

TOTAL CONTROL IN YOUR HANDS

Everything ranging from MEG CORELIQUID S Series' fan speed to the IPS display can be adjusted through the MSI Center.

LGA 1700 COMPATIBLE

The MEG CORELIQUID S Series liquid cooler provides out of box support for LGA 1700.

EVAPORATION PROOF TUBING

Constructed with three layers of netted plastic tubing and a reinforced mesh exterior.

Specifications
Manufacturer: MSI
Manufacturer Part Number: MEG CORELIQUID S360
Manufacturer Website Address: http://www.msi.com
Brand Name: MSI
Product Line: MEG CORELIQUID
Product Model: S360
Product Name: MEG CORELIQUID S360 Cooling Fan/Radiator/Water Block/Pump
Product Type: Cooling Fan/Radiator/Water Block/Pump
Fan Information
Number of Fans: 3
Fan Bearing Type: Hydro Dynamic Bearing
Fan Speed (Min): 0 rpm
Fan Speed (Max): 2000 rpm
Maximum Airflow: 95.48m³/h
Noise Levels (A-Weighted): 22.7 dB(A)
Fan Life: 5.7 Year
Maximum Air Pressure: 2.21mmH2O
Heatsink Information
Compatible Intel Socket:

• H LGA-1156
• H4 LGA-1151
• H2 LGA-1155
• LGA-1700
• LGA-1200
• H3 LGA-1150
• R LGA-2011
• R4 LGA-2066
• LGA 2011-v3

Compatible AMD Socket:

• AM4
• FM2+
• FM1
• FM2
• AM3+
• TR4
• sTRX4
• SP3
• AM2+ PGA-940
• AM2 PGA-940
• AM3 PGA-941

Power Description
Rated Current: 400 mA
Physical Characteristics
Radiator Material:

• Copper
• Aluminium

Maximum Fan Diameter: 120 mm
Radiator Height: 27 mm
Radiator Width: 394 mm
Radiator Depth: 120 mm
Fan Height: 120 mm
Fan Width: 120 mm
Fan Depth: 25 mm
Water Block Height: 54 mm
Water Block Width: 95 mm
Water Block Depth: 95 mm
Miscellaneous
Application/Usage:

• Processor
• Solid State Drive
